917.250550 - Craftsman Lawn Tractor (1999 & Before) CRANKCASE Parts Diagram

Lawn Tractor

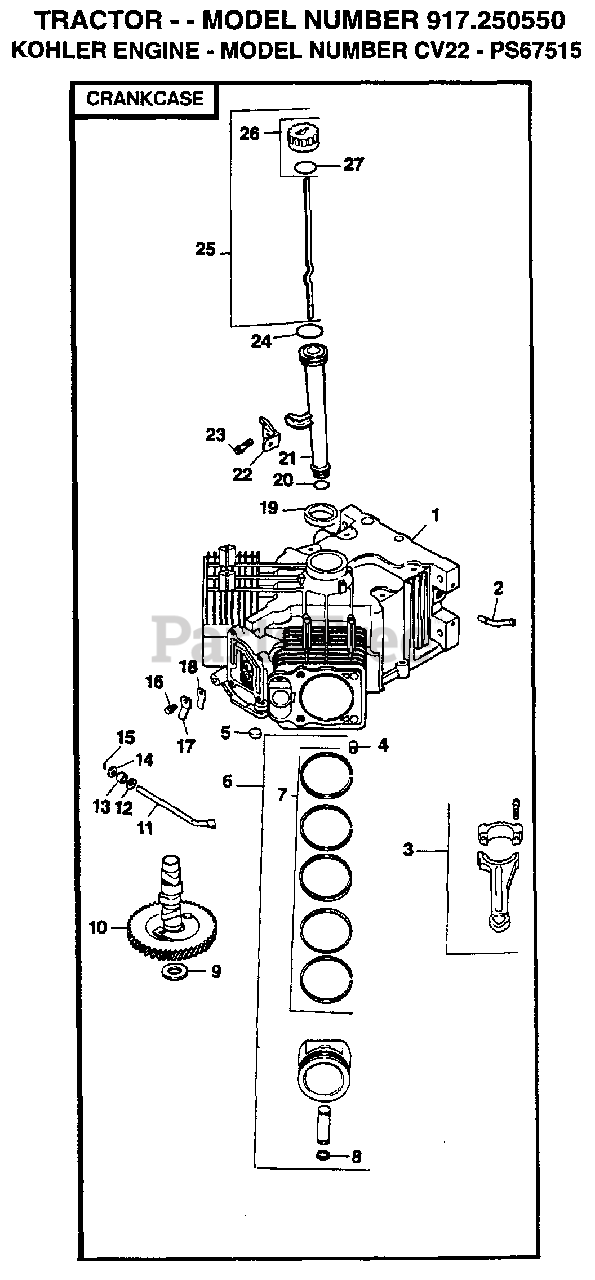

CRANKCASE Parts Diagram

  • Title
1

REFER TO IMAGE

$

$

Not available

$

$

Not available

3

Electrolux/AYP 24-067-01

CONNECTING ROD

$

$

Not available

3

Electrolux/AYP 24-067-02

CONNECTING ROD

$

$

Not available

4

Electrolux/AYP 12-380-03

PIN, DOWEL LOCATING

$

$

Not available

$

$

Not available

6

Electrolux/AYP 24-874-01

PISTON WITH RING SET

$

$

Not available

6

Electrolux/AYP 24-874-02

PISTON WITH RING SET

$

$

Not available

6

Electrolux/AYP 24-874-03

PISTON WITH RING SET

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

8

Electrolux/AYP 24-018-01

RETAINER, PISTON PIN

$

$

Not available

9

Electrolux/AYP 12-422-09

SHIM, CAMSHAFT,RED

$

$

Not available

9

Electrolux/AYP 12-422-13

SHIM, CAMSHAFT, BLACK

$

$

Not available

9

Electrolux/AYP 12-422-07

SHIM, CAMSHAFT, WHITE

$

$

Not available

9

Electrolux/AYP 12-422-08

SHIM, CAMSHAFT, BLUE

$

$

Not available

9

Electrolux/AYP 12-422-10

SHIM, CAMSHAFT, YELLOW

$

$

Not available

9

Electrolux/AYP 12-422-11

SHIM, CAMSHAFT, GREEN

$

$

Not available

9

Electrolux/AYP 12-422-12

SHIM, CAMSHAFT, GREY

$

$

Not available

$

$

Not available

11

Electrolux/AYP 24-144-01

SHAFT, GOVERNOR CROSS

$

$

Not available

12

Electrolux/AYP X-25-63

WASHER, PLAIN 1/4

$

$

Not available

13

Electrolux/AYP 12-032-01

SEAL ,GOVERNOR CROSS SHAFT

$

$

Not available

$

$

Not available

$

$

Not available

16

Electrolux/AYP M-0545010

SCREW, MOUNTING

$

$

Not available

17

Electrolux/AYP 24-018-04

RETAINER, REED

$

$

Not available

$

$

Not available

19

Electrolux/AYP 24-032-01

SEAL, OIL, FRONT

$

$

Not available

20

Electrolux/AYP 12-153-01

O-RING, LOWER OIL FILL TUBE

$

$

Not available

21

Electrolux/AYP 12-123-04

TUBE, OIL FILL

$

$

Not available

22

Electrolux/AYP 24-126-19

BRACKET, OIL FILL TUBE

$

$

Not available

$

$

Not available

24

Electrolux/AYP 12-153-02

O-RING, UPPER OIL FILL TUBE

$

$

Not available

25

Electrolux/AYP 24-038-04

DOPSTICK ASSEMBLY

$

$

Not available

26

Electrolux/AYP 25-755-13

KIT, OIL FILL CAP

$

$

Not available

27

Electrolux/AYP 12-153-03

O-RING, DIPSTICK

$

$

Not available
