917.250510 - Craftsman Lawn Tractor (1999 & Before) FUEL PUMP Parts Diagram

Lawn Tractor

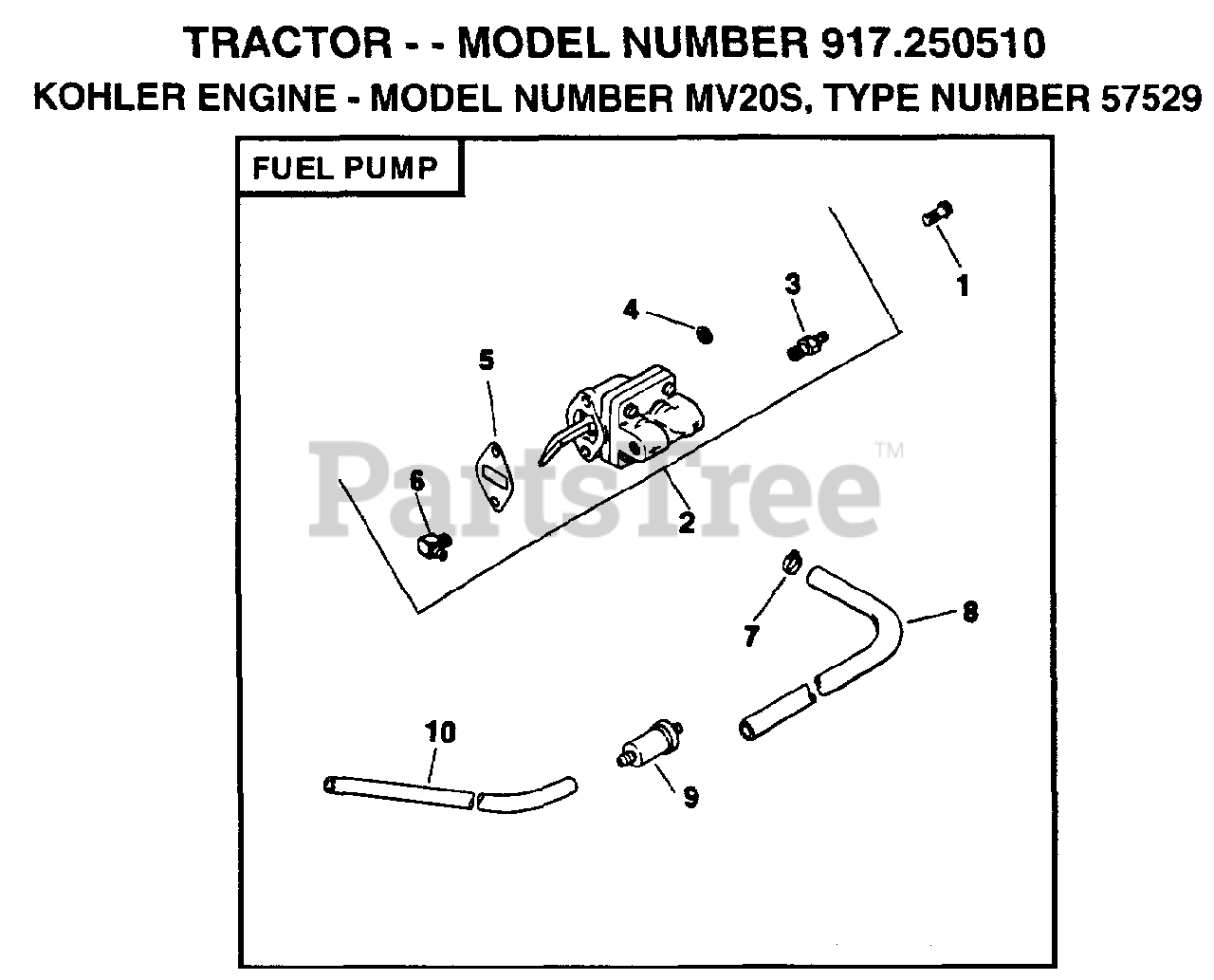

FUEL PUMP Parts Diagram

  • Title

1

Electrolux/AYP 47-086-08

SCREW

$

$

Not available

2

Electrolux/AYP 52-559-01

PUMP

$

$

Not available

3

Kohler X-380-1

CONNECTOR, HOSE
(Superseded to X-380-1-S)

$3.99

$

In Stock, only 1 left!

0

4

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 3 left!

0

5

Electrolux/AYP 25-041-09

GASKET

$

$

Not available

6

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

7

Kohler X-426-9

CLAMP, HOSE
(Superseded to X-426-9-S)

$4.99

$

In Stock, only 3 left!

0

8

Electrolux/AYP 25-353-03

LINE

$

$

Not available

9

Electrolux/AYP 25-050-02

FUEL FILTER

$

$

Not available

10

Electrolux/AYP 52-353-18

LINE, FUEL 8"

$

$

Not available
