916302 - Ariens AMP Compact 24" Snow Blower, Battery Powered (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

AMP Compact 24" Snow Blower, Battery Powered

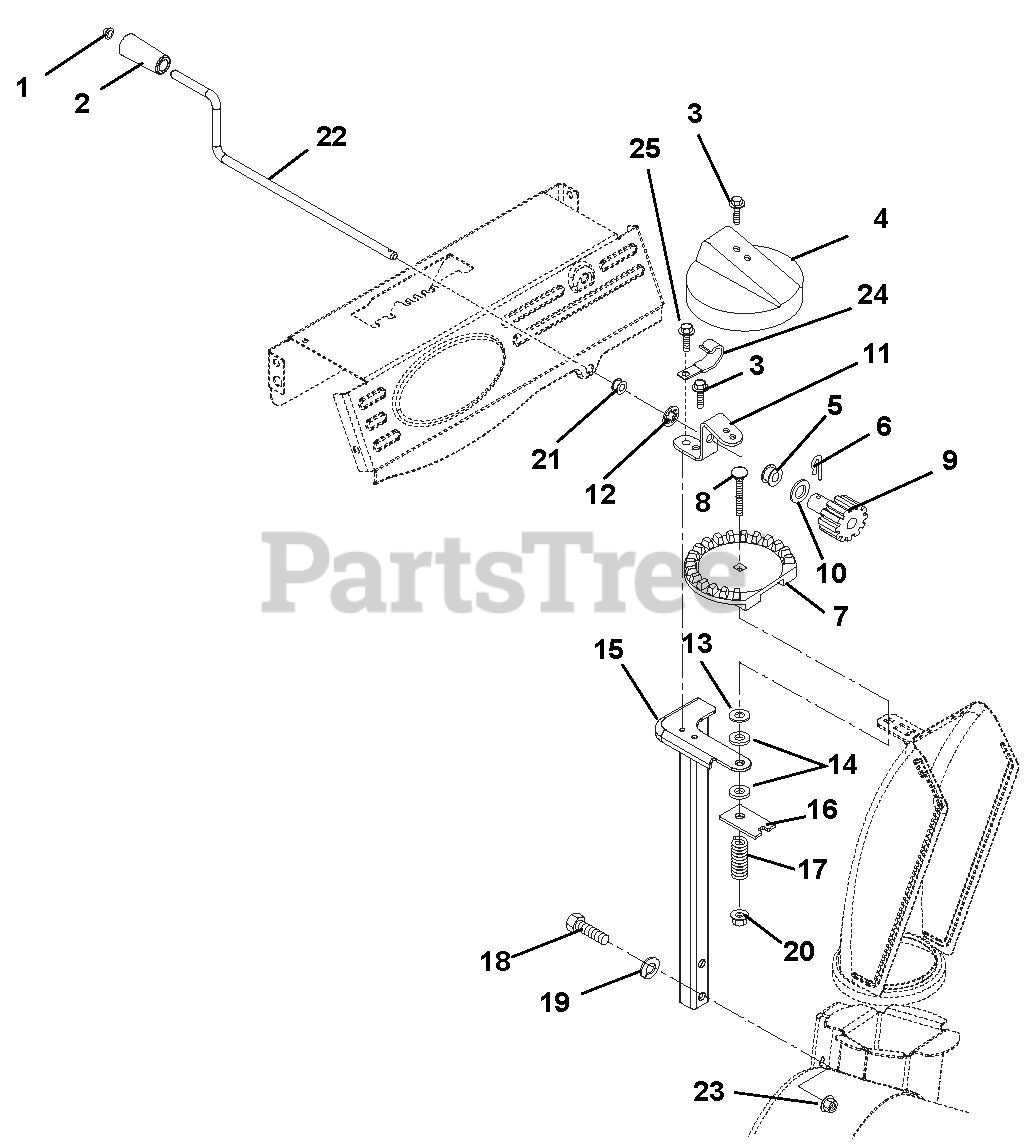

Discharge Chute Crank Parts Diagram

  • Title
1

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 14

0

2

Ariens 07500001

KNOB, CHUTE CRANK

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03223000

GEAR COVER

$12.99

$

In Stock, only 3 left!

0

5

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 11

0

6

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

7

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 16

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 18

0

9

Ariens 52000100

PINION GEAR W/BRACKET

Note: (Contains Items 5, 10 - 12)

$28.99

$

In Stock, Qty 5

0

10

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

11

Ariens 01972451

BRACKET, PINION GEAR

$

$

Not available

12

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 10

0

13

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

15

Ariens 03883751

CHUTE PEDESTAL, TALL COMPACT

$41.99

$

Usually ships in 4-12 days

0

16

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 10

0

17

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 17

0

18

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0

22

Ariens 03887100

CHUTE CRANK,COMPACT 920,XXX HI

$39.99

$

Usually ships in 4-12 days

0

23

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 5

0

25

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0
