916003 - Ariens AMP Compact 24" Snow Blower, Battery Powered (SN: 075000 & Above) Batteries And Electrical Parts Diagram

AMP Compact 24" Snow Blower, Battery Powered

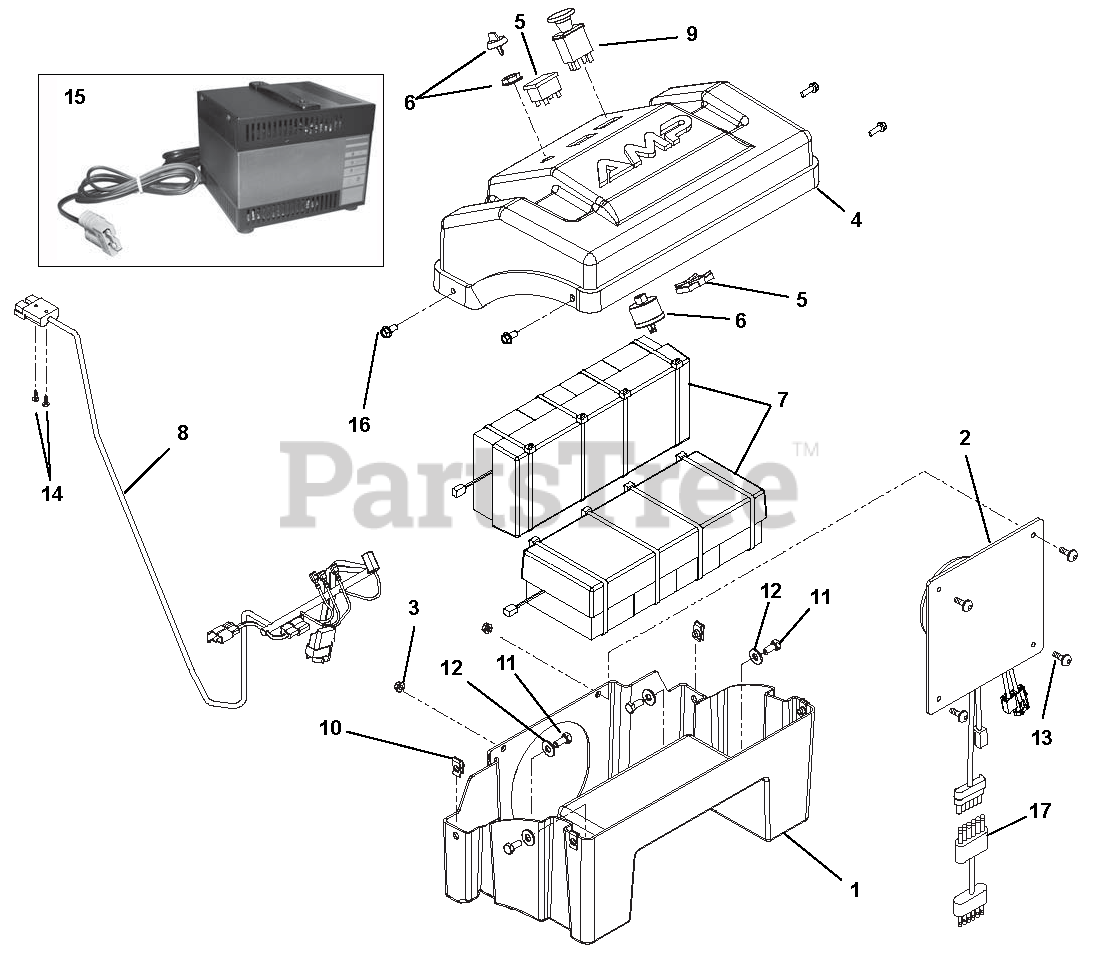

Batteries And Electrical Parts Diagram

  • Title

1

Ariens 03938600

BOX, BOTTOM BATTERY

$

$

Not available

2

Ariens 03829500

ASSY, DRIVE CONTROLLER

$

$

Not available

3

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03938800

COVER, BATTERY BOX-DESIGN 2

$

$

Not available

5

Ariens 03796700

METER, BATTERY DISCHARGE 48V

$56.99

$

Usually ships in 4-12 days

0

6

Ariens 03796600

SWITCH-IGNITION 2-POS W/KEY

$

$

Not available

7

Ariens 51600400

TRAY, AMP-W/BATTERY

Note: (916003)

$

$

Not available

Ariens 51600500

KIT, AMP - NO BATTERY

Note: (916303)

$

$

Not available

8

Ariens 04168600

HARNESS, MAIN ESNOW W/FUSE

$

$

Not available

9

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

10

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06100212

SCR-MCH .25-20X.63 BTNHDSKT YZ

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 07400109

SCR-TAP #8X.50 PLASTITE SLHXHD

$

$

Not available

15

Ariens 03822200

CHARGER,BAT.48V5A-TEMP/HIB58.8

Note: (916003)

$

$

Not available

Ariens 03822300

CHARGER,BAT.48V5A-TEMP/HIB CE

Note: (916303)

$

$

Not available

16

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 04197000

HARNESS, MTR/CNTL JUMPER-CE

Note: (916303)

$

$

Not available
