916 H (1690575) - Allis-Chalmers Garden Tractor, 16hp (SN: 0001 - 4701) Front Axle Group Parts Diagram

Garden Tractor, 16hp

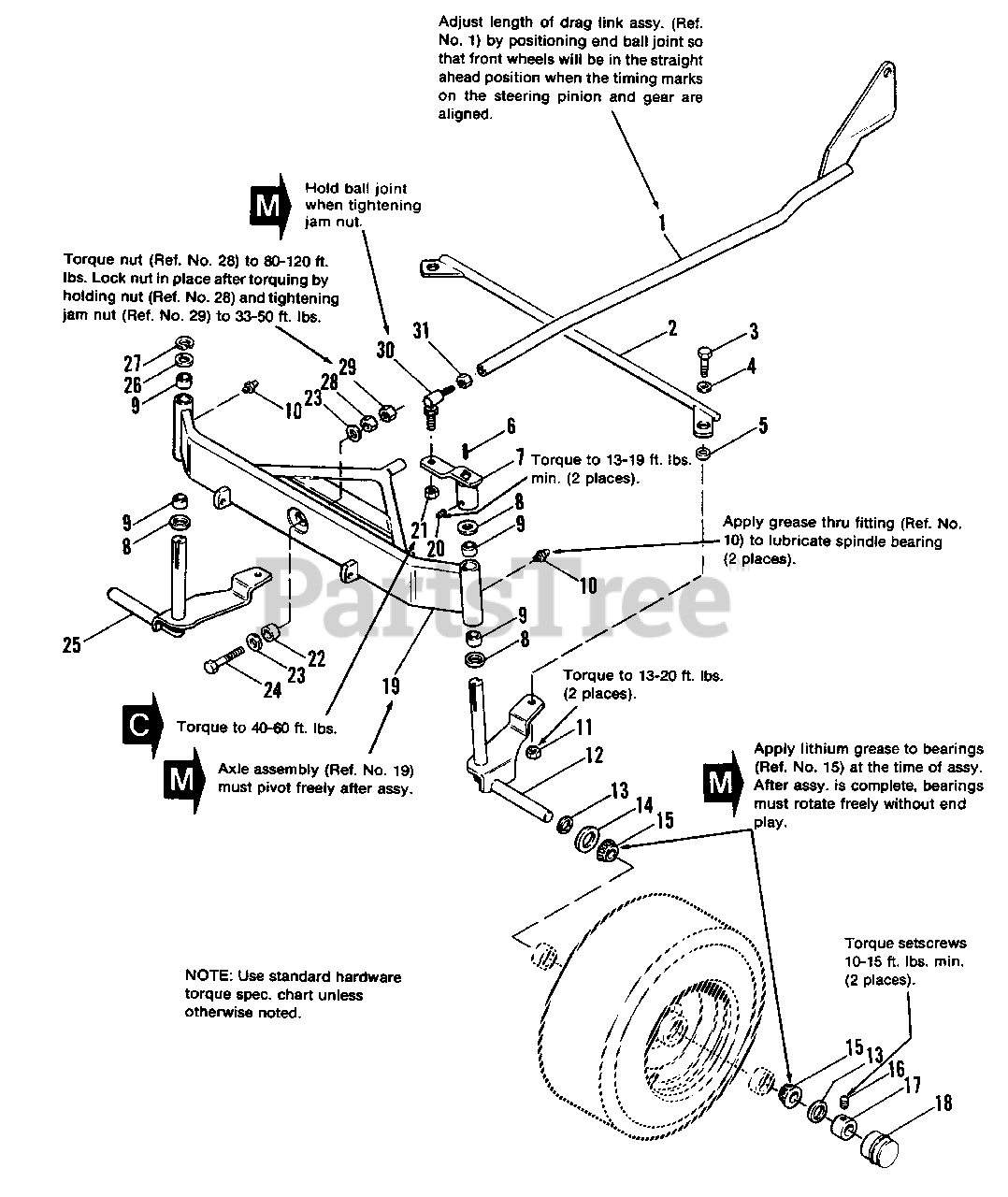

Front Axle Group Parts Diagram

  • Title

1

Simplicity 1666648SM

LINK ASSY., Drag

$

$

Not available

2

Simplicity 2157499SM

ROD ASSY., Tie
(Superseded to 2157499ASM)

$122.99

$

Usually ships in 2-12 days

0

3

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

4

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2154177SM

SPACER

$39.99

$

In Stock, only 1 left!

0

6

Simplicity 2157427SM

KEY, Square

$5.49

$

In Stock, only 1 left!

0

7

Simplicity 2170998SM

ARM ASSY., Steering

$

$

Not available

8

Simplicity 2108181

WASHER

$

$

Not available

9

Simplicity 2154289SM

BUSHING

$12.99

$

Usually ships in 2-12 days

0

10

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 1930645SM

LOCKNUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Simplicity 2171774ASM

SPINDLE ASSY., LH

$353.99

$

Usually ships in 2-12 days

0

13

Simplicity 2171375SM

SPACER

$15.99

$

In Stock, Qty 12

0

14

Simplicity 2170168SM

SEAL

$38.99

$

Usually ships in 2-12 days

0

15

Simplicity 2154486SM

CONE, Bearing

$36.99

$

In Stock, Qty 6

0

16

Simplicity 2828691

SETSCREW, 5/16-18 x 5/16

$

$

Not available

17

Simplicity 1729254SM

COLLAR, Set
(Superseded to 703150)

$

$

Not available

18

Simplicity 2154487SM

CAP, Hub
(Superseded to 2154487YP)

$9.99

$

In Stock, Qty 20+

0

19

Simplicity 1650553SM

AXLE ASSY., Front

$463.99

$

Usually ships in 2-12 days

0

20

Simplicity 2828721

SETSCREW, 5/16-18 x 1/2
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

21

Simplicity 2830245

LOCKNUT, Hex, 1/2-20

$

$

Not available

22

Simplicity 2157618SM

SPACER

$23.99

$

Usually ships in 2-12 days

0

23

Simplicity 2818431

WASHER, Plain, 1/2

$

$

Not available

24

Simplicity 2827469

CAPSCREW, Hex Hd., 1/2-13 x 2-1/4

$

$

Not available

25

Simplicity 2157494SM

SPINDLE ASSY., RH
(Superseded to 2157494ASM)

$148.99

$

Usually ships in 2-12 days

0

26

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 7

0

27

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 18

0

28

Simplicity 2830648

LOCKNUT, Hex, 1/2-13

$

$

Not available

29

Simplicity 2813744

LOCKNUT, Hex, Jam, 1/2-13

$

$

Not available

30

Simplicity 2164272SM

BALL, Joint

$71.99

$

In Stock, Qty 8

0

31

Simplicity 2819262

LOCKNUT, Hex, Jam, 1/2-20

$

$

Not available
