916 H (1690575) - Allis-Chalmers Garden Tractor, 16hp (SN: 0001 - 4701) Clutch & Brake Control Group Parts Diagram

Garden Tractor, 16hp

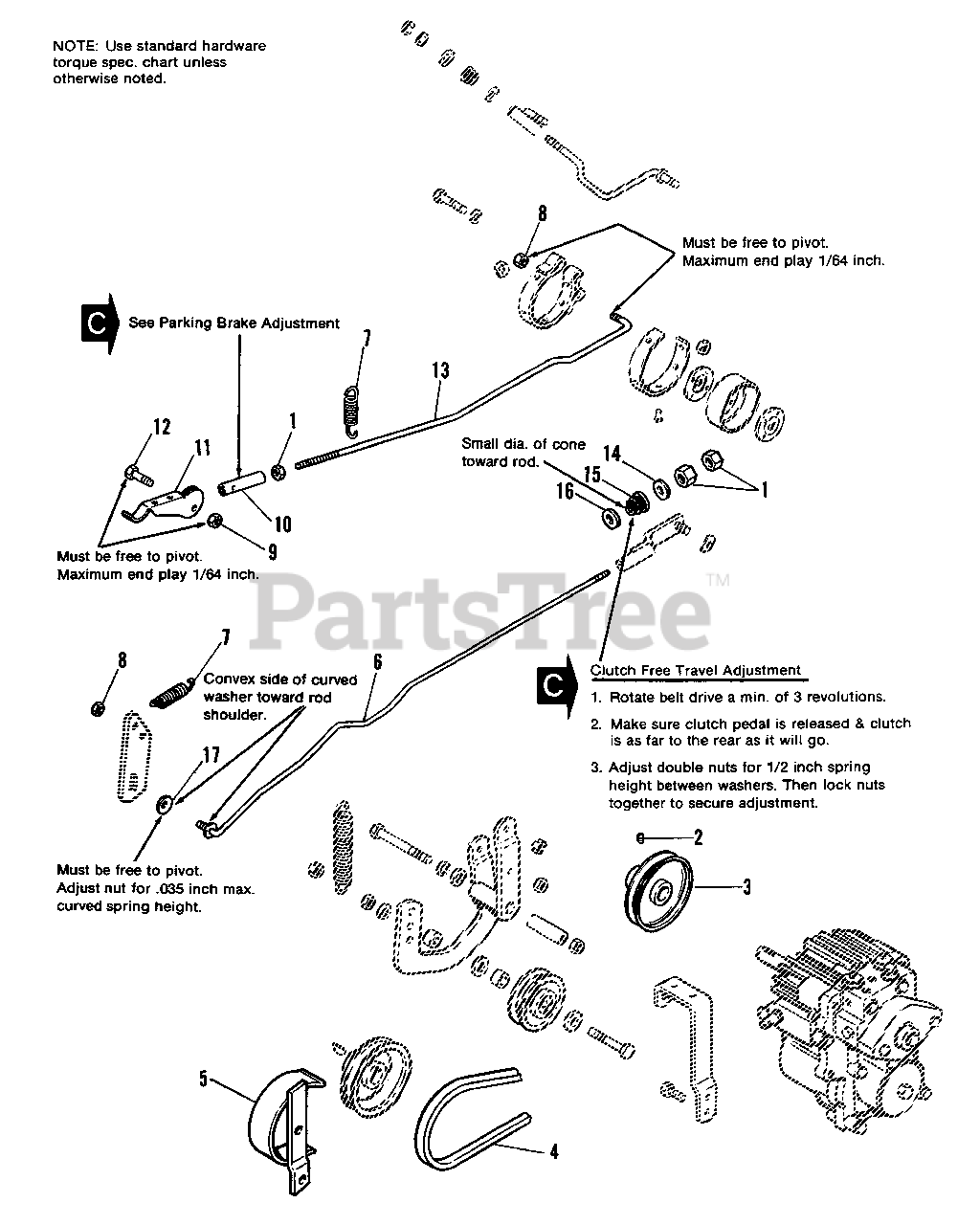

Clutch & Brake Control Group Parts Diagram

  • Title

1

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

3

Simplicity 2166173SM

PULLEY, Drive
(Superseded to 2166173ASM)

$117.99

$

Usually ships in 2-12 days

0

4

Simplicity 1650502SM

V-BELT, Drive

$29.99

$

In Stock, Qty 10

0

5

Simplicity 2166122SM

GUARD ASSY.

$

$

Not available

6

Simplicity 1650531SM

ROD, Clutch

$86.99

$

Usually ships in 2-12 days

0

7

Simplicity 2121037SM

SPRING

$

$

Not available

8

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

9

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

10

Simplicity 2171994SM

END, Rod

$15.99

$

In Stock, only 1 left!

0

11

Simplicity 2172108SM

LEVER, Parking Brake

$

$

Not available

12

Simplicity 2826771

CAPSCREW, Hex Hd., 1/4-20 x 1

$

$

Not available

13

Simplicity 1668419SM

ROD ASSY.

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 2819381

WASHER, 5/16

$

$

Not available

15

Simplicity 2157127SM

SPRING, Cone

$

$

Not available

16

Simplicity 2817377

WASHER

$

$

Not available

17

Simplicity 1668737SM

WASHER, Curved, Spring

$

$

Not available
