915602 (GD 2348) - Great Dane 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Transaxle, Dump Valves and Rear Wheels Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

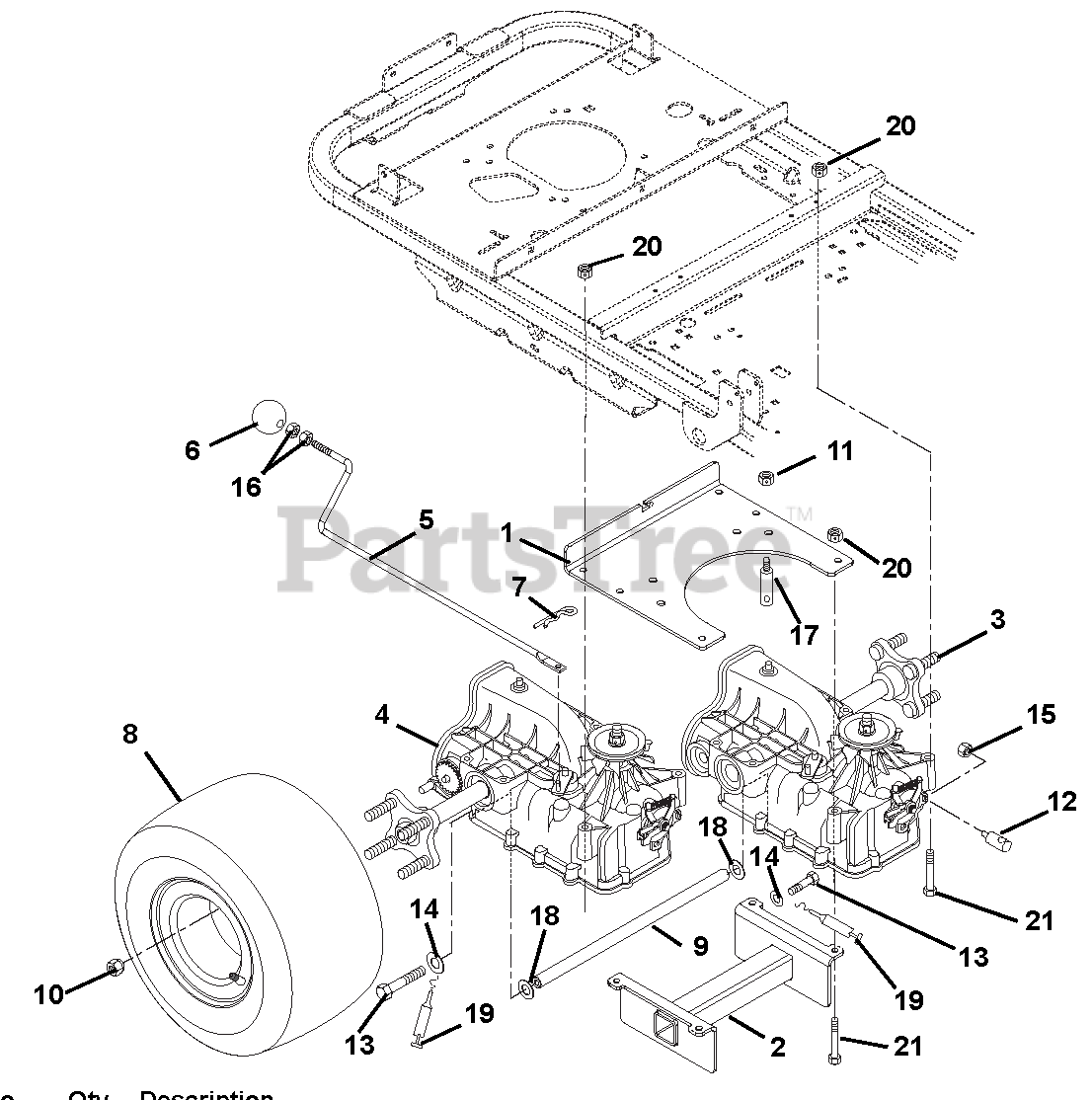

Transaxle, Dump Valves and Rear Wheels Parts Diagram

  • Title
1

Ariens 01578051

BKT-TRANS AXLE SUPPORT

$

$

Not available

2

Ariens 01578151

WLDMT-TRANS AXLE BRACE

$

$

Not available

3

Ariens 00386300

IZT-LH (BIDIRECTIONAL RTN)

$

$

Not available

3

Ariens 51514300

KIT, LH-BRAKE ARM IZT

$52.99

$

In Stock, only 1 left!

0

4

Ariens 00386200

IZT-RH (BIDIRECTIONAL RTN)

$

$

Not available

4

Ariens 51514200

KIT,RH-BRAKE ARM IZT

$55.99

$

In Stock, only 1 left!

0

5

Ariens 01581600

ROD-DUMP IZT

$

$

Not available

6

Ariens 07515900

KNOB, BALL 5/16-18 X 1.5

$21.99

$

In Stock, only 2 left!

0

7

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 01587800

ASSY-TIRE 9.5X18-2PLY
(Superseded to 07100233)

Note: (601, 602)

$170.99

$

In Stock, only 2 left!

0

8

Ariens 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

Note: (600)

$155.99

$

Usually ships in 4-12 days

0

9

Ariens 01578200

ROD-AXLE BRACE

$

$

Not available

10

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 01568600

ROD PIVOT YWZC

$51.99

$

Usually ships in 4-12 days

0

13

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 03622900

SHOULDER STUD

$34.99

$

In Stock, only 2 left!

0

18

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

19

Ariens 00929200

ADHSV SEALANT (BLUE) 250 ML

$

$

Not available

20

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0
