915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Parking Breake Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

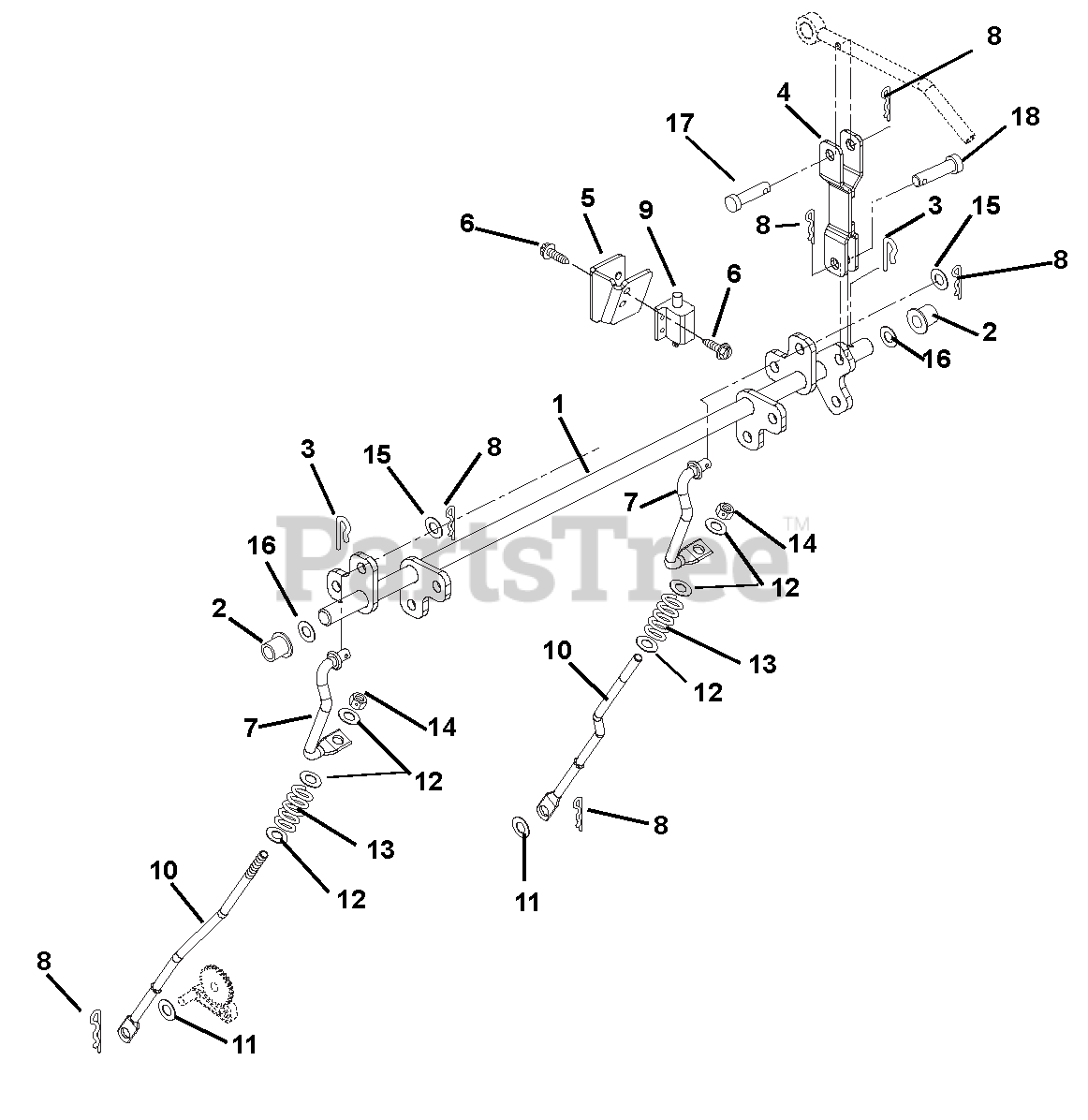

Parking Breake Parts Diagram

  • Title

1

Ariens 00361200

WMT, BRAKE ROD

$

$

Not available

2

Ariens 05517400

BSHG-FLG .630X1.000X.625 NY

$

$

Not available

3

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

4

Ariens 00379800

CLEVIS WELDMENT

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 00183700

BRACKET, BRAKE SWITCH

$

$

Not available

6

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

7

Ariens 01589200

ROD-OVER CENTER

$

$

Not available

8

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

10

Ariens 00425300

ROD, PARK BRAKE IZT

$

$

Not available

11

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 7

0

14

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06408900

WSHR-FL-STL .627X.990X.032

$

$

Not available

17

Ariens 06810200

PIN-CLEV .370X1.50

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 06811900

PIN-CLEV .375X.948 YWZC

$4.99

$

In Stock, Qty 5

0
