915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Mower Deck, Belt Idlers and Blades Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

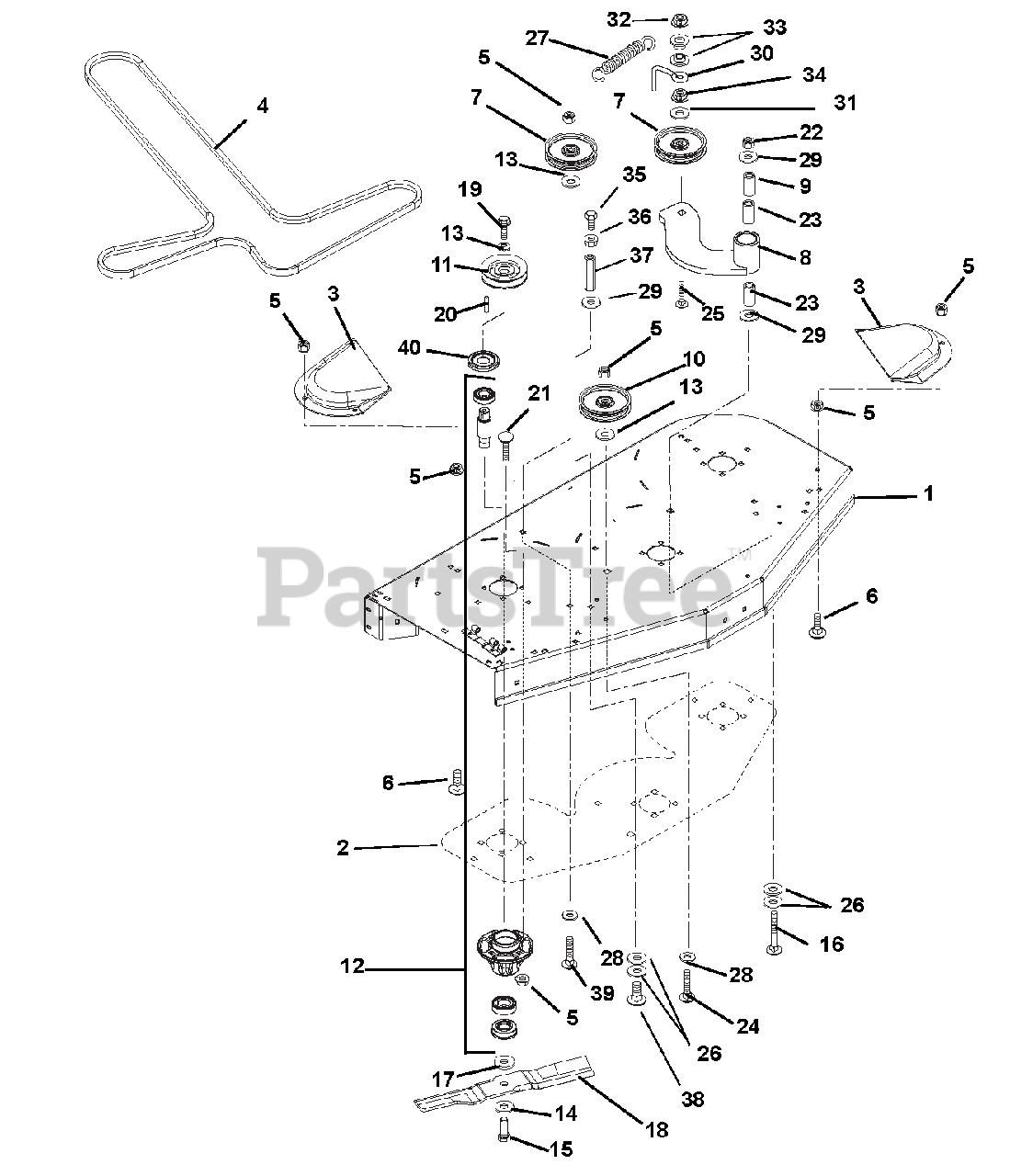

Mower Deck, Belt Idlers and Blades Parts Diagram

  • Title

1

Ariens 00428963

WMT, 40" DECK

Note: (600)

$

$

Not available

1

Ariens 00440363

WMT, 44" DECK

Note: (601)

$

$

Not available

1

Ariens 00440463

WMT, 48" DECK

Note: (602)

$

$

Not available

2

Ariens 00429563

PLATE, 40" DOUBLER

Note: (600)

$

$

Not available

3

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 07219600

V-BELT, HA-WRAPPED

Note: (600)

$80.99

$

In Stock, only 3 left!

0

4

Ariens 07242900

BELT,HA WRAPPED

Note: (601)

$91.99

$

Usually ships in 4-12 days

0

4

Ariens 07200022

BELT,HA WRAPPED

Note: (602)

$108.99

$

In Stock, Qty 6

0

5

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

8

Ariens 00429900

WMT, IDLER ARM

$82.99

$

Usually ships in 4-12 days

0

9

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

10

Ariens 07327100

PULLEY, IDLER 4.00

$37.99

$

In Stock, Qty 16

0

11

Ariens 01599400

SHEAVE, SPINDLE - 4.25 DIA.

Note: (600)

$26.99

$

In Stock, Qty 10

0

11

Ariens 01599500

SHEAVE, SPINDLE - 4.50 DIA.

Note: (601)

$28.99

$

In Stock, only 2 left!

0

11

Ariens 01610400

SHEAVE, 4.25 DIA A-SECTION

Note: (602)

$45.99

$

In Stock, only 1 left!

0

12

Ariens 51510000

ASSEMBLY, SPINDLE

$216.99

$

In Stock, Qty 12

0

13

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

14

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

15

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

16

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

17

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

18

Ariens 03498400

MOWER BLADE, 13.94"

Note: (13.88) (600)

$19.99

$

In Stock, Qty 20+

0

18

Ariens 01593900

BLADE, 15.50"

Note: (15.50) (601)

$23.99

$

In Stock, Qty 20+

0

18

Ariens 04919100

BLADE, MOWER (16.19")

Note: (16.25) (602)

$26.99

$

In Stock, Qty 20+

0

19

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

20

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

22

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

24

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

25

Ariens 06228100

@BLT-RDHDSQNK .38-16X3.00 G5YZ
(Superseded to 06200418)

$3.99

$

In Stock, only 1 left!

0

26

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

27

Ariens 08300020

EXTENSION SPRING

$26.99

$

In Stock, only 2 left!

0

28

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

29

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

30

Ariens 00391900

BELT FINGER

$20.99

$

In Stock, only 2 left!

0

31

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

32

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05515800

BSHG-FLG .406X.88X.270X.140

$9.49

$

In Stock, only 4 left!

0

34

Ariens 06543900

NUT-SPIRALOCK-FLG .50-13 PLN

$6.99

$

In Stock, Qty 6

0

35

Ariens 05959700

@BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$

$

Not available

36

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 06500013

NUT, COUPLING 1/2-13X1.75 YWZC

$3.99

$

Usually ships in 4-12 days

0

38

Ariens 06224700

@BLT-RDHDSQNK .50-13X1.25 G5YZ
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

39

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

40

Ariens 00587400

DUST CAP

$7.99

$

In Stock, only 3 left!

0
