915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Fuel Tank Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

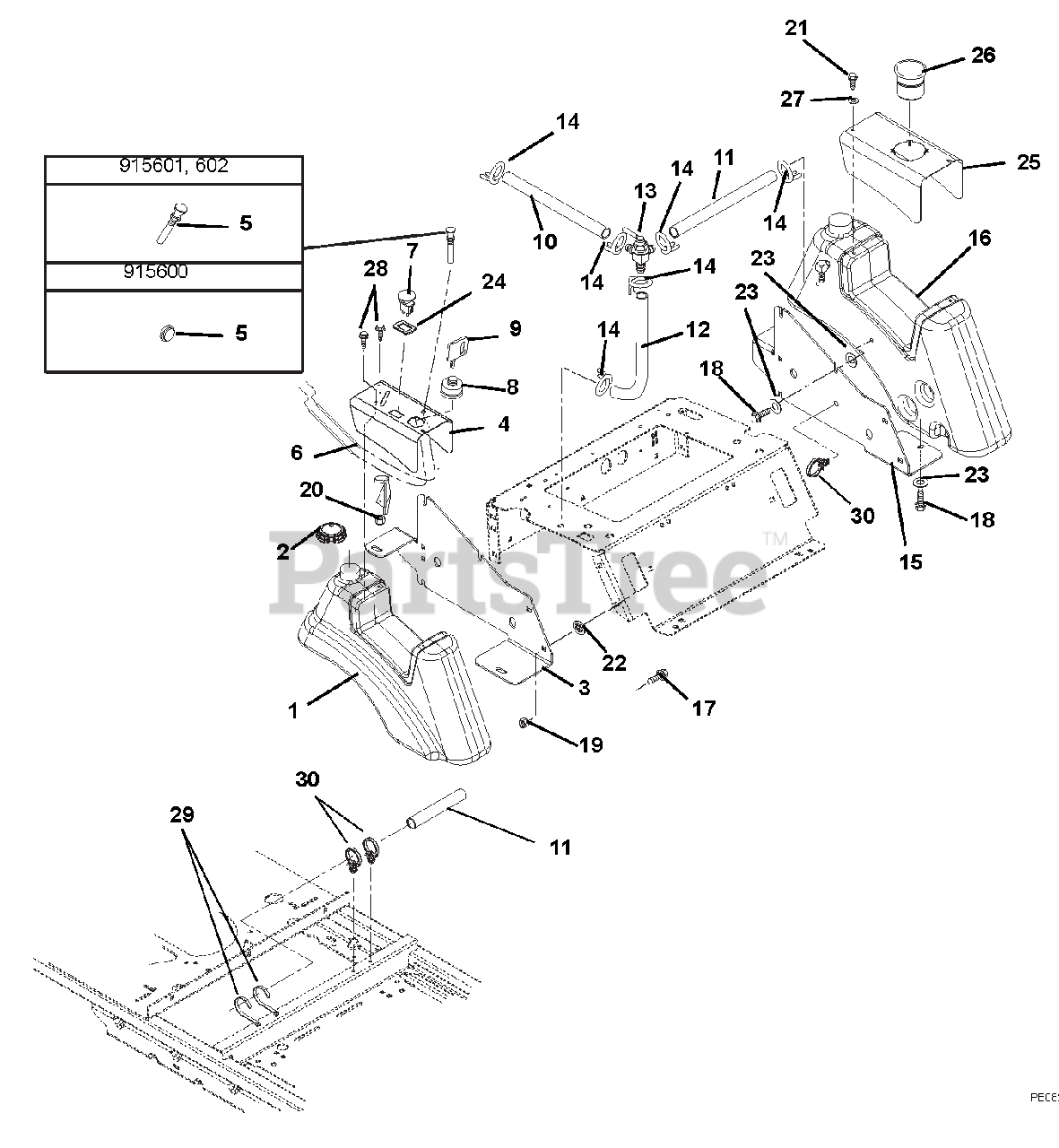

Fuel Tank Parts Diagram

  • Title

1

Ariens 01614100

FUEL TANK, RH

$262.99

$

Usually ships in 4-12 days

0

1

Ariens 00387300

GROMMET, DAPCO VITON #12240

Note: NOT SHOWN

$9.49

$

In Stock, Qty 20+

0

2

Ariens 01538400

FUEL CAP

$15.99

$

Usually ships in 4-12 days

0

3

Ariens 00296751

SEAT PLATE, RH

$

$

Not available

4

Ariens 01614551

RH CONSOLE

$

$

Not available

5

Ariens 01588400

CHOKE CABLE

Note: (915601, 602)

$68.99

$

In Stock, only 1 left!

0

Ariens 00529900

HOLE PLUG, PLASTIC .44 HOLE

Note: (915600)

$

$

Not available

6

Ariens 00369200

THROTTLE CABLE

Note: (915601, 602)

$58.99

$

Usually ships in 4-12 days

0

Ariens 00355100

THROTTLE CABLE

Note: (915600)

$34.99

$

Usually ships in 4-12 days

0

7

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

8

Ariens 01588300

KEY SWITCH

$30.99

$

In Stock, only 1 left!

0

9

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

10

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 09258200

VALVE, FUEL

$47.99

$

In Stock, Qty 20+

0

14

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 15

0

15

Ariens 00296851

SEAT PLATE, LH

$

$

Not available

16

Ariens 01614000

FUEL TANK, LH

$

$

Not available

16

Ariens 00387300

GROMMET, DAPCO VITON #12240

Note: NOT SHOWN

$9.49

$

In Stock, Qty 20+

0

17

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

19

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06100003

SCR-MCH 10-24X3/8 SL HEX YWZC

$1.99

$

In Stock, Qty 5

0

22

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 2 left!

0

23

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

24

Ariens 00289200

SHIM,PTO SW (DELTA #972301)

$

$

Not available

25

Ariens 01614451

LH CONSOLE

$82.99

$

Usually ships in 4-12 days

0

26

Ariens 01528500

CUPHOLDER

$15.99

$

In Stock, only 2 left!

0

27

Ariens 06400004

WASHER, FENDER 3/16X3/4 YWZC

$2.49

$

In Stock, only 3 left!

0

28

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 00470200

CABLE TIE, .18X8.5 50 LB PUSH

$

$

Not available

30

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0
