915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Frame, Engine Guard and Footrest Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

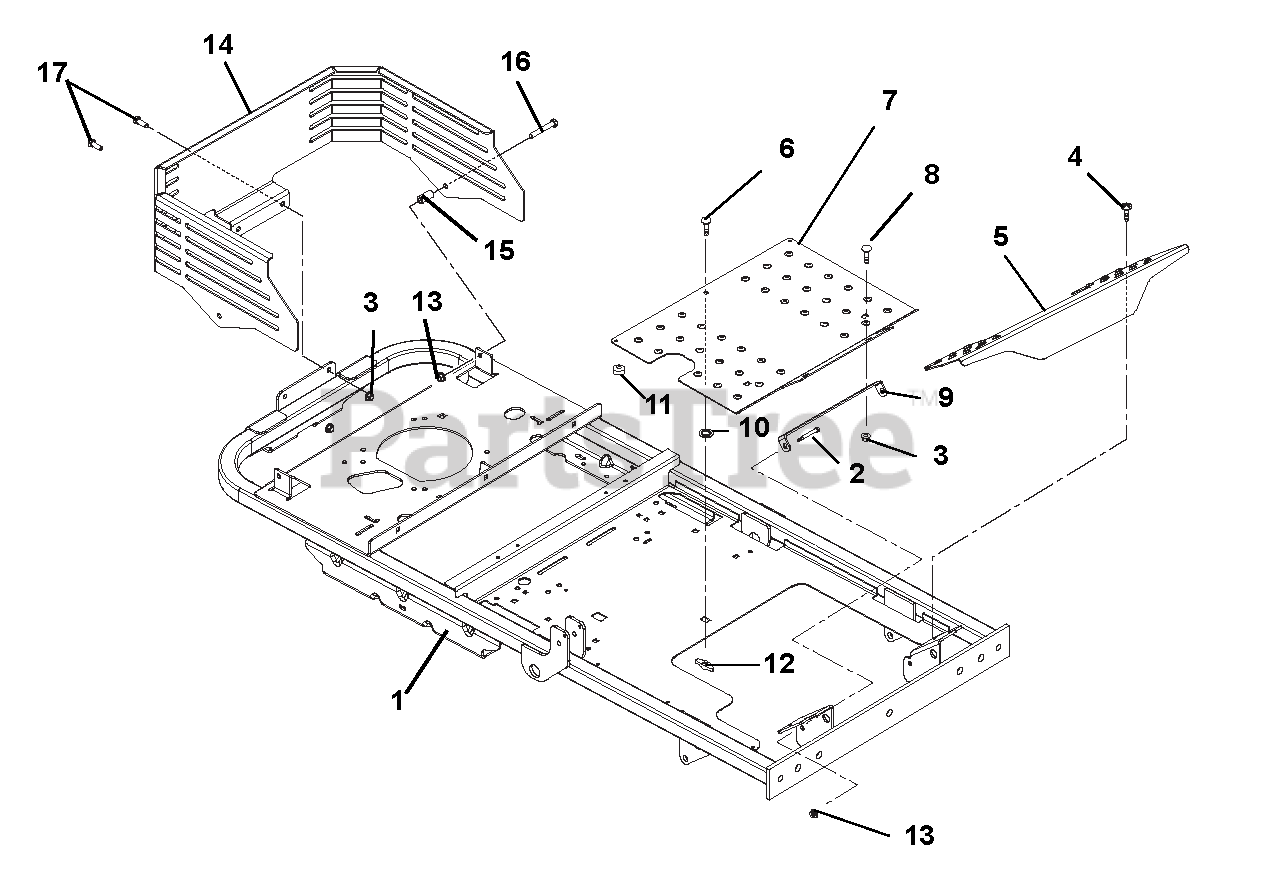

Frame, Engine Guard and Footrest Parts Diagram

  • Title

1

Ariens 00458151

WMT, PIVOTING AXLE FRAME

$

$

Not available

2

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

3

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 00457863

FOOTREST

$

$

Not available

6

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03760101

PAINTED FOOTREST ASSEMBLY

$

$

Not available

8

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

9

Ariens 00458051

BRACKET, DECK ACCESS

$

$

Not available

10

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

11

Ariens 07503100

BUMPER GROMMET

$3.49

$

In Stock, only 3 left!

0

12

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 00493301

ENGINE GAURD, PAINTED W/DECALS

$

$

Not available

15

Ariens 00363800

BSHG, SPCR .390X.625X1.25 PM

$18.99

$

In Stock, only 1 left!

0

16

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
