915601 (GD 2044) - Great Dane 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Deck Lift Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

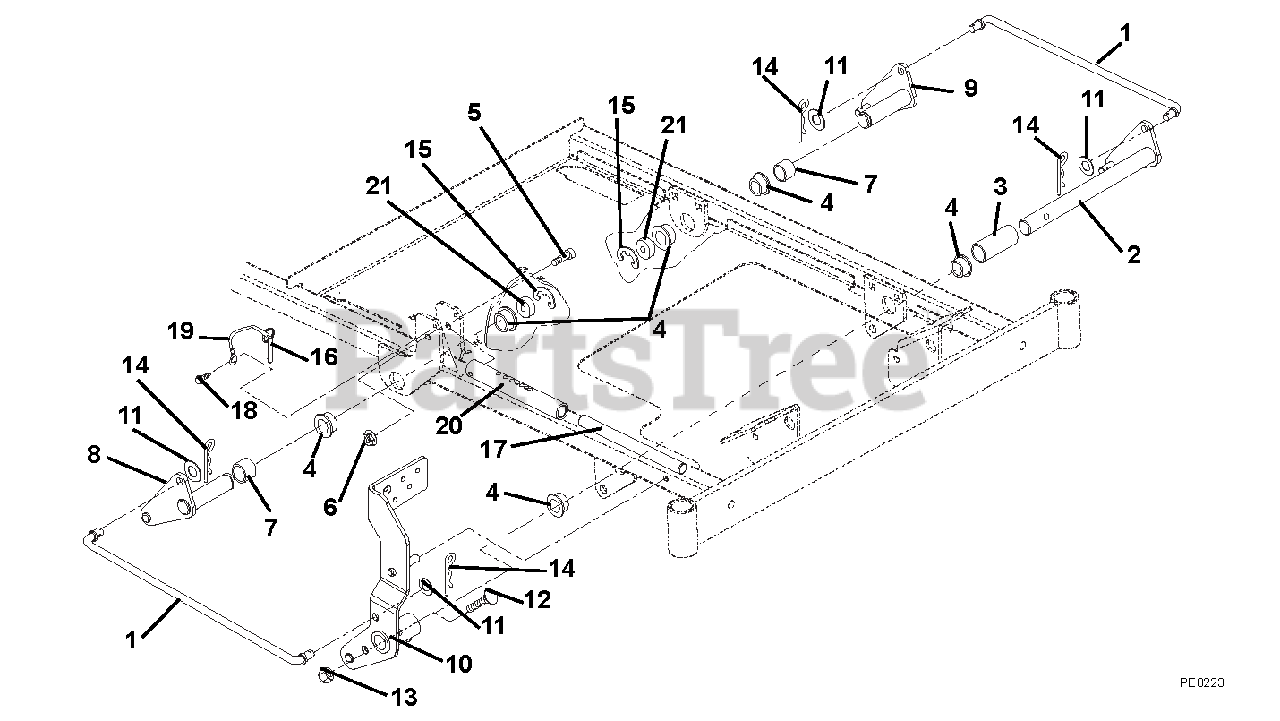

Deck Lift Parts Diagram

  • Title

1

Ariens 00270400

ROD, LIFT

$39.99

$

In Stock, only 2 left!

0

2

Ariens 00186200

WELDMENT,FRONT LIFT

$74.99

$

Usually ships in 4-12 days

0

3

Ariens 00178700

BSHG, SPCR 1.01X1.25X2.63 PM

$7.49

$

Usually ships in 4-12 days

0

4

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 20+

0

5

Ariens 05961400

@BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

6

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 01591800

BSHG-SPCR 1.032X1.250X.88 PM

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 01591700

WELDMENT, LIFT, REAR - RH

$45.99

$

Usually ships in 4-12 days

0

9

Ariens 01591600

WELDMENT, LIFT, REAR - LH

$51.99

$

Usually ships in 4-12 days

0

10

Ariens 00161600

WMT, FOOT PEDAL

$

$

Not available

11

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06714900

PIN, HAIR, EXT - #16 YWZC

$0.99

$

In Stock, Qty 20+

0

15

Ariens 05716800

RG-RTNG .822X1.500X.050 TYP E

$3.49

$

In Stock, only 3 left!

0

16

Ariens 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

17

Ariens 00165100

ROD, LIFT

$

$

Not available

18

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06927100

CBL,HOOD

$14.99

$

In Stock, only 1 left!

0

20

Ariens 00165000

TUBE, LIFT STOP

$

$

Not available

21

Ariens 00182500

BSHG, SPCR 1.032X1.25X.25 PM

$5.99

$

Usually ships in 4-12 days

0
