915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 - 009999) Seat And Seat Support Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

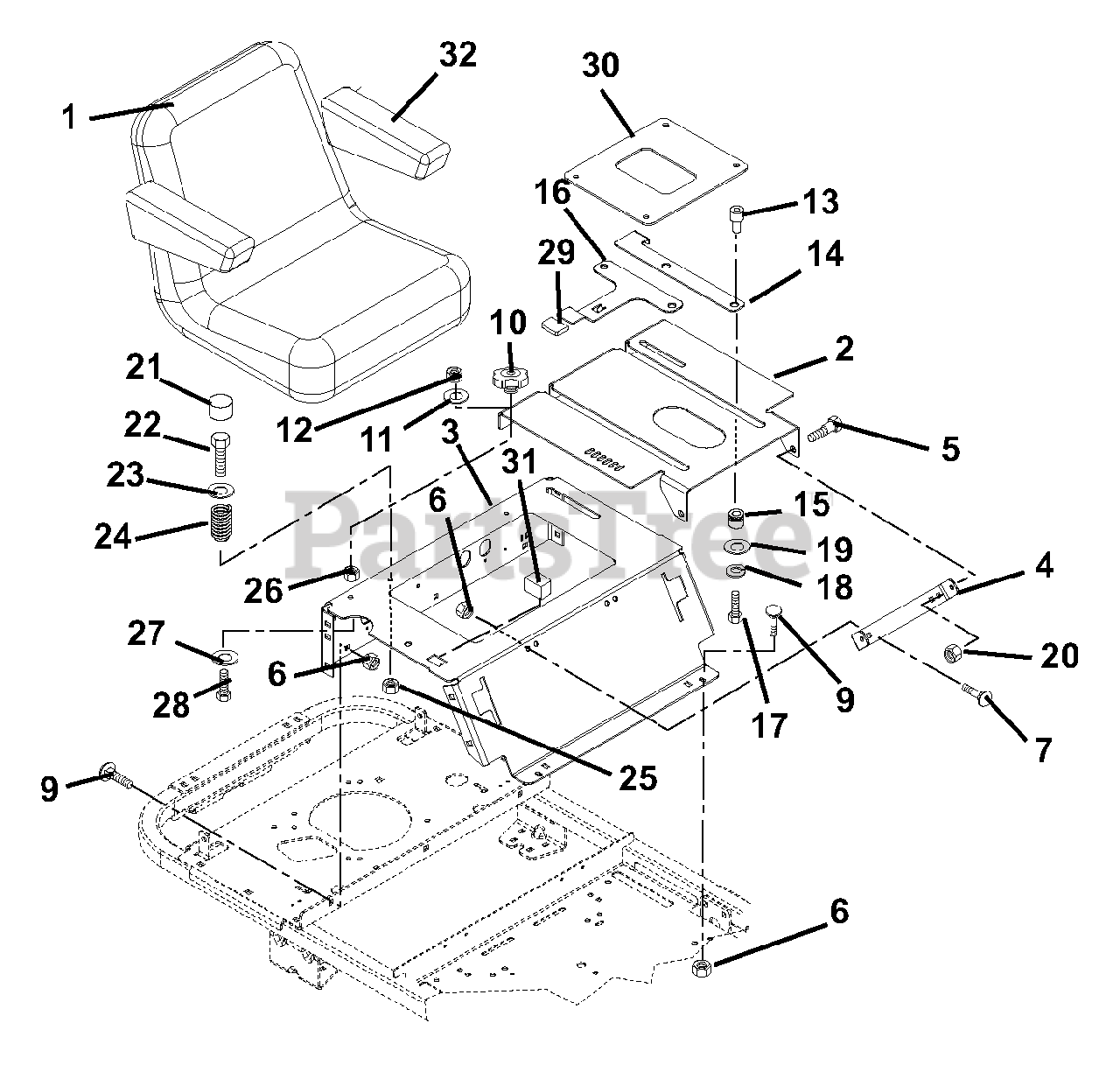

Seat And Seat Support Parts Diagram

  • Title

1

Ariens 01599200

SEAT, TS2500 MICHIGAN W/ARM.
(Superseded to 00366300)

$

$

Not available

2

Ariens 00182751

SEAT PLATE

$

$

Not available

3

Ariens 00183351

SEAT BOX

$

$

Not available

4

Ariens 00174151

BRACKET, SEAT PLATE

$

$

Not available

5

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

6

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

8

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

9

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

10

Ariens 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.49

$

In Stock, Qty 20+

0

11

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

12

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 00182100

SPACER, SEAT TOP

$

$

Not available

14

Ariens 00181351

SEAT STOP

$14.99

$

Usually ships in 4-12 days

0

15

Ariens 00183100

SPACER, SEAT BOTTOM

$22.99

$

Usually ships in 4-12 days

0

16

Ariens 00183200

LEVER, SEAT ADJUSTMENT

$

$

Not available

17

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06439700

WSHR-FL-STL .344X1.375X.075YWZ
(Superseded to 06446900)

$2.49

$

In Stock, only 2 left!

0

20

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 00571600

SG. COMP 2.9L X 2.02OD 200LB

$

$

Not available

25

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06221300

@BLT-RDHDSQNK .31-18X3.50 G5YZ
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

29

Ariens 00189000

GRIP

$

$

Not available

30

Ariens 00250751

SEAT SUPPORT PLATE

$45.99

$

Usually ships in 4-12 days

0

31

Ariens 00539300

PLUG, HOUR METER

$9.99

$

Usually ships in 4-12 days

0

32

Ariens 51512900

ARMREST KIT
(Superseded to 59204500)

$

$

Not available
