915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 - 009999) Frame, Hood, Footrest, Casters And Tires Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

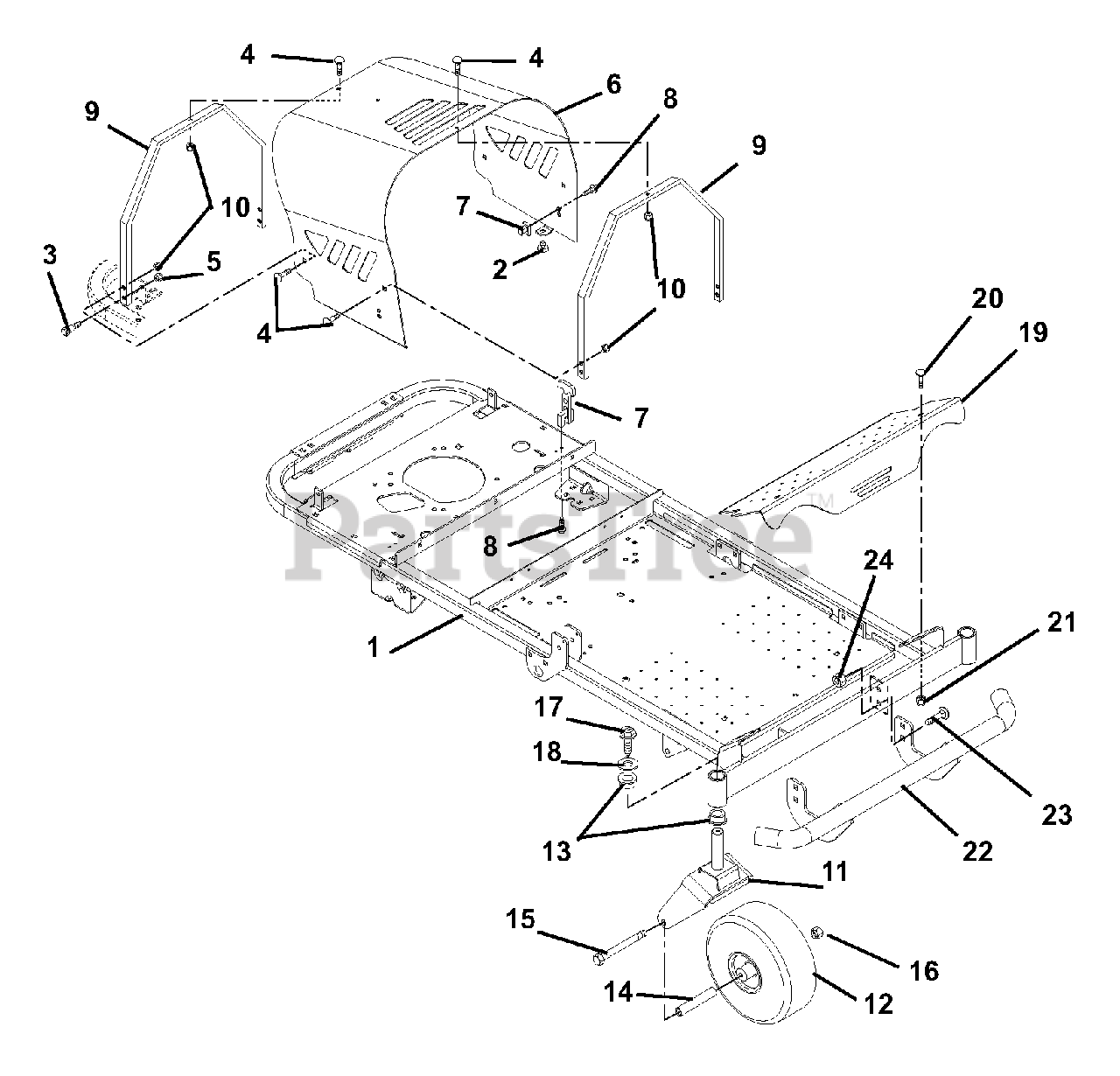

Frame, Hood, Footrest, Casters And Tires Parts Diagram

  • Title

1

Ariens 00182951

WMT, FIXED AXLE FRAME

$

$

Not available

2

Ariens 07516000

BUTTON BUMPER

$0.99

$

In Stock, Qty 14

0

3

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

4

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 01605059

HOOD, ZOOM

$148.99

$

Usually ships in 4-12 days

0

7

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0

8

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 01605151

BRACE, HOOD

$114.99

$

In Stock, only 1 left!

0

10

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 01547051

FORK - CASTER

$151.99

$

Usually ships in 4-12 days

0

12

Ariens 01588100

ASSY-TIRE 4 X 11 - 4 PLY
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

13

Ariens 05533600

BSHG-FLG 1.00X1.25X1.50X1.50EP
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

14

Ariens 00278500

SPACER, ROLLED WHEEL

$13.99

$

In Stock, Qty 20+

0

15

Ariens 05964400

@BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07417100

SCR-TAP .38-16X1.25 HWH TR BZC
(Superseded to 07414700)

$2.99

$

In Stock, only 3 left!

0

18

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0

19

Ariens 00164259

FOOT REST

$

$

Not available

20

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

21

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 01589551

BUMPER-ZOOM

$

$

Not available

23

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

24

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
