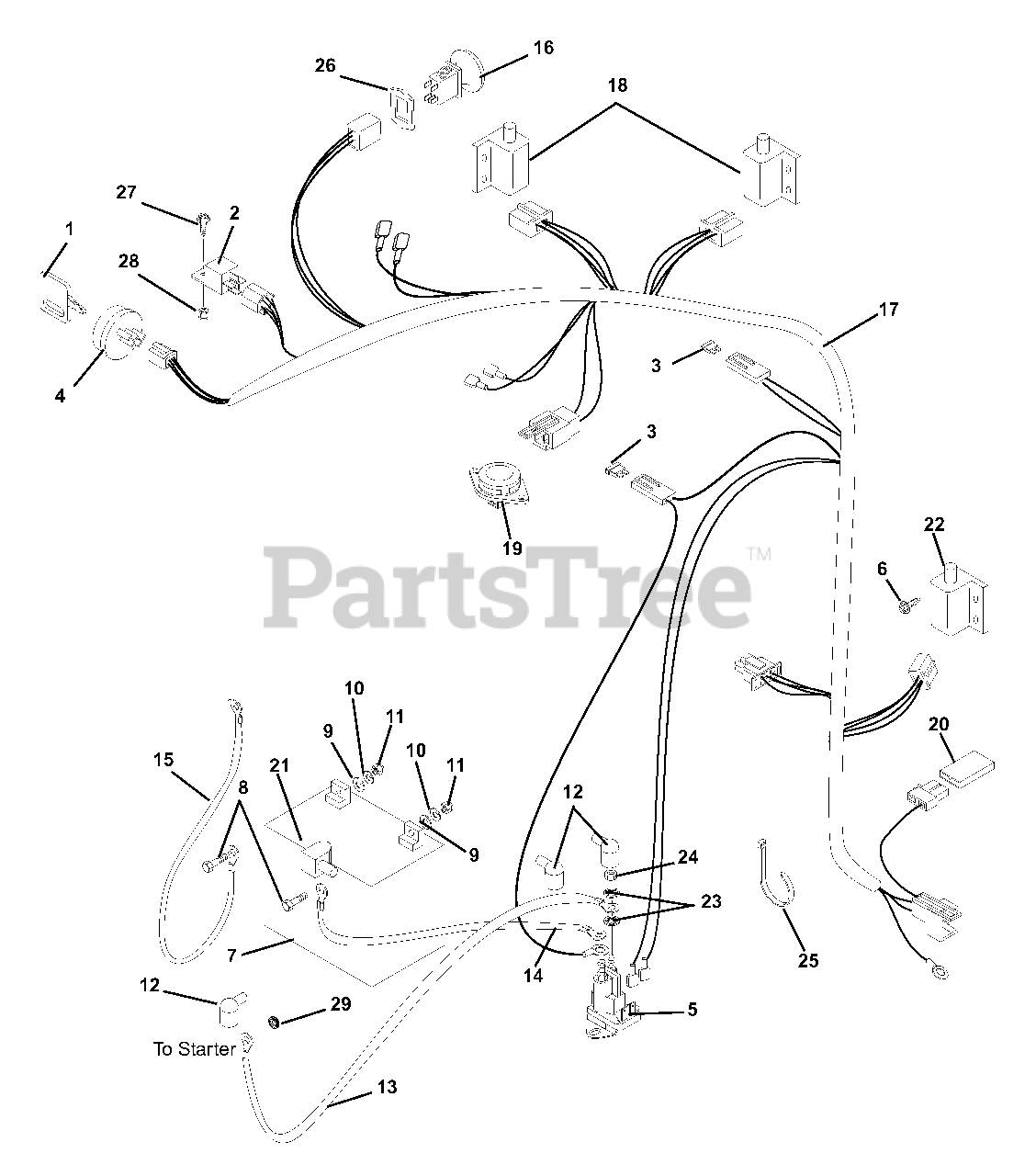

915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 005000 - 009999) Electrical System Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

Electrical System Parts Diagram

  • Title
1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

3

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

4

Ariens 01588300

KEY SWITCH

$30.99

$

In Stock, only 1 left!

0

5

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

6

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

7

Ariens 01554800

BATTERY, 300 CCA 10U1L

Note: (043)

$

$

Not available

7

Ariens 03621100

BATTERY W/ TUBE

Note: (502)

$

$

Not available

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

13

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

14

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0

15

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

16

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

17

Ariens 00292800

HARNESS, ZOOM/ZT
(Superseded to 00292801)

$

$

Not available

18

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

19

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

20

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

21

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

22

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

23

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

24

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

25

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

26

Ariens 00289200

SHIM,PTO SW (DELTA #972301)

$

$

Not available

27

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0
