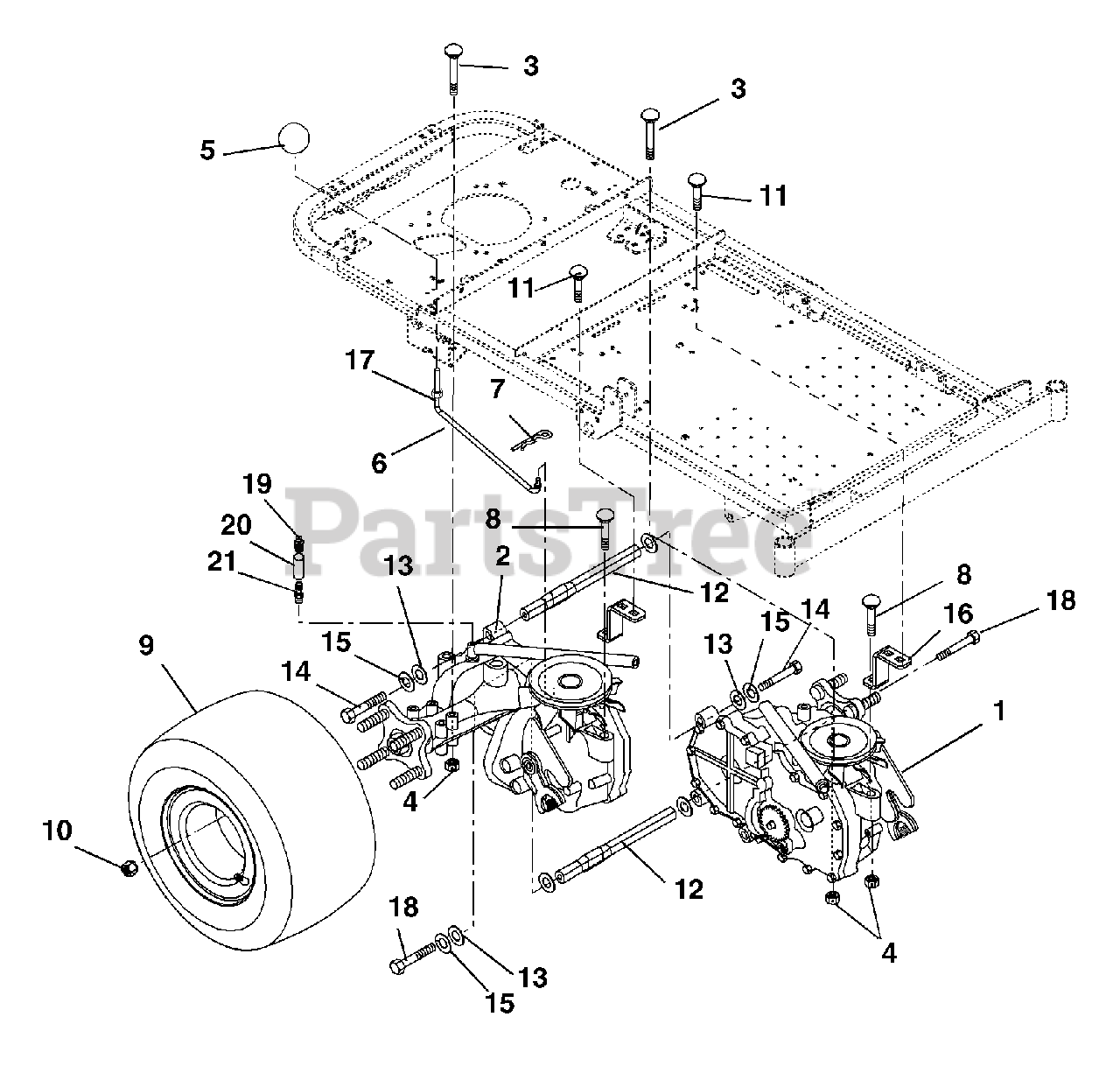

915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 004999) Transaxle, Dump Valves And Rear Wheels Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

Transaxle, Dump Valves And Rear Wheels Parts Diagram

  • Title
1

Ariens 00177300

EZT,LH TRANSAXLE-HYDROGEAR

$969.99

$

Usually ships in 4-12 days

0

2

Ariens 00177200

EZT,RH TRANSAXLE-HYDROGEAR

$1011.99

$

Usually ships in 4-12 days

0

3

Ariens 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$2.99

$

In Stock, only 4 left!

0

4

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

5

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 00164000

ROD, DUMP EZT

$

$

Not available

7

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 01588700

ASSY-TIRE 8.5X18 2PLY
(Superseded to 07100234)

$155.99

$

Usually ships in 4-12 days

0

10

Ariens 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

$61.99

$

In Stock, only 2 left!

0

13

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 00183551

TORQUE STRAP

$33.99

$

In Stock, only 3 left!

0

17

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

18

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07026400

CAP-VENT .50

$14.99

$

In Stock, only 2 left!

0

20

Ariens 01543100

HOSE - VENT

$9.49

$

In Stock, only 2 left!

0

21

Ariens 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 2 left!

0
