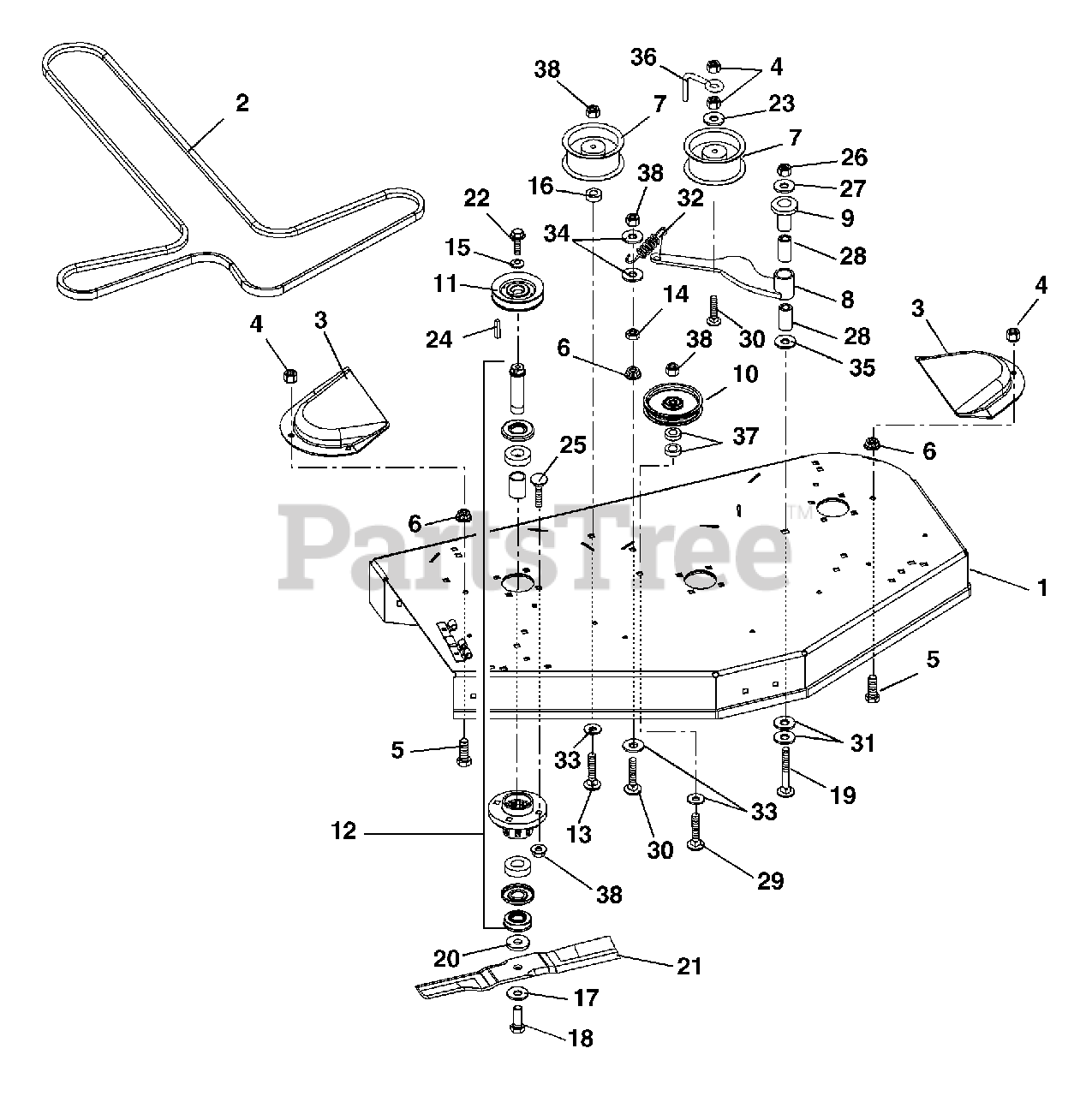

915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 004999) Mower Deck, Belt, Idlers And Blades Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Ariens 51508800

40" MOWER DK W/DECALS C-L2078

$

$

Not available

2

Ariens 07200001

V-BELT, HA-WRAPPED

$79.99

$

Usually ships in 4-12 days

0

3

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05980200

BLT-HEX .38-16X1.00 GR5 BKZC
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

8

Ariens 01600100

WELDMENT, IDLER ARM
(Superseded to 01600151)

$170.99

$

Usually ships in 4-12 days

0

9

Ariens 07053100

BEARING, PEDESTAL
(Superseded to 07000031)

$80.99

$

In Stock, only 1 left!

0

10

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

11

Ariens 01593800

SHEAVE, SPINDLE - 4.00 DIA.

$28.99

$

In Stock, only 1 left!

0

12

Ariens 51510000

ASSEMBLY, SPINDLE

$216.99

$

In Stock, Qty 14

0

13

Ariens 06213400

@BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$3.99

$

In Stock, only 2 left!

0

14

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

17

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, Qty 9

0

18

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

19

Ariens 06218600

@BLT-RDHDSQNK .50-13X3.75 G5YZ

$7.99

$

Usually ships in 4-12 days

0

20

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

21

Ariens 03498400

MOWER BLADE, 13.94"

Note: (13.88)

$19.99

$

In Stock, Qty 20+

0

22

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

24

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

26

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 10

0

29

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

30

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

31

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

32

Ariens 08337900

SPRING, EXTENSION

$25.99

$

Usually ships in 4-12 days

0

33

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

34

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

35

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

36

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

37

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

38

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
