915502 (1540) - Ariens Zoom 40" Zero-Turn Mower, 15hp Kawasaki (SN: 000101 - 004999) Fuel Tank Parts Diagram

Zoom 40" Zero-Turn Mower, 15hp Kawasaki

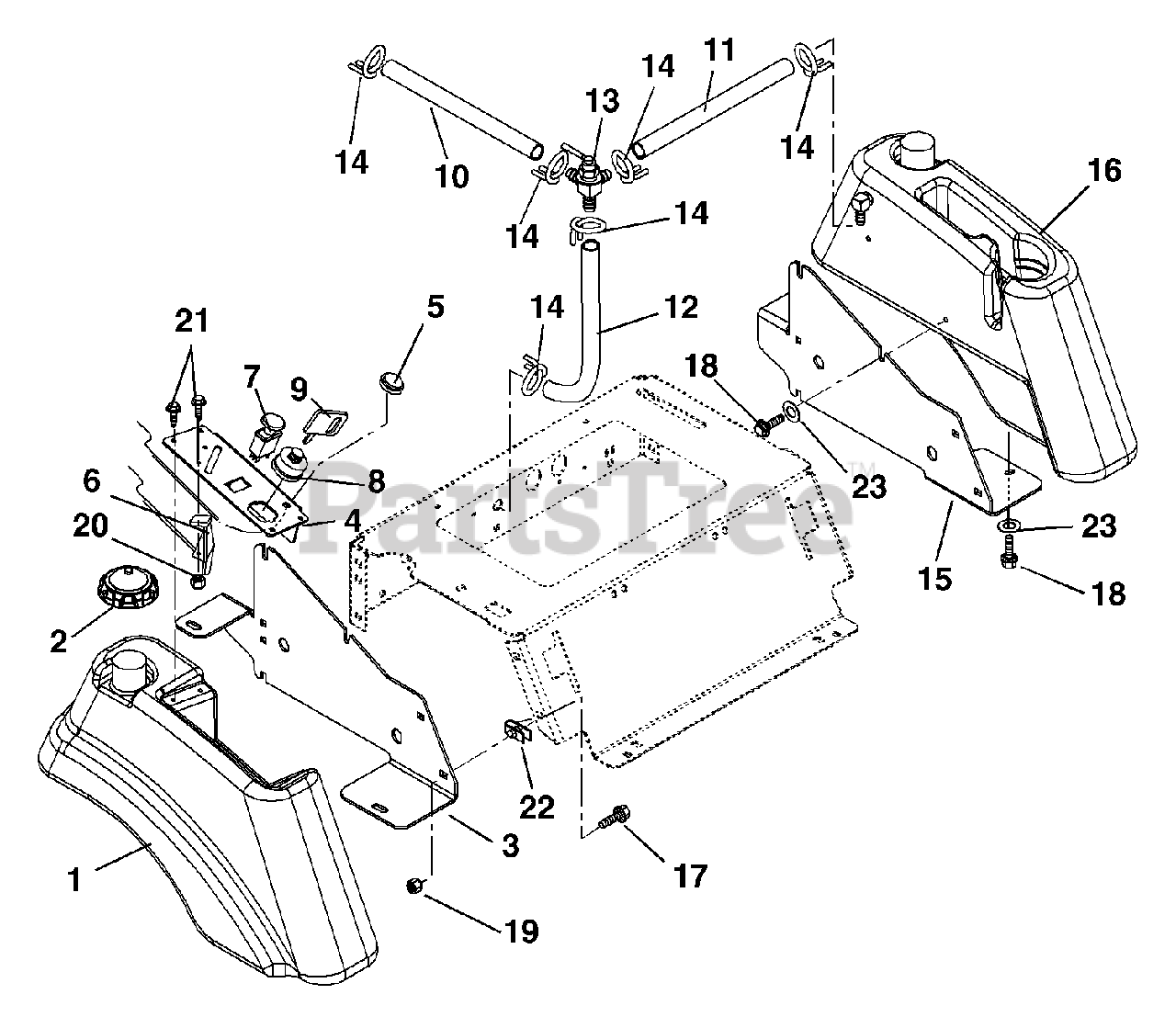

Fuel Tank Parts Diagram

  • Title
1

Ariens 01575800

FUEL TANK - RH

$

$

Not available

1

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: NOT SHOWN

$3.49

$

In Stock, Qty 20+

0

2

Ariens 01538400

FUEL CAP

$15.99

$

In Stock, only 1 left!

0

3

Ariens 01578751

SEAT PLATE/TANK SUPPORT RH

$

$

Not available

4

Ariens 01579451

BKT-CONTROL

$

$

Not available

5

Ariens 00529900

HOLE PLUG, PLASTIC .44 HOLE

$

$

Not available

6

Ariens 01588600

THROTTLE CABLE

$64.99

$

Usually ships in 4-12 days

0

7

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

8

Ariens 01588300

KEY SWITCH

$30.99

$

Usually ships in 4-12 days

0

9

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

10

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 09258200

VALVE, FUEL

$47.99

$

In Stock, Qty 20+

0

14

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 10

0

15

Ariens 01578851

SEAT PLATE LH

$

$

Not available

16

Ariens 01575700

FUEL TANK - LH

$

$

Not available

16

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: NOT SHOWN

$3.49

$

In Stock, Qty 20+

0

17

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

18

Ariens 07049600

BLT-SERHFWH .312-18X.75 YWZC

$2.99

$

In Stock, Qty 5

0

19

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 00548400

RETAINER, .38 PUSH-ON

$1.49

$

In Stock, only 2 left!

0

23

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0
