915501 (1844) - Ariens Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 005000 - 009999) Mower Deck, Belt, Idlers And Blades Parts Diagram

Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton

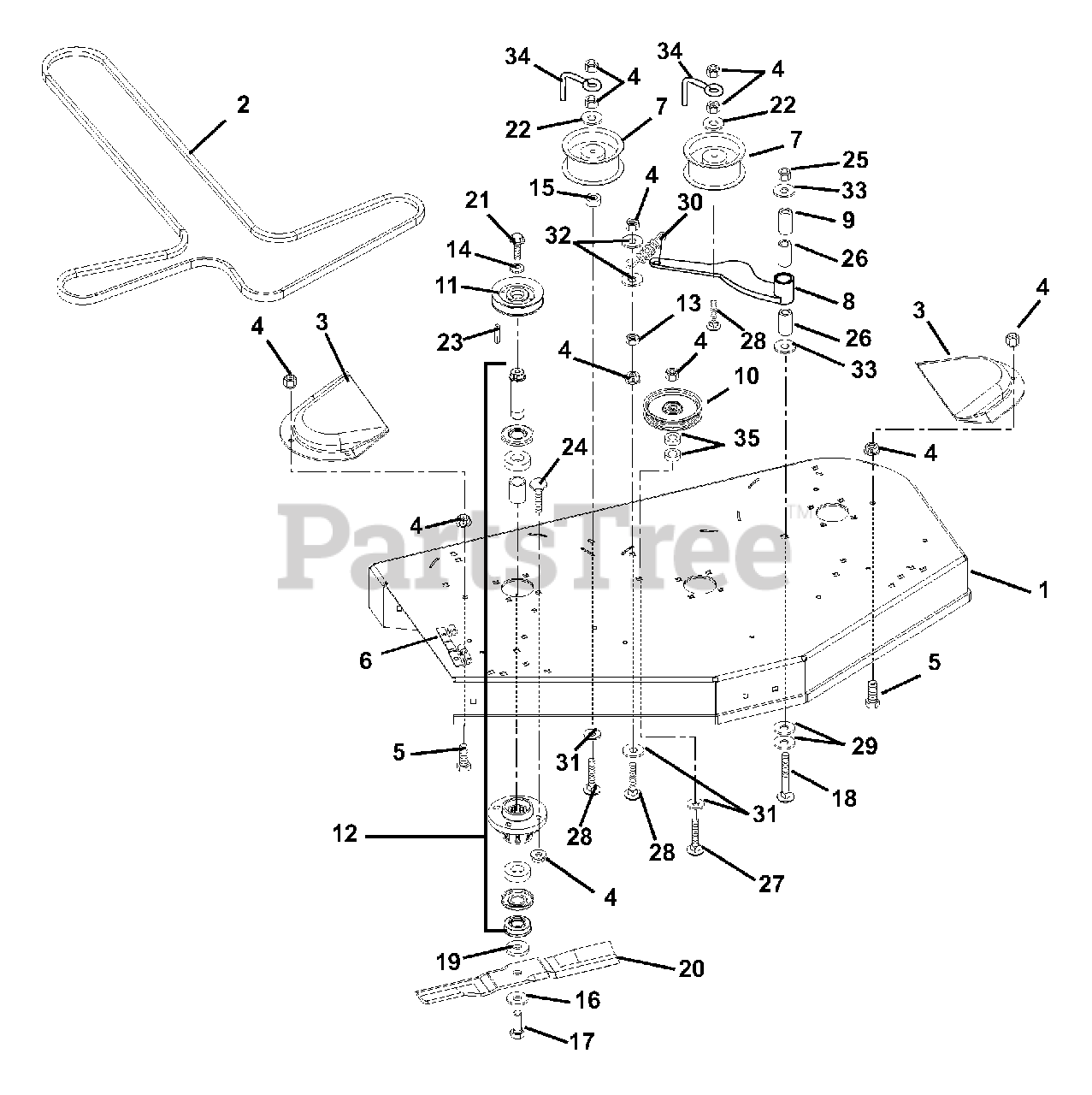

Mower Deck, Belt, Idlers And Blades Parts Diagram

  • Title

1

Ariens 51508800

40" MOWER DK W/DECALS C-L2078

Note: (051)

$

$

Not available

1

Ariens 51508900

40" MOWER DECK ASSY COMPLETE

Note: (051)

$2234.99

$

Usually ships in 4-12 days

0

1

Ariens 51509000

44" MOWER DK W/DECALS C-L2078

Note: (055, 501)

$

$

Not available

1

Ariens 51509100

44" MOWER DECK ASSY COMPLETE

Note: (055)

$2234.99

$

Usually ships in 4-12 days

0

1

Ariens 51510400

44" MOWER DECK CMPLT (GLOBAL)

Note: (501)

$1357.99

$

Usually ships in 4-12 days

0

1

Ariens 51509200

48" MOWER DK W/DECALS C-L2078

Note: (057)

$

$

Not available

1

Ariens 51509300

48" MOWER DECK ASSY COMPLETE

Note: (057)

$2930.99

$

Usually ships in 4-12 days

0

1

Ariens 51509400

52" MOWER DK W/DECALS C-L2078

Note: (059)

$

$

Not available

1

Ariens 51509500

52" MOWER DECK ASSY COMPLETE

Note: (059)

$2491.99

$

Usually ships in 4-12 days

0

2

Ariens 07241800

V-BELT, HA-WRAPPED

Note: (051)

$87.99

$

In Stock, only 1 left!

0

2

Ariens 07241700

V-BELT, HA-WRAPPED

Note: (055)

$94.99

$

In Stock, only 3 left!

0

2

Ariens 07241500

V-BELT, HA-WRAPPED

Note: (057)

$91.99

$

In Stock, only 1 left!

0

2

Ariens 07241600

V-BELT, HA-WRAPPED

Note: (059)

$91.99

$

In Stock, only 1 left!

0

2

Ariens 07242900

BELT,HA WRAPPED

Note: (501)

$91.99

$

Usually ships in 4-12 days

0

3

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 02709551

HINGE PLATE

$27.99

$

In Stock, only 1 left!

0

7

Ariens 07324100

IDLER FLANGED 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

8

Ariens 01600100

WELDMENT, IDLER ARM
(Superseded to 01600151)

$170.99

$

Usually ships in 4-12 days

0

9

Ariens 01581700

BSHG, SPCR .502X.997X2.03 PM

$5.99

$

In Stock, Qty 20+

0

10

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

11

Ariens 01593800

SHEAVE, SPINDLE - 4.00 DIA.

Note: (051)

$28.99

$

In Stock, only 1 left!

0

11

Ariens 01593700

SHEAVE, SPINDLE - 4.75 DIA.

Note: (059, 501)

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 01599400

SHEAVE, SPINDLE - 4.25 DIA.

Note: (055)

$26.99

$

In Stock, Qty 10

0

11

Ariens 01599500

SHEAVE, SPINDLE - 4.50 DIA.

Note: (057)

$28.99

$

In Stock, only 2 left!

0

12

Ariens 51510000

ASSEMBLY, SPINDLE

$216.99

$

In Stock, Qty 12

0

13

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

16

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

17

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

18

Ariens 06225000

@BLT-RDHDSQNK .50-13X3.50 G5YZ
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

19

Ariens 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

20

Ariens 03498400

MOWER BLADE, 13.94"

Note: (051)

$19.99

$

In Stock, Qty 20+

0

20

Ariens 01593900

BLADE, 15.50"

Note: (055)

$23.99

$

In Stock, Qty 20+

0

20

Ariens 04919100

BLADE, MOWER (16.19")

Note: (057)

$26.99

$

In Stock, Qty 20+

0

20

Ariens 04916400

BLADE, MOWER (18.00")

Note: (059)

$27.99

$

In Stock, Qty 20+

0

20

Ariens 01599800

BLADE, 15.5 CE (44" ZOOM)

Note: (501)

$22.99

$

Usually ships in 4-12 days

0

21

Ariens 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06611100

KEY, SQ .25 X .38 X .25

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06224200

@BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

25

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05435800

BRG, 1.00 X 1.12 X .75

$9.49

$

In Stock, Qty 6

0

27

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

28

Ariens 06225400

@BLT-RDHDSQNK .38-16X2.75 G5YZ
(Superseded to 06200316)

$3.99

$

In Stock, only 1 left!

0

29

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

30

Ariens 08337900

SPRING, EXTENSION

$25.99

$

Usually ships in 4-12 days

0

31

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06425500

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

33

Ariens 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$5.99

$

In Stock, only 3 left!

0

34

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

35

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 9

0
