915501 (1844) - Ariens Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 005000 - 009999) Engine, Exhaust, Belts And Idlers Parts Diagram

Zoom 44" Zero-Turn Mower, 18hp Briggs & Stratton

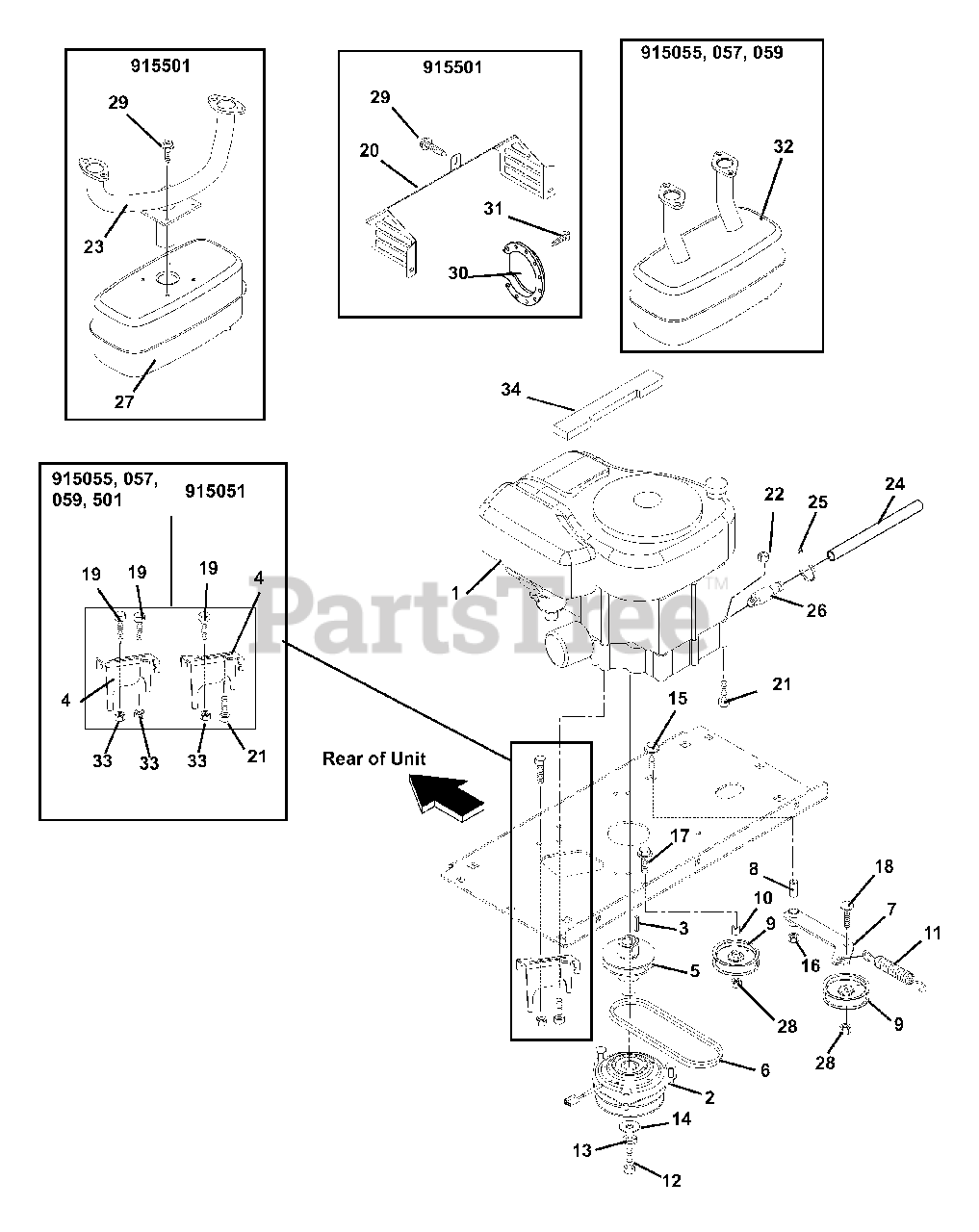

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

1

Ariens 51508300

ENGINE GROUP - 16HP

Note: (051)

$

$

Not available

1

Ariens 51512600

SERVICE ENGINE,21 HP KOHLER

Note: (057)

$

$

Not available

1

Ariens 51512700

SERVICE ENGINE,23 HP KOHLER

Note: (059)

$

$

Not available

1

Ariens 51510200

ENGINE GROUP - 18HP

Note: (501)

$

$

Not available

1

Ariens 08200006

ENGINE, 19HP KOHLER

Note: (055)

$

$

Not available

2

Ariens 00191700

CLUTCH,ELECTRIC PTO

$374.99

$

In Stock, only 2 left!

0

3

Ariens 06604300

KEY-SQ .25 X 1.50 X .25 SAE

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 00363751

STOP, CLUTCH

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 01602500

EXTENSION SHAFT
(Superseded to 00363200)

$323.99

$

Usually ships in 4-12 days

0

6

Ariens 07241400

BELT,HA WRAPPED

$52.99

$

In Stock, only 1 left!

0

7

Ariens 00186300

WMT, IDLER
(Superseded to 51516000)

$164.99

$

Usually ships in 4-12 days

0

8

Ariens 05516400

BSHG-SLV .500X.750X1.560

$5.99

$

In Stock, only 3 left!

0

9

Ariens 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

10

Ariens 00186400

BSHG,SPCR .41 X .75 X .88 PM

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 08336100

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

12

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

13

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

14

Ariens 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

15

Ariens 05966600

@BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

16

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06224300

@BLT-RDHDSQNK .38-16X2.00 G5YZ
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

19

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (051)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (055, 057, 059, 501)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01596800

MUFFLER GUARD, 40CI

Note: (055, 057, 059, 501)

$

$

Not available

21

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

22

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 01590800

PIPE, EXHAUST

Note: (057, 059, 53, 501)

$

$

Not available

24

Ariens 00191400

TUBE, OIL DRAIN

$9.49

$

Usually ships in 4-12 days

0

25

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

26

Ariens 07067800

VALVE, OIL DRAIN

$38.99

$

Usually ships in 4-12 days

0

27

Ariens 03654300

MUFFLER - EXHAUST

Note: (501)

$157.99

$

In Stock, only 2 left!

0

28

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (501)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 01523200

DEFLECTOR B+S 222573

Note: (501)

$

$

Not available

31

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

Note: (501)

$2.49

$

Usually ships in 4-12 days

0

32

Ariens 00185300

MUFFLER
(Superseded to 00391700)

Note: (055, 057, 059)

$134.99

$

In Stock, only 1 left!

0

33

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (055, 057, 059, 501)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

Note: (051)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 00277300

FOAM SEAL, 1.5"X3.5"X24"

Note: (055, 057, 059)

$

$

Not available
