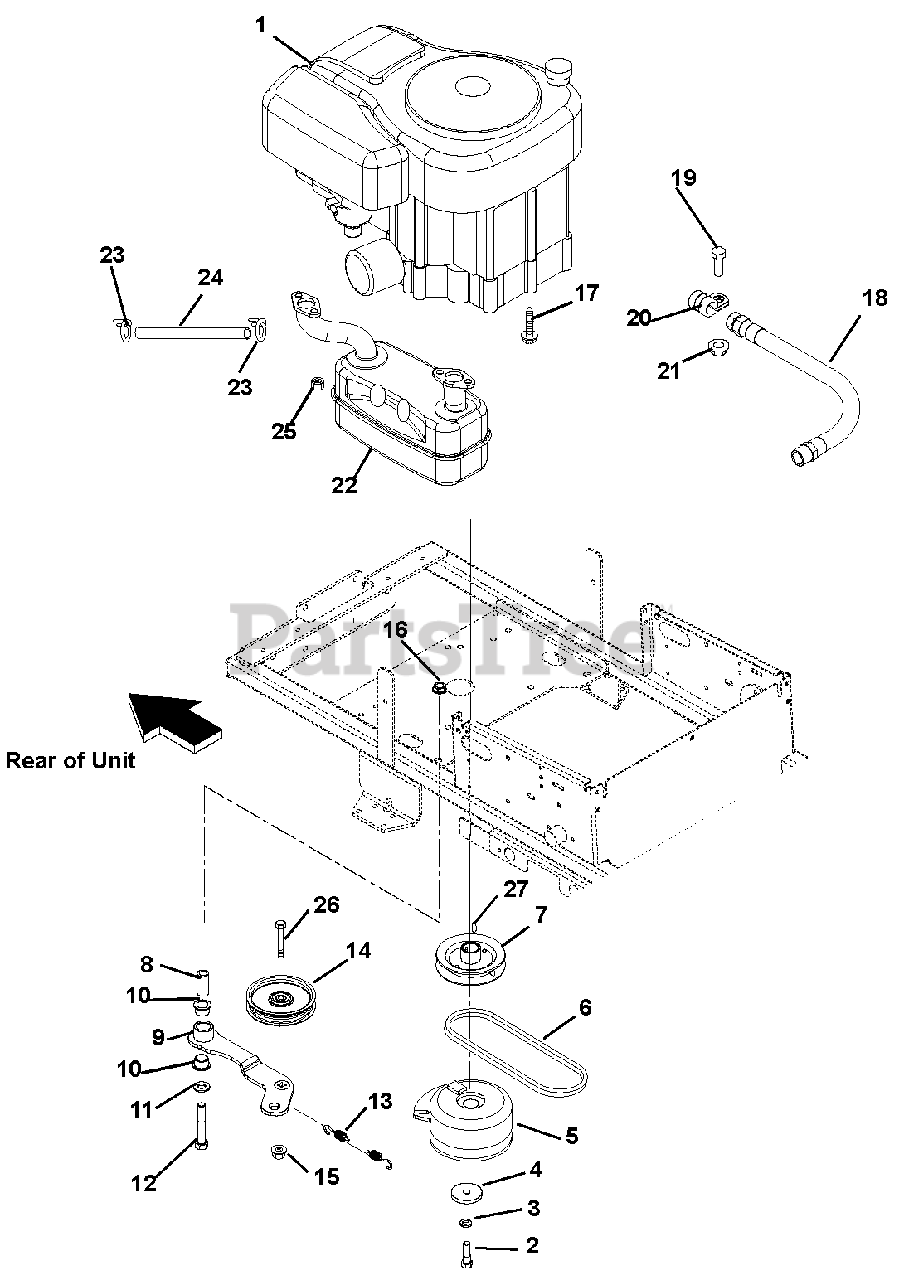

915404 (YJ 50) - EverRide Yellow Jacket 50" Zero-Turn Mower, 25hp Kohler Courage (SN: 000101 & Above) Engine, Exhaust, Belts And Idlers Parts Diagram

Yellow Jacket 50" Zero-Turn Mower, 25hp Kohler Courage

Engine, Exhaust, Belts And Idlers Parts Diagram

  • Title

4

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

5

Gravely 00480600

Electric Clutch (404)

Note: (404)

$387.99

$

Usually ships in 4-12 days

0

Gravely 03292300

Electric Clutch RMS (403)

Note: (403)

$374.99

$

Usually ships in 4-12 days

0

6

Gravely 07237900

V-Belt, A-RMAX x .50

$50.99

$

Usually ships in 4-12 days

0

7

Gravely 07300430

Pulley, V 3.75X1.0 A Section with Key

$103.99

$

Usually ships in 4-12 days

0

8

Gravely 05516400

Bushing, Sleave .500 x .750 x .1.560

$5.99

$

In Stock, only 4 left!

0

9

Gravely 00604000

Weldment, Idler

$103.99

$

In Stock, only 1 left!

0

10

Gravely 05500039

Bushing, Flange 0.75 x 0.875 x .625 x 1.125

$7.49

$

In Stock, only 2 left!

0

11

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05960000

Bolt, Hex .50-13 x 3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

13

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

14

Gravely 07312500

Idler, Flanged 4.00
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

15

Gravely 06545500

Nut, 3/8-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

18

Gravely 00588700

Hose Assembly, Oil Drive .38 x 11.5 OAL

$50.99

$

Usually ships in 4-12 days

0

19

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06900036

Clamp, Cushioned Steel .75

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 00391700

Muffler, Twin Kohler (404)

Note: (404)

$134.99

$

In Stock, only 1 left!

0

Gravely 03373800

Muffler, Kohler Single (403)

Note: (403)

$104.99

$

Usually ships in 4-12 days

0

23

Gravely 06939100

Clamp, Hose Wire .490/.510 x .092

$3.99

$

In Stock, Qty 15

0

24

Gravely 00924300

Gas Line, Bulk 28" LG
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06500007

Nut, Top Lock Flange 8 x 1.25 (404)

Note: (404)

$2.49

$

Usually ships in 4-12 days

0

Gravely 06500007

Nut, Top Lock Flange 8 x 1.25 (403)

Note: (403)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 05963300

Bolt, Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

27

Gravely 06602200

Key, Square .25 x 1.00 x .25 (included with part #7)

Note: (included with part #7)

$3.99

$

In Stock, only 2 left!

0

1

Gravely 08200401

Engine, 20HP Single Kohler (403)

Note: (403)

$

$

Not available

Gravely 08200117

Engine, 25HP Kohler Courage Twin w/Guard (404)

Note: (404)

$

$

Not available

2

Gravely 05900026

7/16 - 20 x 3-1/4 HHCS Grade 8

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0
