915402 (YJ 40) - EverRide Yellow Jacket 40" Zero-Turn Mower (SN: 000101 & Above) Front Axle, Tires and Bumper Parts Diagram

Yellow Jacket 40" Zero-Turn Mower

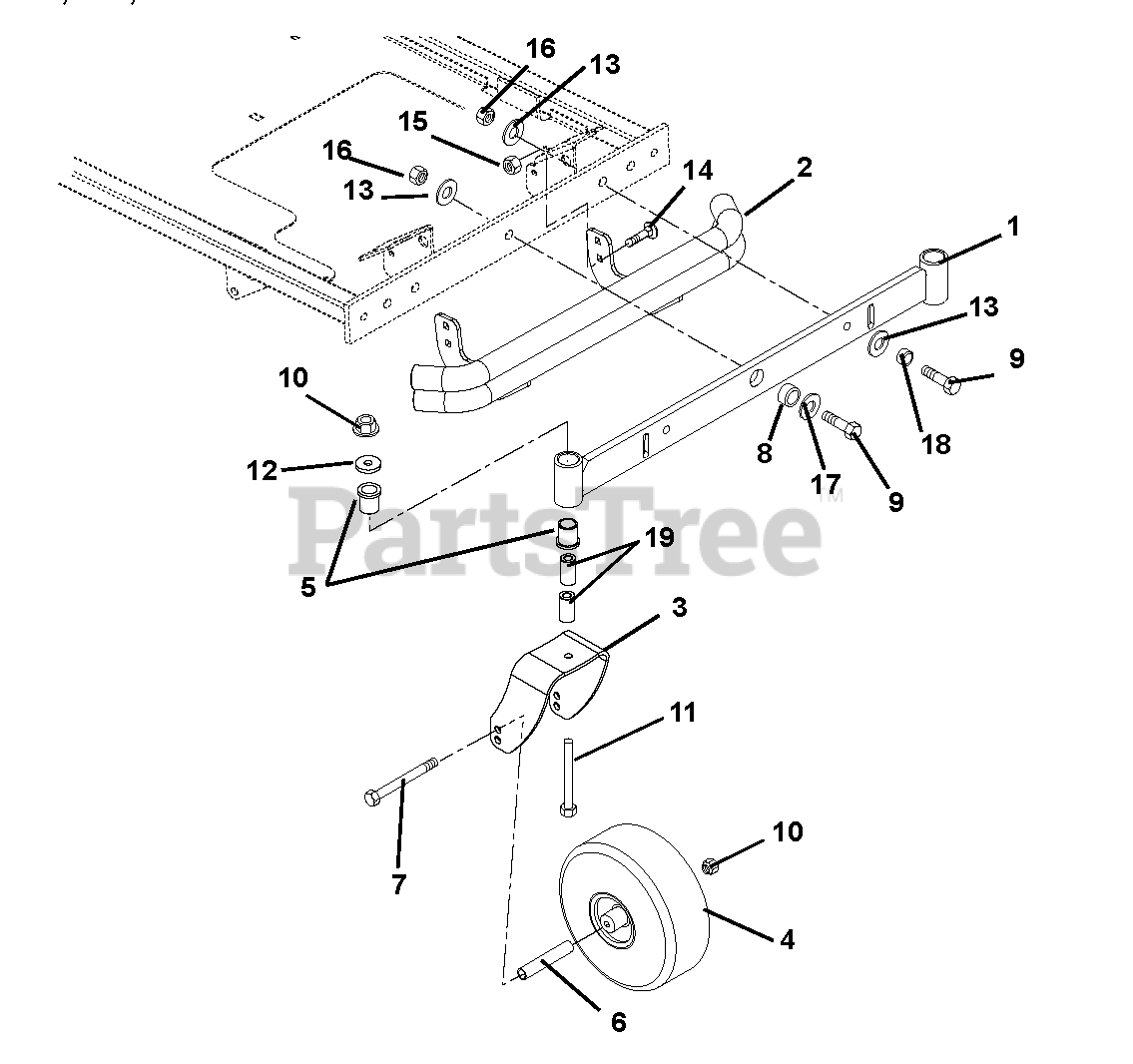

Front Axle, Tires and Bumper Parts Diagram

  • Title

1

1600861

Weldment, Front Axle

$

$

Not available

2

482151

Bumper, Zoom

$

$

Not available

3

469361

Fork, Caster

$

$

Not available

4

Gravely 01588100

Assembly, Tire 4 x 11- 4 Ply
(Superseded to 07100124)

$74.99

$

In Stock, Qty 20+

0

5

Gravely 05533600

Bushing, Flange 1.00 x 1.25 x 1.50 x 1.50
(Superseded to 05500934)

$6.99

$

In Stock, Qty 20+

0

6

Gravely 00278500

Spacer, Rolled Wheel

$13.99

$

In Stock, Qty 20+

0

7

Gravely 05964400

Bolt, Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, only 3 left!

0

8

Gravely 01600400

Bushing, Axle Pivot

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 05930700

Bolt-Hex .62-11X2.25 Grade 8

$3.99

$

In Stock, only 1 left!

0

10

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 05962200

Bolt, Hex .50-13 x 5.00 Grade 5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 06436400

Washer, Flat Steel .511 x 1.441 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06435200

Washer, Flat .64 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

15

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06540700

Nut, Locking Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

17

Gravely 06442900

Washer, Flat Steel .688 x 1.75 x .134
(Superseded to 06401032)

$1.49

$

In Stock, Qty 5

0

18

Gravely 00271800

Spacer, .750 D x .558 Long

$17.99

$

In Stock, only 1 left!

0

19

Gravely 00363100

Spacer, Caster

$6.99

$

In Stock, only 4 left!

0
