915400 (YJ 40) - EverRide Yellow Jacket 40" Zero-Turn Mower (SN: 000101 & Above) Transaxle, Dump Valves and Rear Wheels Parts Diagram

Yellow Jacket 40" Zero-Turn Mower

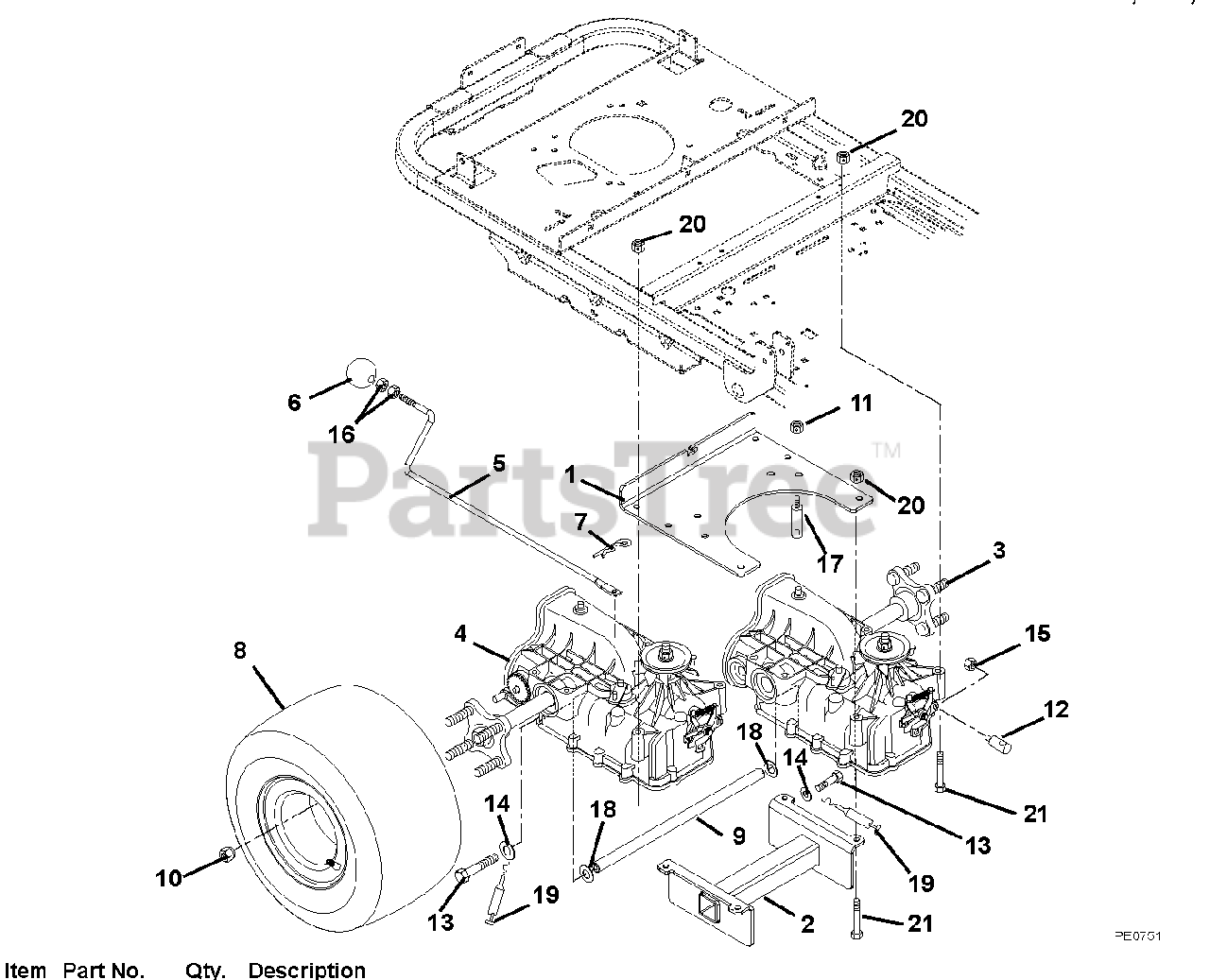

Transaxle, Dump Valves and Rear Wheels Parts Diagram

  • Title
1

Gravely 01578061

Bracket, Transmission Axle Support

$

$

Not available

2

Gravely 01578161

Weldment, Transmission Axle Brace

$

$

Not available

3

Gravely 00386300

Transaxle, Left Hand

$

$

Not available

Gravely 51514300

Brake Arm Kit, Left Hand Transaxle

$52.99

$

In Stock, only 1 left!

0

4

Gravely 00386200

Transaxle, Right Hand

$

$

Not available

Gravely 51514200

Brake Arm Kit, Right Hand Transaxle

$55.99

$

In Stock, only 1 left!

0

5

Gravely 01581600

Rod, Dump IZT

$

$

Not available

$21.99

$

In Stock, only 2 left!

0

7

Gravely 06713500

Pin, Hair
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 01587800

Assembly, Tire 9.5 x 18-2 Ply (401, 402)
(Superseded to 07100233)

Note: (401, 402)

$170.99

$

In Stock, only 2 left!

0

Gravely 01588700

Assembly, Tire 8.5 x 18-2 Ply (400)
(Superseded to 07100234)

Note: (400)

$155.99

$

Usually ships in 4-12 days

0

9

Gravely 01578200

Rod, Axle Brace

$

$

Not available

10

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06545500

Nut, .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 01568600

Rod Pivot

$51.99

$

Usually ships in 4-12 days

0

13

Gravely 05952600

Bolt, Hex .31-18 x 2.50 Grade 5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06545400

Nut .312-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 03622900

Shoulder Stud

$34.99

$

In Stock, only 2 left!

0

18

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 1 left!

0

19

Gravely 00929200

Adhesive Sealant

$

$

Not available

20

Gravely 06545400

Nut-.31-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05960600

Bolt-Hex .31-18 x 2.75 Grade 5
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0
