915400 (YJ 40) - EverRide Yellow Jacket 40" Zero-Turn Mower (SN: 000101 & Above) Seat and Seat Support Parts Diagram

Yellow Jacket 40" Zero-Turn Mower

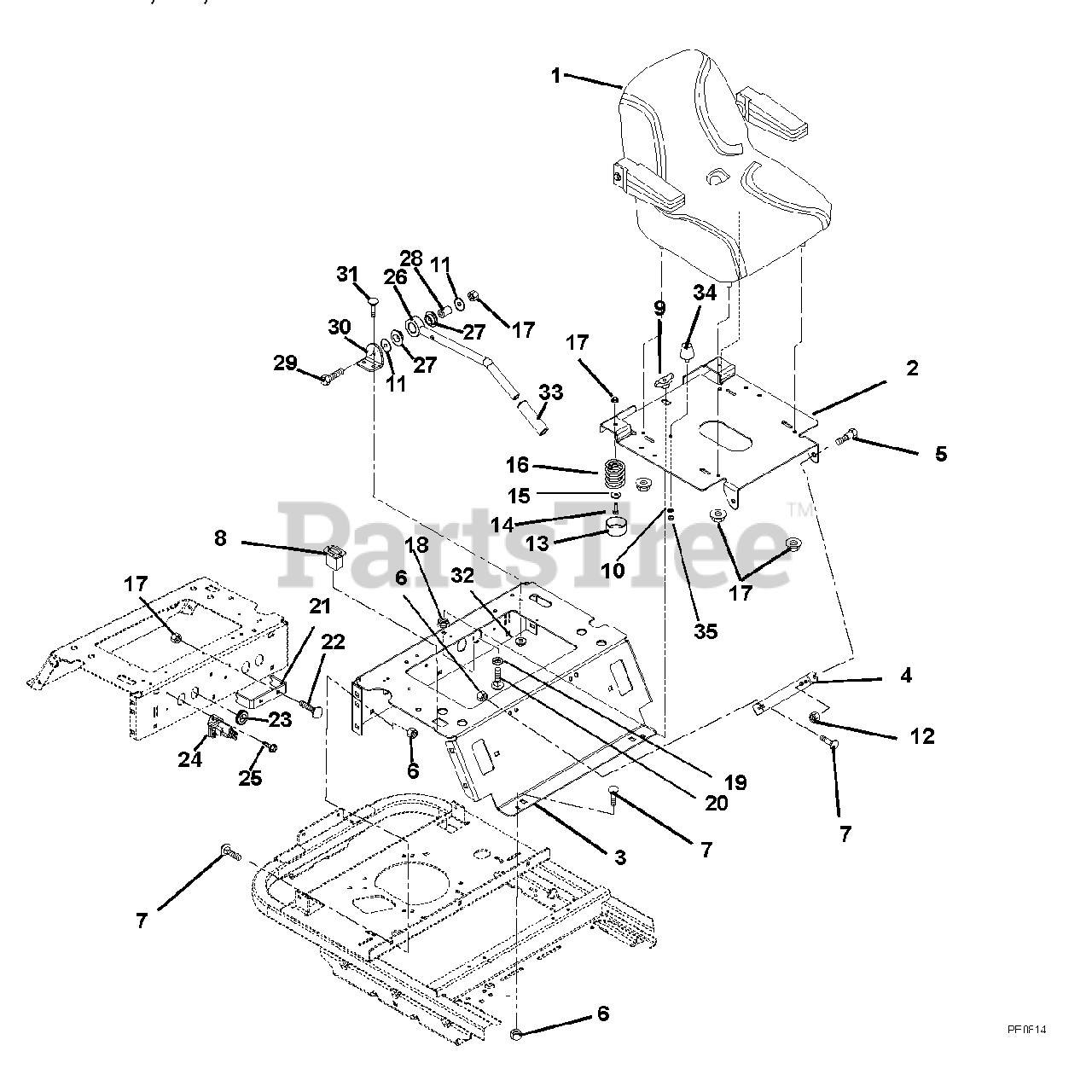

Seat and Seat Support Parts Diagram

  • Title

1

Gravely 00367800

Seat w/Armrests

$

$

Not available

Gravely 59205800

Armrest Kit (Fits 00367800)
(Superseded to 71509500)

Note: (Fits 00367800)

$129.99

$

In Stock, only 1 left!

0

2

Gravely 00440661

Seat Plate

$

$

Not available

3

Gravely 00360161

Seat Support

$

$

Not available

4

Gravely 00174161

Bracket, Seat Plate

$

$

Not available

5

Gravely 07056700

Bolt, Shoulder .375-16 x .135

$3.99

$

In Stock, only 2 left!

0

6

Gravely 06545500

Nut .38-16 Flange Nyloc
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 12

0

8

Gravely 00456600

Hour Meter, LCD
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

9

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

10

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06446900

Washer-Flat-Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

12

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 00337700

Hub Cap

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06437500

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 08300021

Spring, Seat

$20.99

$

Usually ships in 4-12 days

0

17

Gravely 06545400

Nut .312-18 Flange Nyloc
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06530400

Nut-Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06439200

Washer-Flat-Steel .505 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06212300

Bolt-Round Head Square Neck .31-18 x 2.75 Grade 5

$2.99

$

In Stock, only 4 left!

0

21

Gravely 00362161

Brake Rod Support

$

$

Not available

22

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 07506500

Grommet

$3.49

$

In Stock, only 1 left!

0

24

3679000

Solenoid

$

$

Not available

25

7411600

Screw, Tapping .250-20 x .37

$

$

Not available

26

379700

Weldment, Park Brake

$

$

Not available

27

5525200

Bushing, Flange .762 x 1.48 x .44

$

$

Not available

28

9235400

Spacer .328 x .76 x 1.01

$

$

Not available

29

5957400

Bolt, Hex .31-18 x 1.75 Grade 5

$

$

Not available

30

379400

Bracket, Brake Handle Pivot

$

$

Not available

31

Gravely 6219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5

$

$

Not available

32

Gravely 6543500

Nut, Locking Top Flange .25-20

$

$

Not available

33

380800

Grip

$

$

Not available

34

7533000

Bumper, Rubber

$

$

Not available

35

6534600

Nut, Spinlock Flange Nut, .312-24

$

$

Not available
