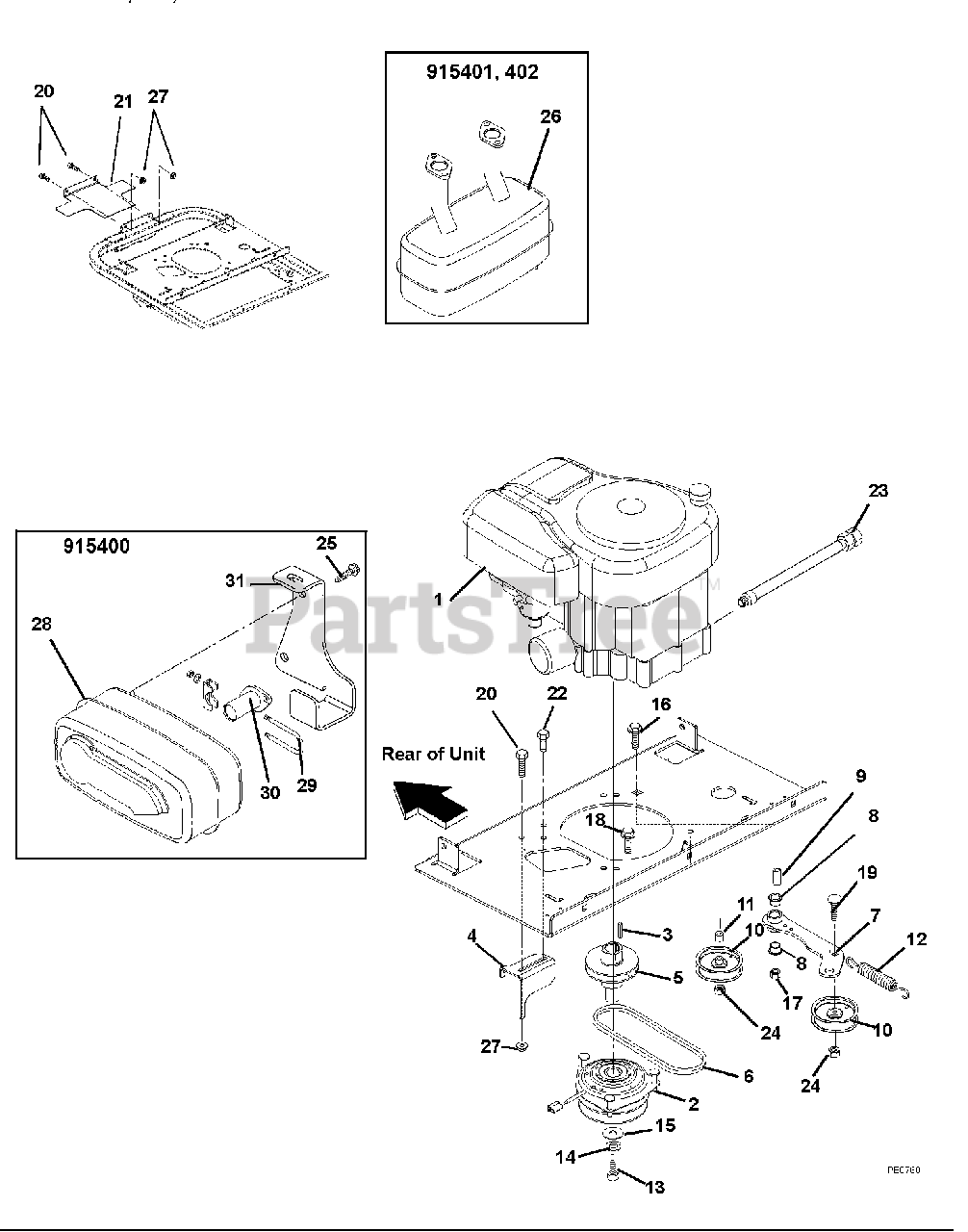

915400 (YJ 40) - EverRide Yellow Jacket 40" Zero-Turn Mower (SN: 000101 & Above) Engine, Exhaust, Belts and Idlers Parts Diagram

Yellow Jacket 40" Zero-Turn Mower

Engine, Exhaust, Belts and Idlers Parts Diagram

  • Title

1

Gravely 08200104

Engine, 18hp Kohler (400)

Note: (400)

$

$

Not available

Gravely 08200105

Engine, 20hp Kohler (401)

Note: (401)

$

$

Not available

Gravely 08200106

Engine, 23hp Kohler (402)

Note: (402)

$

$

Not available

2

Gravely 00191700

Clutch, Electric

$374.99

$

In Stock, only 2 left!

0

3

Gravely 06604300

Key, Square .25 x 1.50 x .25 SAE 8630 OR SAE 1035

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 00363761

Clutch Stop

$

$

Not available

5

Gravely 00363200

Extension Shaft

$323.99

$

Usually ships in 4-12 days

0

6

Gravely 07241400

V-Belt

$52.99

$

In Stock, only 1 left!

0

7

Gravely 00473500

Weldment, Idler

$129.99

$

In Stock, only 1 left!

0

8

Gravely 05500039

Bushing, Flange .075 x .0875 x .625 x 1.125

$7.49

$

In Stock, only 2 left!

0

9

Gravely 05516400

Bushing, Sleeve .50 x .75 x 1.56

$5.99

$

In Stock, only 3 left!

0

10

Gravely 07312500

Pulley, Idler 4.00
(Superseded to 07300101)

$62.99

$

In Stock, Qty 20+

0

11

Gravely 00186400

Spacer

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 08336100

Spring, Extension
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

13

Gravely 05966700

Bolt, Hex .44-20 x 4.50 Grade 8
(Superseded to 05901821)

$6.99

$

In Stock, Qty 7

0

14

Gravely 06309300

Washer, Locking .44 x .109 Regular
(Superseded to 06300121)

$2.99

$

In Stock, Qty 11

0

15

Gravely 06443600

Washer, Flat Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, only 3 left!

0

16

Gravely 05966600

Bolt-Hex .50-13 x 2.50 Grade 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

17

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06224300

Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

19

Gravely 06224100

Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

20

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 00276661

Heat Shield (401, 402)

Note: (401, 402)

$

$

Not available

22

Gravely 07414100

Screw-Tapping .38-16 x 1.00 Hex Washer Head Thread Rolling YZ (400)
(Superseded to 07417500)

Note: (400)

$3.99

$

In Stock, only 2 left!

0

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5 (401, 402)
(Superseded to 05901711)

Note: (401, 402)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 00595900

Tube, Oil Drain

$44.99

$

Usually ships in 4-12 days

0

24

Gravely 06537200

Nut, Locking, Jam, Center .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head (400)
(Superseded to 07400122)

Note: (400)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 00391700

Muffler (401, 402)

Note: (401, 402)

$134.99

$

In Stock, only 1 left!

0

27

Gravely 06545500

Nut-.38-16 Flange Nyloc (401, 402)
(Superseded to 06500726)

Note: (401, 402)

$1.49

$

In Stock, Qty 20+

0

Gravely 06545500

Nut-.38-16 Flange Nyloc ( 400)
(Superseded to 06500726)

Note: ( 400)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 00435100

Muffler (400)

Note: (400)

$92.99

$

In Stock, only 3 left!

0

29

Gravely 00255400

Muffler Clamp (400)

Note: (400)

$6.49

$

In Stock, only 4 left!

0

30

Gravely 00253900

Weldment, Manifold (400)
(Superseded to 00440000)

Note: (400)

$44.99

$

Usually ships in 4-12 days

0

31

Gravely 00432000

Muffler Bracket (400)

Note: (400)

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head Thread Rolling YZ (400)
(Superseded to 07417500)

Note: (400)

$3.99

$

In Stock, only 2 left!

0

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head Thread Rolling YZ (401, 40
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0
