915345 (ZT 42) - Gravely 42" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Front and Rear Wheels - 42" Parts Diagram

42" Zero-Turn Mower, Ariens AX 635cc Engine

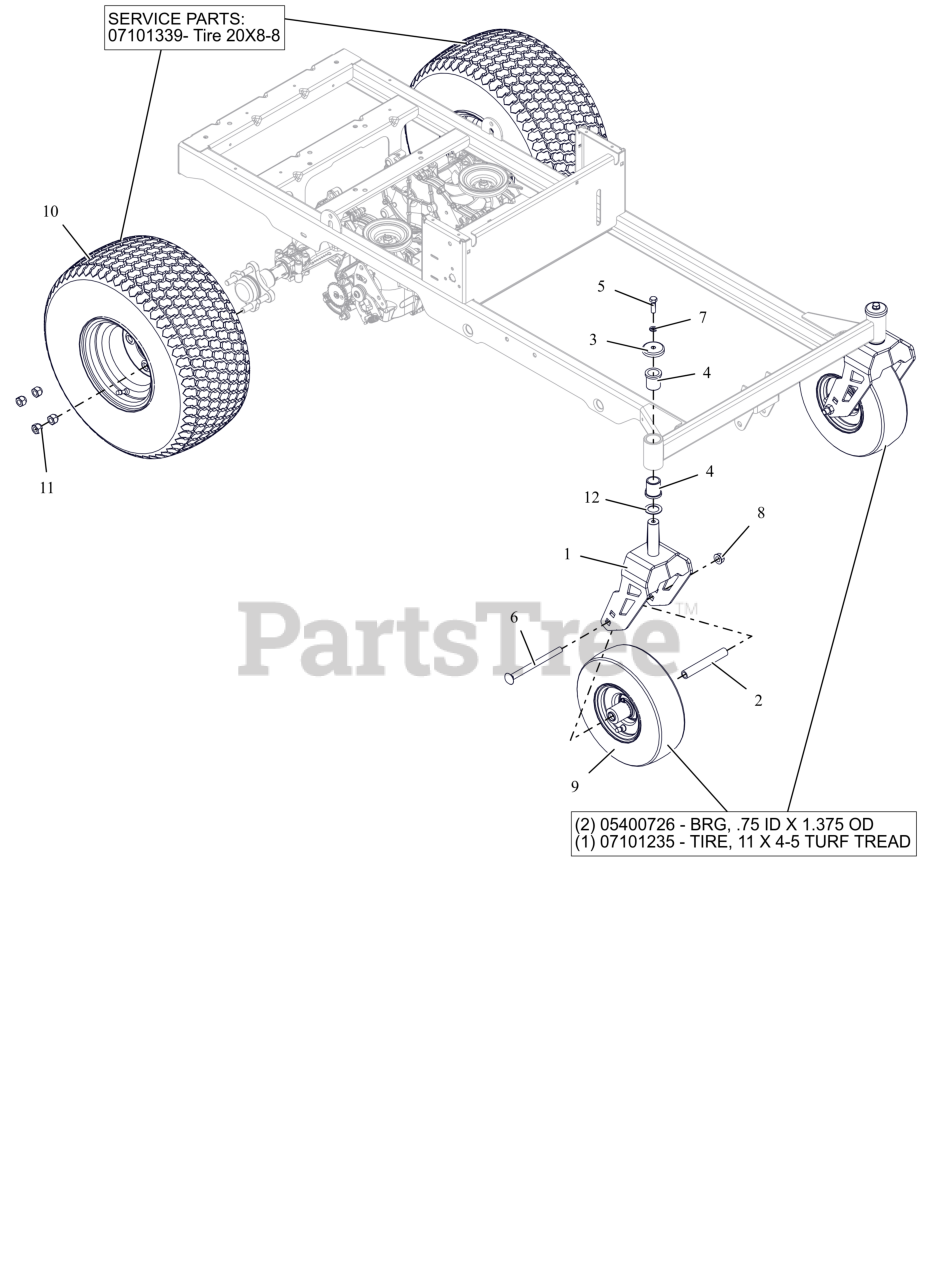

Front and Rear Wheels - 42" Parts Diagram

  • Title

1

Gravely 329705000

WLDMT, CASTER FORK-XD (RED)

$

$

Currently unavailable

2

Gravely 00278500

SPACER, ROLLED WHEEL

$14.99

$

In Stock, Qty 20+

0

3

Gravely 05290100

SHIELD, AXLE BEARING

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

In Stock, Qty 15

0

7

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

9

Gravely 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

9

Gravely 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$51.99

$

In Stock, Qty 14

0

10

Gravely 07101334

ASSM TIRE\WHEEL, 20 X 8 -8

$148.99

$

Usually ships in 4-12 days

0

10

Gravely 07101339

TIRE, 20X8-8

Note: Component Service Part

$79.99

$

In Stock, only 1 left!

0

11

Gravely 06500926

NUT, WHEEL .50-20 ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0
