915345 (ZT 42) - Gravely 42" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Engine - Ariens 635cc Parts Diagram

42" Zero-Turn Mower, Ariens AX 635cc Engine

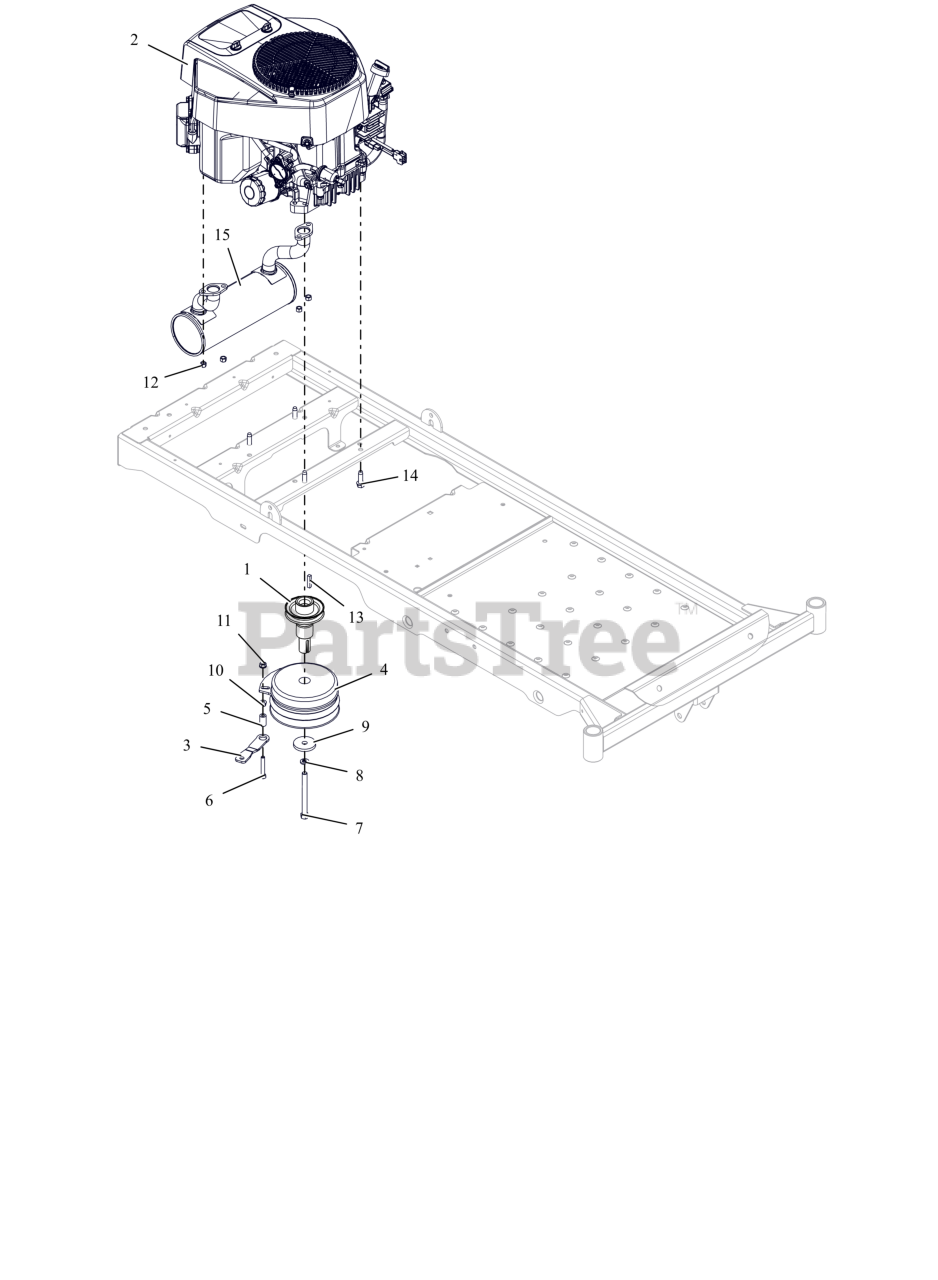

Engine - Ariens 635cc Parts Diagram

  • Title

1

Gravely 07350500

WLDMT, CRANK SHAFT ADAPTER- BRIGGS

$

$

Currently unavailable

2

Gravely 159340600

ENGINE, ARIENS 635cc

$

$

Currently unavailable

3

Gravely 03956700

BRKT, CLUTCH

$

$

Currently unavailable

4

Gravely 03972700

CLUTCH, 105 FT*LB MONO POLE

$258.99

$

In Stock, only 4 left!

0

5

Gravely 03980200

SPACER, RUBBER 5/16 IDX1.0 LG

$2.49

$

In Stock, Qty 12

0

6

Gravely 05901805

BLT, HEX .31-18X2.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 06300121

WSHR, LK-REG .438X.109 ZCC

$2.99

$

In Stock, Qty 8

0

9

Gravely 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, Qty 20+

0

10

Gravely 06500815

NUT,SPNLK-FLG .31-18 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 12

0

13

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

14

Gravely 07400128

SCR,TAP .375-16X1.25HWH TR ZCC

$2.99

$

In Stock, Qty 13

0

15

Gravely 32112900

WLDMT, LONCIN MUFFLER 635CC

$

$

Currently unavailable
