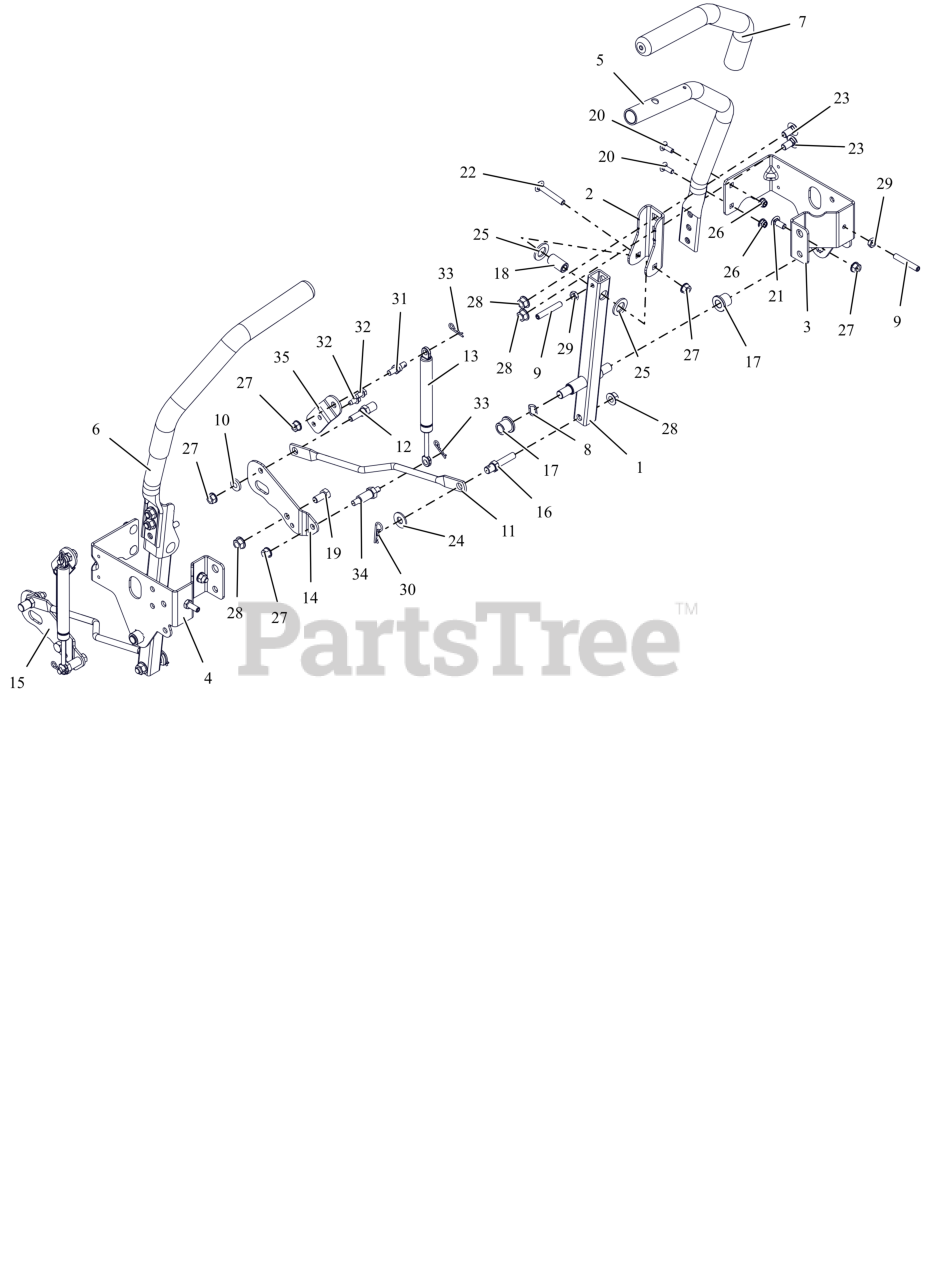

915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Steering Controls Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

Steering Controls Parts Diagram

  • Title

1

Gravely 05286851

WLDMT, LOWER CONTROL ARM (BLACK)

$

$

Currently unavailable

2

Gravely 05281951

ARM, CONTROL -UPPER (BLACK)

$

$

Currently unavailable

3

Gravely 05288151

BRKT, SPEED ADJ/SEAT PIVOT-LH (BLACK)

$

$

Currently unavailable

4

Gravely 05288251

BRKT, SPEED ADJ/SEAT PIVOT-RH (BLACK)

$

$

Currently unavailable

5

Gravely 09161651

WLDMT, CONTROL HANDLE -LH (BLACK)

$

$

Currently unavailable

6

Gravely 09161751

WLDMT, CONTROL HANDLE - RH (BLACK)

$

$

Currently unavailable

7

Gravely 04257400

GRIP, HANDLEBAR 15" FOAM

$15.99

$

In Stock, Qty 10

0

8

Gravely 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06100301

SCR-SET, .312-18X2.000 SS

$

$

Currently unavailable

10

Gravely 04147200

BSHG-FLG .316X.430X.225X.750

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 05282400

LINKAGE, STEERING

$

$

Currently unavailable

12

Gravely 05282500

STUD, STEERING LINK-REAR

$

$

Currently unavailable

13

Gravely 05160400

DAMPER, STRAIGHT MOUNT

$36.99

$

In Stock, Qty 20+

0

14

Gravely 03759351

PLATE, DAMPER RH

$13.99

$

Usually ships in 4-12 days

0

15

Gravely 03766000

PLATE, DAMPER

$

$

Currently unavailable

16

Gravely 05288400

STUD, STEERING LINK -FRONT

$

$

Currently unavailable

17

Gravely 05501001

BHSG-FLG .500X.750X.750X.125

$4.99

$

In Stock, Qty 20+

0

18

Gravely 05501411

BSHG, -SLV .342 X .627 X 1.171

$

$

Currently unavailable

19

Gravely 05901702

BLT,HEX .38-16X.75 G5 ZCC

$1.49

$

In Stock, Qty 12

0

20

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 6

0

21

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

22

Gravely 06200431

BLT, RHSSN .31-18X2.00 G5 ZCC

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

24

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06401130

WSHR, FRICTION

$4.99

$

In Stock, Qty 15

0

26

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 9

0

27

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06500909

NUT-JAM .312-18 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

30

Gravely 06700219

PIN, HAIR .09 X 1.50 ZCC

$2.99

$

In Stock, Qty 9

0

31

Gravely 05171400

COUPLER, DAMPER MOUNT

$6.99

$

In Stock, only 2 left!

0

32

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

33

Gravely 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

34

Gravely 09157100

COUPLER, DAMPER MOUNT (LOWER)

$

$

Currently unavailable

35

Gravely 09155951

PLATE, DAMPER TOP MOUNTING (BLACK)

$

$

Currently unavailable
