915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Idlers and Sheaves - 34" Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

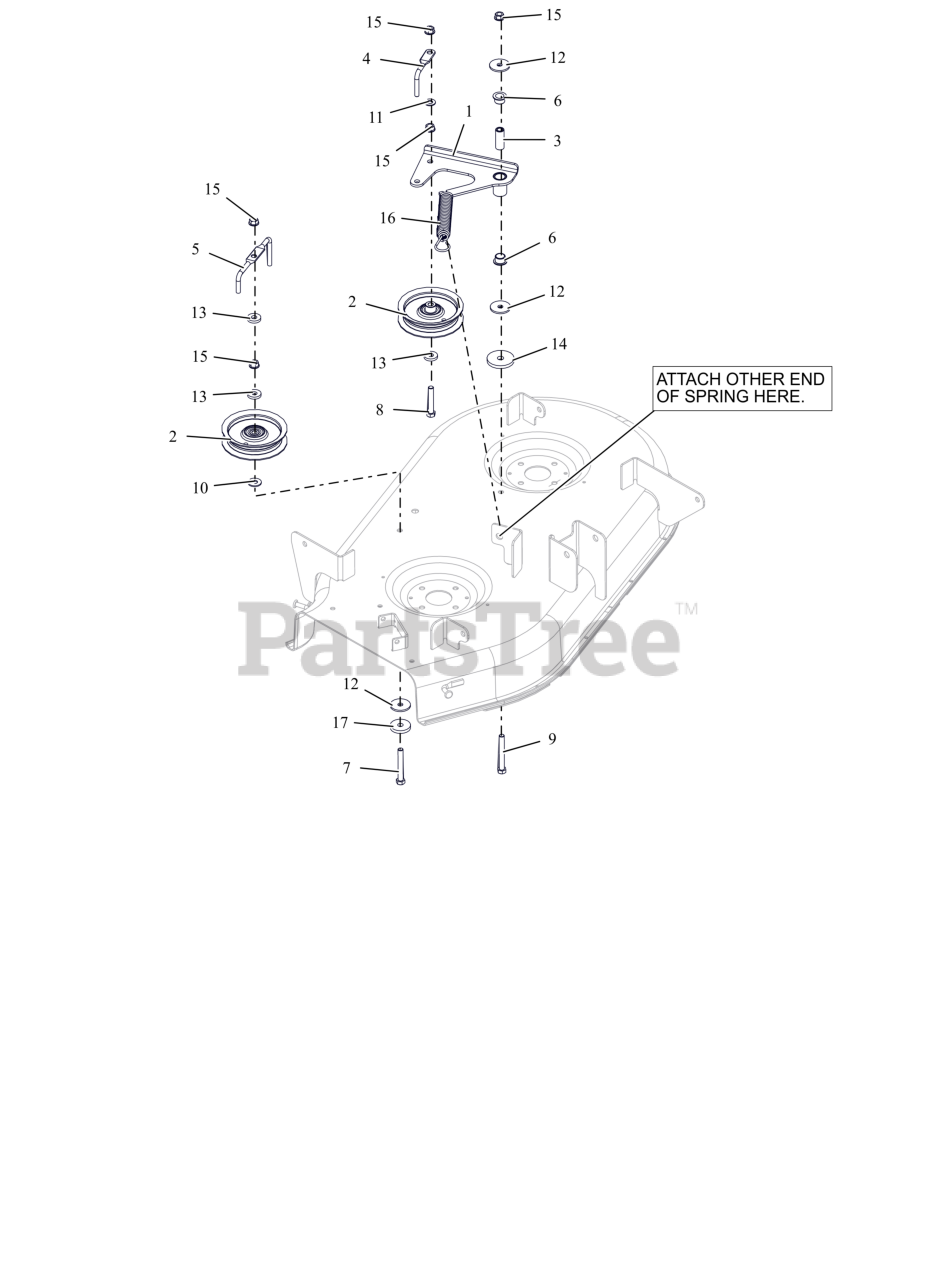

Idlers and Sheaves - 34" Parts Diagram

  • Title

1

Gravely 04430853

WLDMT, IDLER ARM (RED)

$

$

Currently unavailable

2

Gravely 07350100

IDLER, FLAT - 4.06" X .75"

$48.99

$

In Stock, Qty 20+

0

3

Gravely 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Gravely 03828800

WIREFORM-BELT FINGER

$9.49

$

In Stock, Qty 12

0

5

Gravely 03974100

BELT FINGER

$11.99

$

In Stock, Qty 5

0

6

Gravely 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

7

Gravely 05901611

BLT, HEX .38-16X2.75 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

8

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

9

Gravely 05901814

BLT, HEX .38-16X3.00 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06401106

WSHR, FLT .380X1.50X.125 ZCC

$3.49

$

In Stock, Qty 20+

0

13

Gravely 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06401111

WSHR, FLT .469X2.00X.250 ZCC

$6.99

$

In Stock, Qty 20+

0

15

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Gravely 08320300

SG-TENS .135X.98X6.0 WLD 62

$18.99

$

In Stock, Qty 20+

0

17

Gravely 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0
