915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Fuel System Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

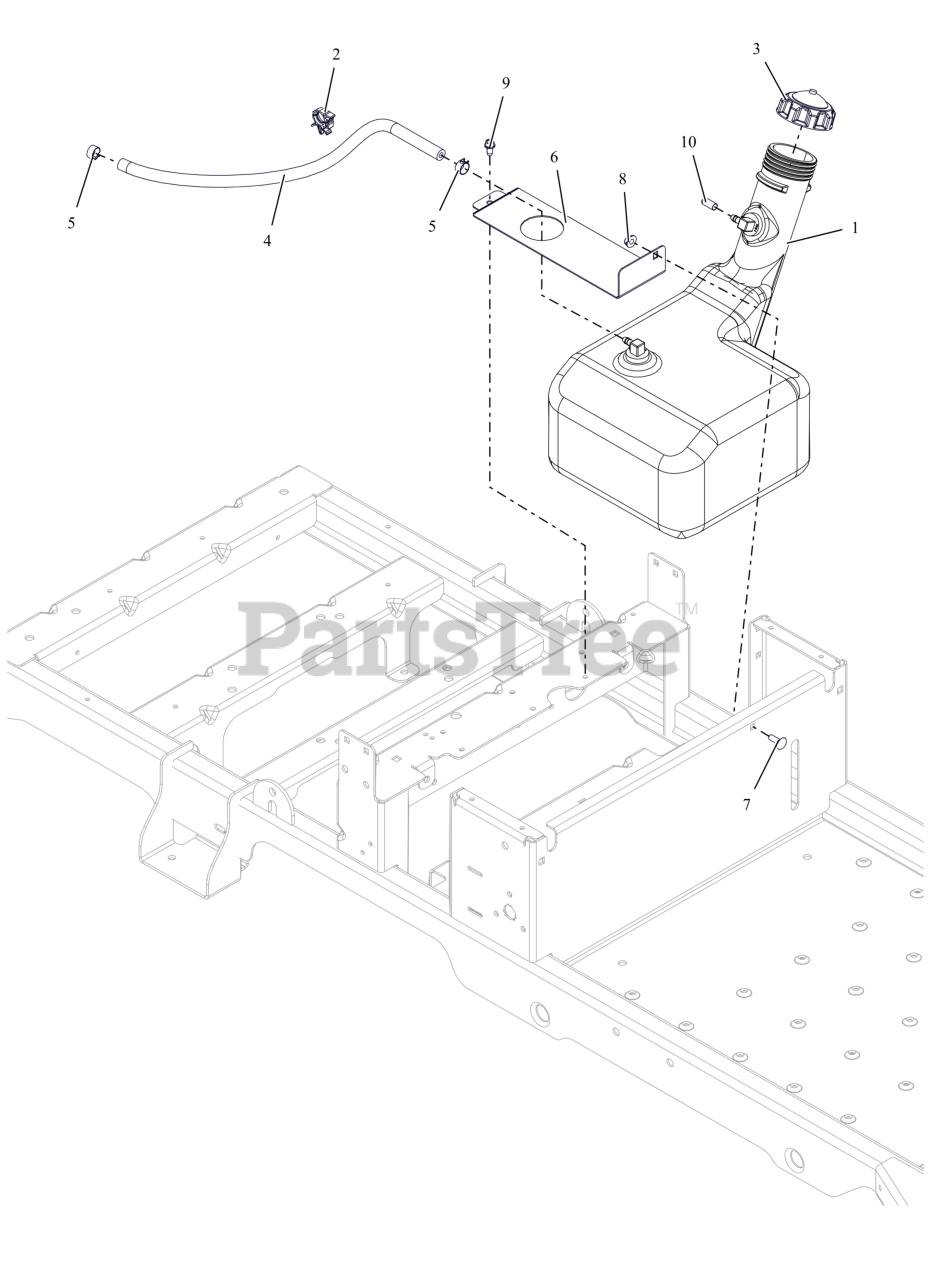

Fuel System Parts Diagram

  • Title
1

Gravely 05244700

ASM, FUEL TANK

$

$

Currently unavailable

2

Gravely 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 01538400

FUEL CAP

$15.99

$

In Stock, Qty 20+

0

4

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

5

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

6

Gravely 03771451

BRKT, TANK STRAP

$19.99

$

Usually ships in 4-12 days

0

7

Gravely 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 5

0

8

Gravely 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 12

0

9

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

10

Gravely 143800100

VINYL CAP, 7.5X19MM BLACK

$

$

Currently unavailable
