915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Front and Rear Wheels - 34" Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

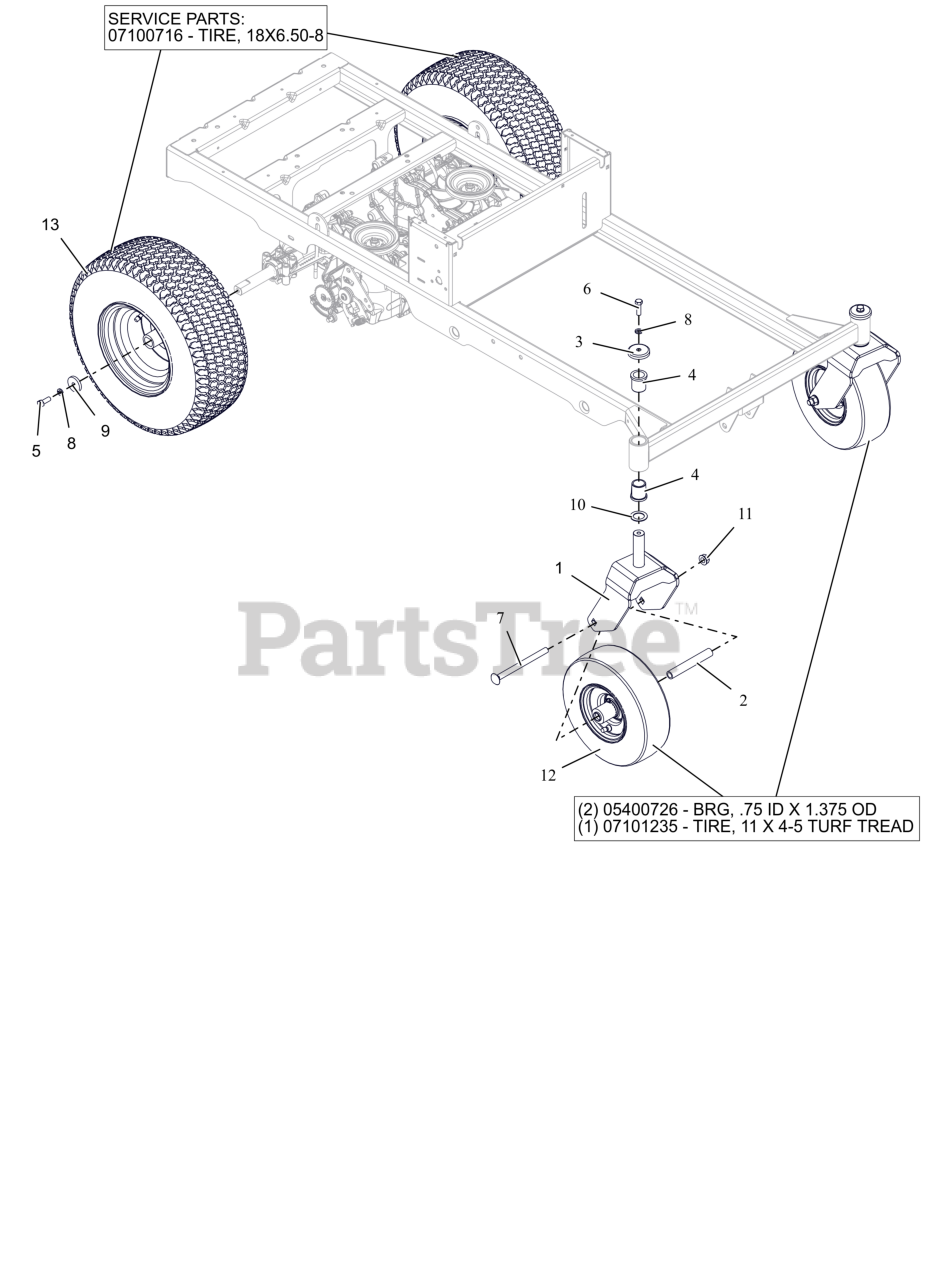

Front and Rear Wheels - 34" Parts Diagram

  • Title

1

Gravely 05266153

WLDMT- CASTER FORK-X

$88.99

$

Usually ships in 4-12 days

0

2

Gravely 00278500

SPACER, ROLLED WHEEL

$14.99

$

In Stock, Qty 20+

0

3

Gravely 05290100

SHIELD, AXLE BEARING

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

5

Gravely 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$1.99

$

In Stock, Qty 20+

0

6

Gravely 05901724

BLT, HEX .38-16X1.25 G5 ZCC

$1.49

$

In Stock, Qty 19

0

7

Gravely 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

In Stock, Qty 14

0

8

Gravely 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

11

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

12

Gravely 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

12

Gravely 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

12

Gravely 07101235

TIRE, 11X4-5 TURF TREAD

Note: Component Service Part

$51.99

$

In Stock, Qty 13

0

13

Gravely 07101129

ASM, WHL/TIRE 18X6.50-8 DHUB

$136.99

$

Usually ships in 4-12 days

0

13

Gravely 07100716

TIRE, 18X6.5-8

Note: Component Service Part

$68.99

$

Usually ships in 4-12 days

0
