915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Electrical Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

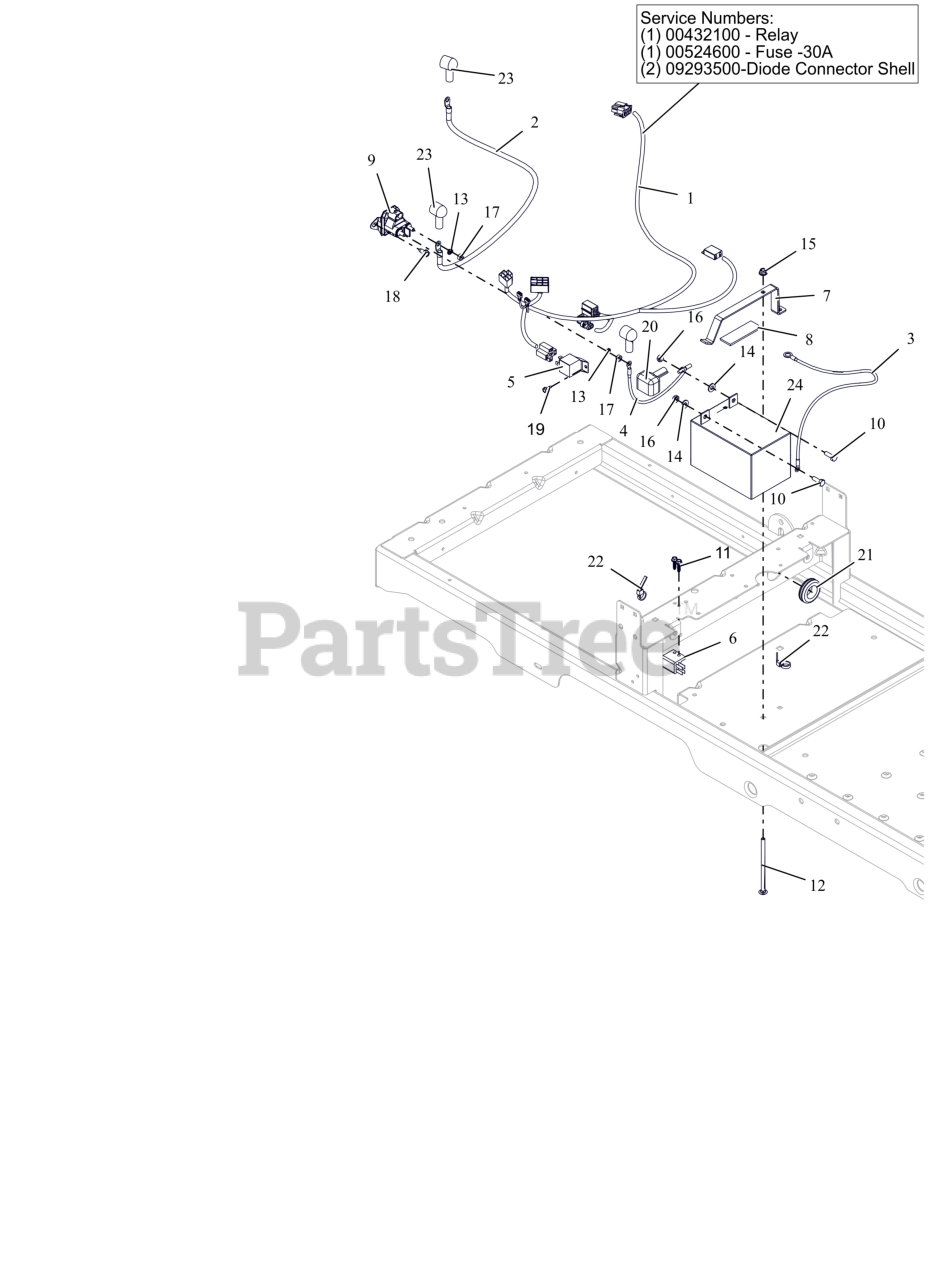

Electrical Parts Diagram

  • Title

1

Gravely 05296700

HARNESS- EDGE/ZT WIRE

$116.99

$

In Stock, only 2 left!

0

1

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: Component Service Part

$22.99

$

In Stock, Qty 20+

0

1

Gravely 00524600

FUSE, 30 AMP.

Note: Component Service Part

$

$

Not available

1

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

Note: Component Service Part

$11.99

$

In Stock, Qty 20+

0

2

Gravely 04783400

CABLE,POS W/(2)1/4 RING 21.5LG

$9.49

$

Usually ships in 4-12 days

0

3

Gravely 04249900

CABLE, NEGATIVE 26" 6 GA.

$34.99

$

In Stock, only 1 left!

0

4

Gravely 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

In Stock, only 2 left!

0

5

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

6

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

7

Gravely 04385351

HOLDDOWN, BATTERY, U1&190CCA

$25.99

$

Usually ships in 4-12 days

0

8

Gravely 04850000

PAD,RBR 1.0"X3.0" W/ADHESIVE

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 05167200

SOLENOID, STARTER (SEALED)

$45.99

$

In Stock, Qty 20+

0

10

Gravely 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 17

0

11

Gravely 06100232

SCR, PLASTITE-HWH 0.2 X 0.75 ZC120

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06200308

BLT, RHSN .25-20X4.50 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

13

Gravely 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 5

0

15

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 9

0

16

Gravely 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 1 left!

0

17

Gravely 06500925

NUT-STD M6-1.0 ZCC

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

19

Gravely 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

20

Gravely 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

22

Gravely 07517300

CABLE TIE LG 5-1/2

$

$

Not available

23

Gravely 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, Qty 9

0

24

Gravely 458141900

YUASA 895UR1 BATTERY

$

$

Currently unavailable
