915344 (ZT 34) - Gravely 34" Zero-Turn Mower, Ariens AX 635cc Engine (SN: A0406202 & Above) Deck Lift - 34" (Continued) Parts Diagram

34" Zero-Turn Mower, Ariens AX 635cc Engine

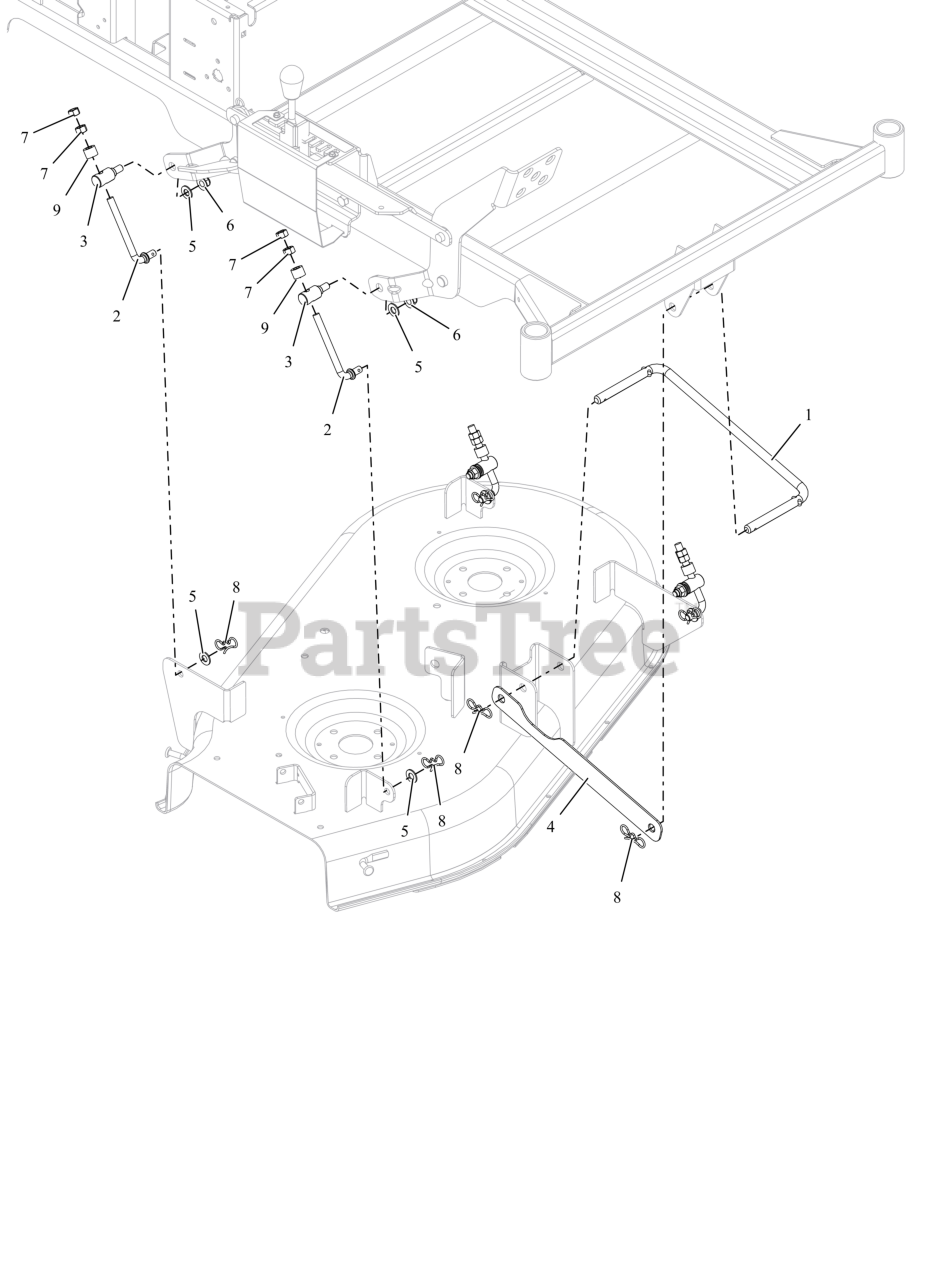

Deck Lift - 34" (Continued) Parts Diagram

  • Title
1

Gravely 04377600

WIREFORM- DRAG LINK

$23.99

$

In Stock, Qty 20+

0

2

Gravely 04377700

WIREFORM- DECK ADJUSTMENT

$17.99

$

In Stock, Qty 14

0

3

Gravely 04377800

TRUNNION- DECK ADJUSTER

$

$

Not available

4

Gravely 04424900

STRAP- DRAG LINK

$20.99

$

In Stock, Qty 5

0

5

Gravely 06401013

WSHR,FLT .406X.812X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06500726

NUT,NYL-FLG .38-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06500917

NUT-STD .375-16 G2 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06700220

PIN, BOWTIE .091X1.875 ZCC

$2.49

$

In Stock, Qty 20+

0

9

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, Qty 20+

0
