915342 - Ariens Ikon-XD 42" Zero-Turn Mower, 364cc Loncin (SN: A0396329 & Above) Deck Lift Parts Diagram
Ikon-XD 42" Zero-Turn Mower, 364cc Loncin

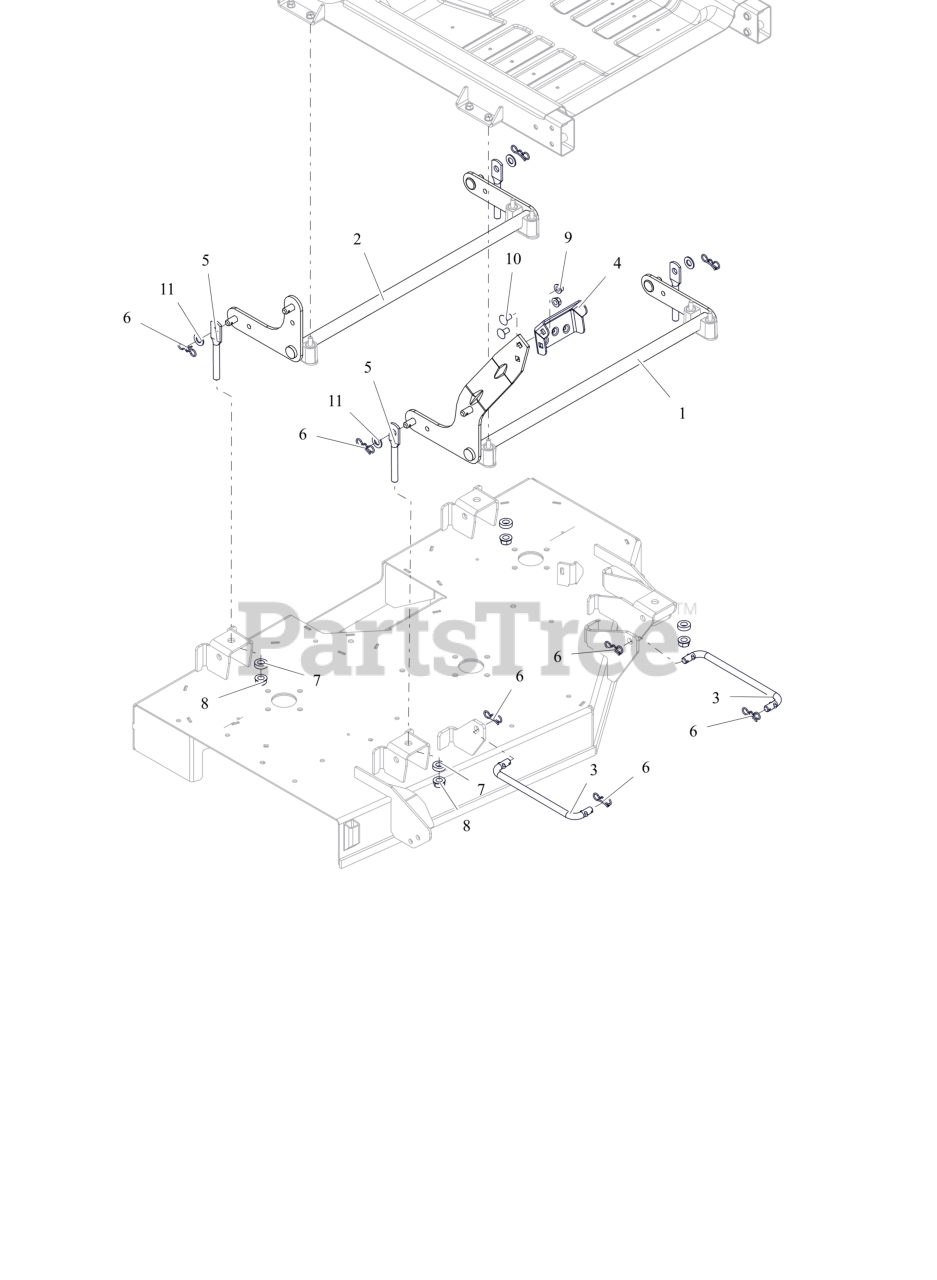

Deck Lift Parts Diagram
Ariens 05246059
WLDMT, FRONT DECK LIFT PIVOT
$131.99
$
Usually ships in 4-12 days
Ariens 05246159
WLDMT, REAR DECK PIVOT
$68.99
$
Usually ships in 4-12 days
Ariens 02004500
LINK, DRAG
$19.99
$
In Stock, only 2 left!
Ariens 04869259
PEDAL, DECK LIFT (BOLT ON)
$18.99
$
Usually ships in 4-12 days
Ariens 05113900
LINK,DECK (HOLE-LONG)
$7.49
$
In Stock, only 2 left!
Ariens 06700220
PIN, BOWTIE .091X1.875 ZCC
$2.49
$
In Stock, Qty 20+
Ariens 07500417
WASHER, RUBBER
$2.49
$
In Stock, Qty 20+
Ariens 06500902
NUT-LK-CTR-FLG .500-13 GG ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06500901
NUT-LK-CTR-FLG .375-16 GF ZCC
$1.49
$
In Stock, Qty 20+
Ariens 06200432
BTL,RHSSN .375-16 X 0.75 G5 FPB
$3.99
$
In Stock, only 1 left!
Ariens 06443300
WSHR-FL-NYL .518X1.000X.080
$0.99
$
In Stock, Qty 20+
