915339 - Ariens Edge 42" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Parking Brake Parts Diagram

Edge 42" Zero-Turn Mower, Ariens AX 635cc engine

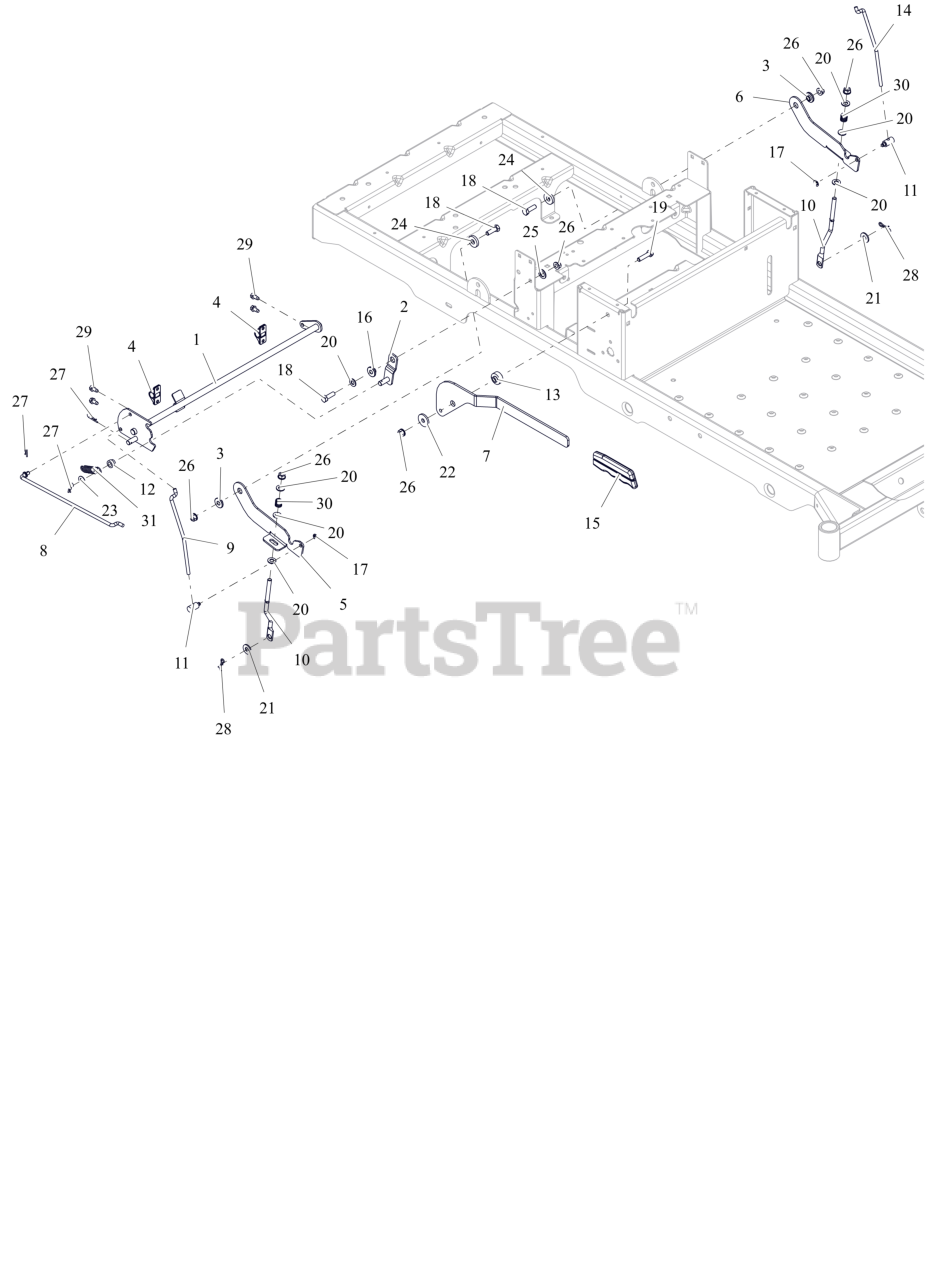

Parking Brake Parts Diagram

  • Title

1

Ariens 03761100

WELDMENT, BRAKE SHAFT
(Superseded to 03761151)

$31.99

$

Usually ships in 4-12 days

0

2

Ariens 03759200

WELDMENT,DETENT ARM

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

4

Ariens 03757501

BUSHING-.50 CLAMP BLOCK MOLDED

$3.99

$

In Stock, only 2 left!

0

5

Ariens 03758900

LATCH,RH NETURAL

$18.99

$

Usually ships in 4-12 days

0

6

Ariens 03759000

LATCH,LH NETURAL
(Superseded to 03759067)

$

$

Not available

7

Ariens 03759151

HANDLE, PARKING BRAKE

$

$

Not available

8

Ariens 03759400

LINK, BRAKE HANDLE

$14.99

$

In Stock, only 1 left!

0

9

Ariens 03759500

LINK, NEUTRAL RH

$18.99

$

In Stock, only 2 left!

0

10

Ariens 03759600

LINK, BRAKE COG

$7.49

$

In Stock, only 1 left!

0

11

Ariens 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

12

Ariens 03764900

ROLLER

$3.49

$

Usually ships in 4-12 days

0

13

Ariens 03769400

SPCR,BRAKE .32X.49X.192X1.00

$

$

Not available

14

Ariens 03823300

LINK, NEUTRAL LH

$13.99

$

Usually ships in 4-12 days

0

15

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

16

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

17

Ariens 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

19

Ariens 05901803

BLT, HEX .31-18X1.25 G5 ZCC

$2.49

$

In Stock, Qty 12

0

20

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

22

Ariens 06401104

WSHR, FLT .340X1.125X.135 ZCC

$3.99

$

In Stock, only 2 left!

0

23

Ariens 06401107

WSHR, FLT .385X.745X.030 ZCC

$2.49

$

In Stock, only 1 left!

0

24

Ariens 06401108

WSHR, FLT .406X1.00X.188 ZCC

$2.49

$

In Stock, Qty 20+

0

25

Ariens 06401114

WSHR, FLT .520X.827X.062 ZCC

$2.49

$

In Stock, only 2 left!

0

26

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06700229

PIN, BOWTIE #72 ZCC

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

30

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 7

0

31

Ariens 08326700

SG-TENS .072X.565X1.87

$20.99

$

In Stock, only 1 left!

0
