915339 - Ariens Edge 42" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Muffler Guarding Parts Diagram

Edge 42" Zero-Turn Mower, Ariens AX 635cc engine

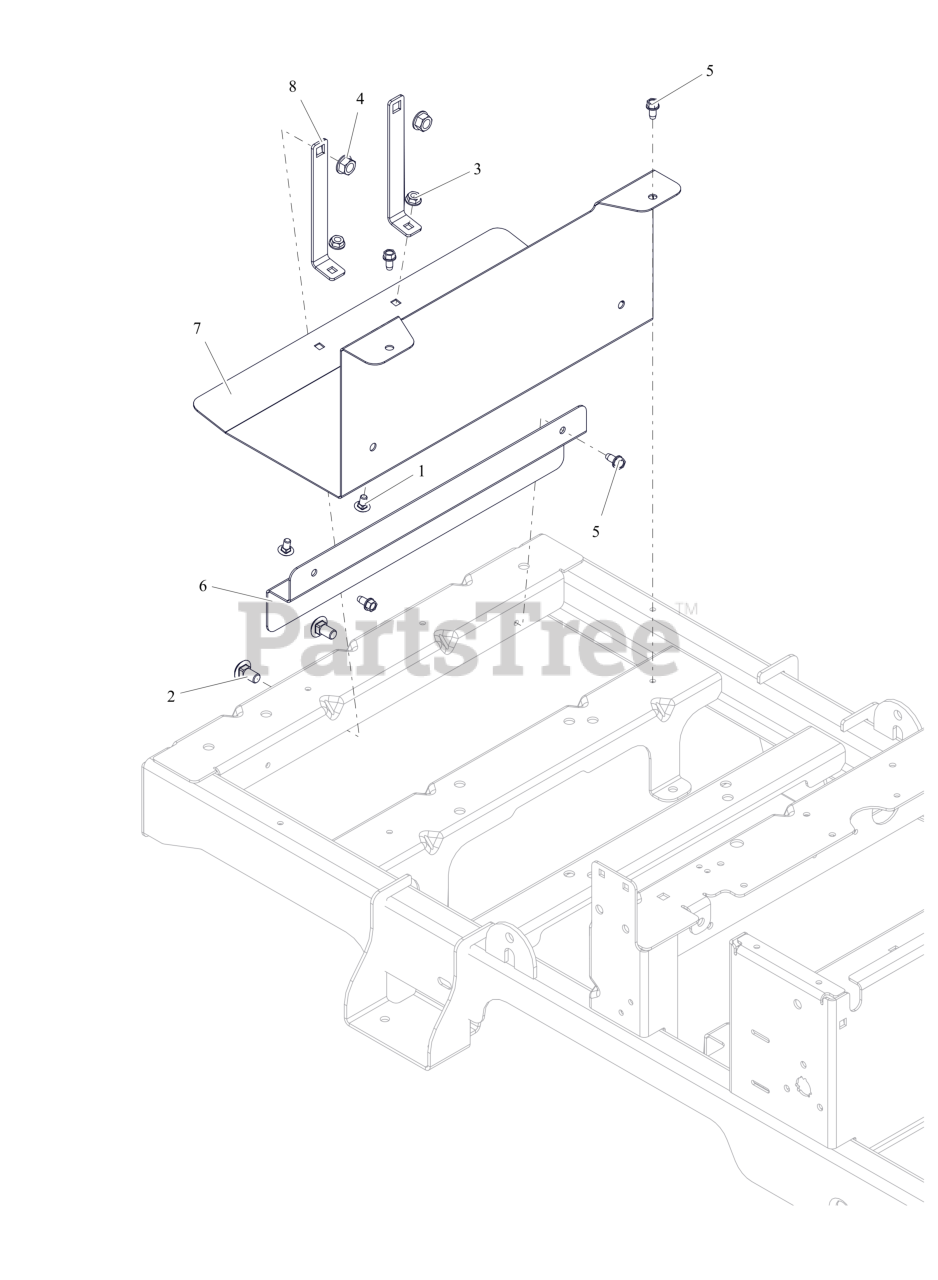

Muffler Guarding Parts Diagram

  • Title
1

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06200312

BLT, RHSN .38-16X.750 G5 ZCC

$1.49

$

In Stock, only 4 left!

0

3

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 303012651

GUARD, EXHAUST EDGE CE (BLACK)

$

$

Currently unavailable

7

Ariens 303012751

SHIELD, MUFFLER ZT EDGE CE (BLACK)

$

$

Currently unavailable

8

Ariens 303012851

STRAP, MUFFLER EDGE CE

$

$

Currently unavailable
