915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Seat and Seat Support Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

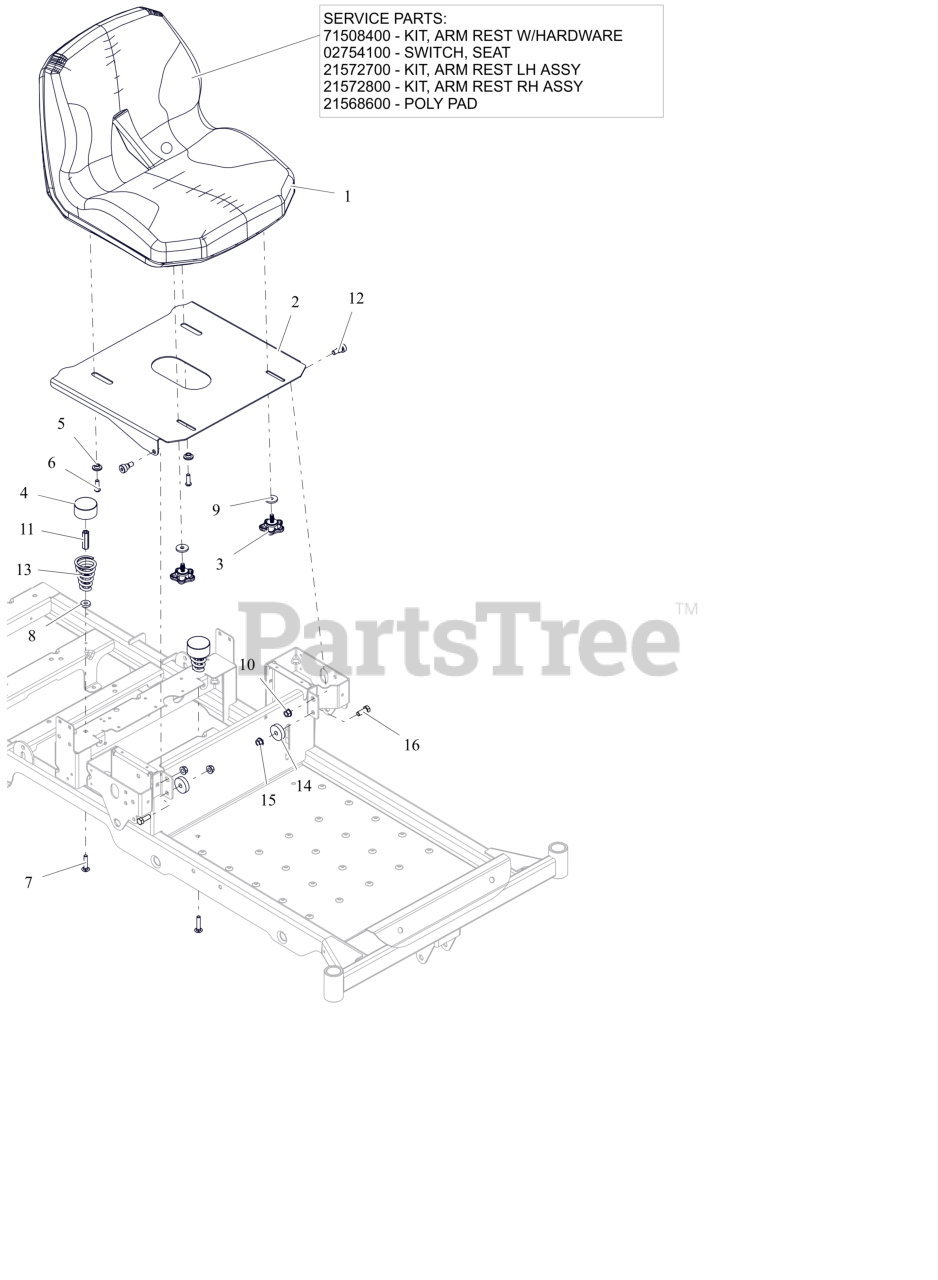

Seat and Seat Support Parts Diagram

  • Title

1

Ariens 05286100

SEAT, EDGE 2020

$258.99

$

Usually ships in 4-12 days

0

1

Ariens 71508400

KIT, ARMREST - EDGE

Note: Optional Accessory

$64.99

$

In Stock, only 1 left!

0

1

Ariens 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.49

$

In Stock, Qty 20+

0

1

Ariens 21572700

KIT, ARM REST LH ASSY - PADDED

Note: Optional Accessory

$

$

Currently unavailable

1

Ariens 21572800

KIT, ARM REST RH ASSY - PADDED

Note: Optional Accessory

$

$

Currently unavailable

1

Ariens 21568600

POLY PAD
(Superseded to 71508400)

Note: Component Service Part

$64.99

$

In Stock, only 1 left!

0

2

Ariens 05289259

PLATE, SEAT (ORANGE)

$56.99

$

Usually ships in 4-12 days

0

3

Ariens 07500226

KNOB, WING STUDDED

$3.49

$

In Stock, only 1 left!

0

4

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

5

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 1 left!

0

6

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 1 left!

0

9

Ariens 06401104

WSHR, FLT .340X1.125X.135 ZCC

$3.99

$

In Stock, only 2 left!

0

10

Ariens 06500822

NUT-LK-TOP-FLG .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$3.99

$

In Stock, only 1 left!

0

12

Ariens 07056500

BLT-SHLDR .38-16X.38 SKH
(Superseded to 07002030)

$5.99

$

In Stock, only 4 left!

0

13

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

14

Ariens 01594000

SPACER, .39 X 1.50 X .380

$3.99

$

In Stock, only 1 left!

0

15

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 05901711

BLT,HEX .38-16X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0
