915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: A0385912 & Above) Discharge Chute -34" Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

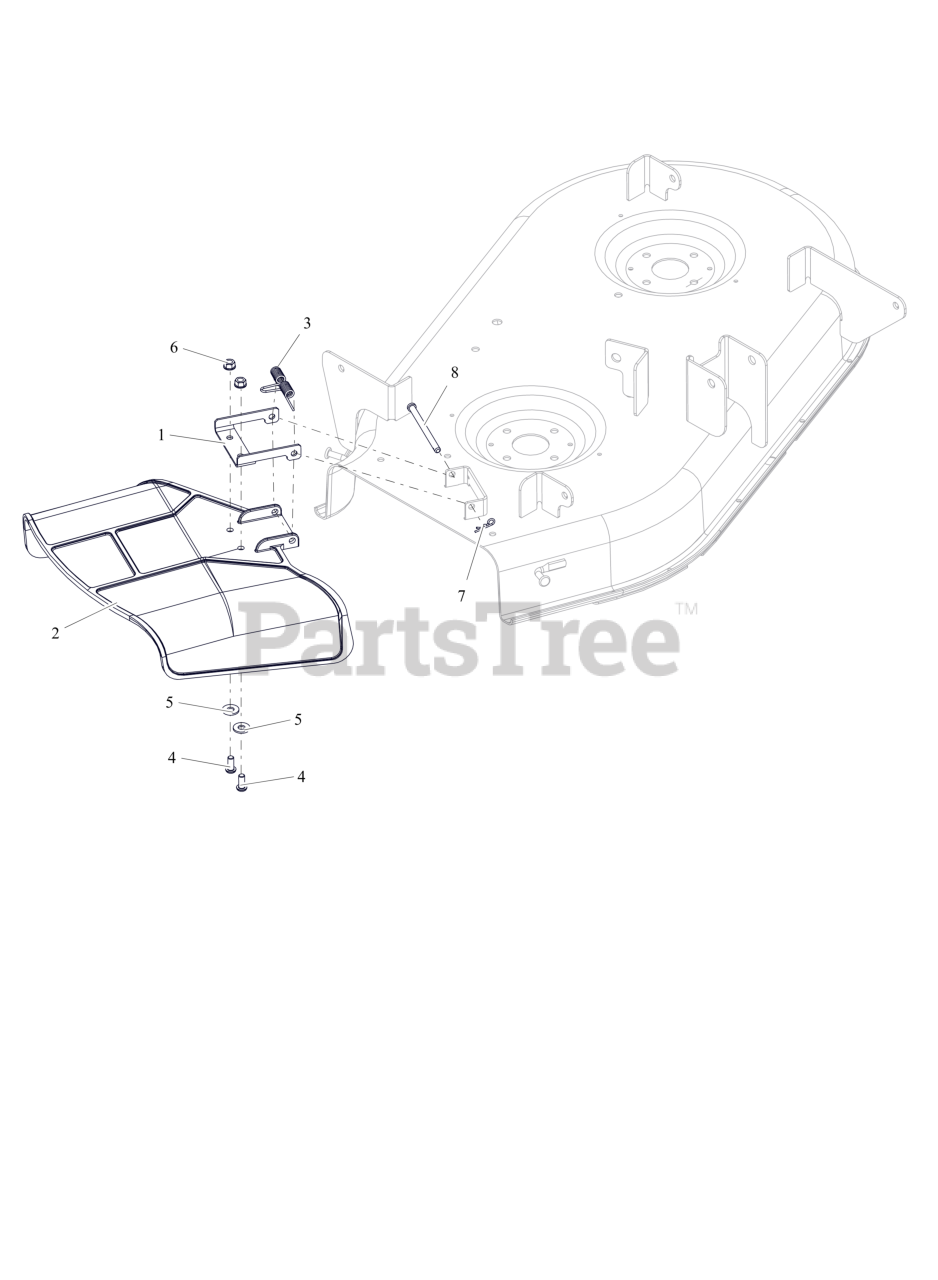

Discharge Chute -34" Parts Diagram

  • Title
1

Ariens 549311159

CHUTE, REINFORCEMENT (ORANGE)

$

$

Currently unavailable

2

Ariens 03994300

CHUTE, SIDE DISCHARGE

$54.99

$

In Stock, only 1 left!

0

3

Ariens 01258100

SPRING, TORSION

$9.49

$

In Stock, Qty 8

0

4

Ariens 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$3.99

$

In Stock, only 2 left!

0

5

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

7

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06800002

PIN, 5/16 X 3.88"

$9.49

$

Usually ships in 4-12 days

0
