915338 - Ariens Edge 34" Zero-Turn Mower, Ariens AX 635cc engine (SN: 000101 - 000999) Front and Rear Wheels - 34" Parts Diagram

Edge 34" Zero-Turn Mower, Ariens AX 635cc engine

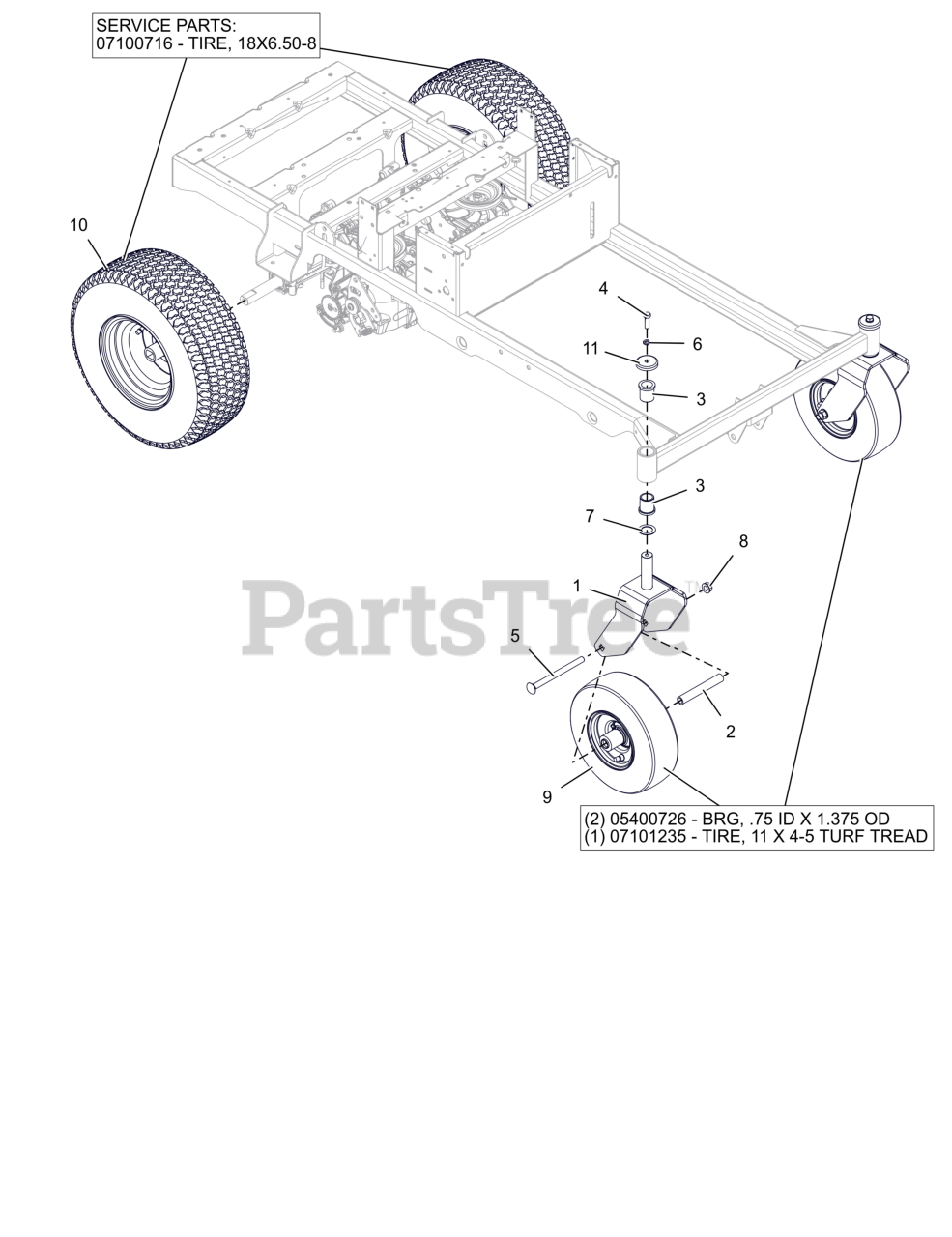

Front and Rear Wheels - 34" Parts Diagram

  • Title

1

Ariens 09695159

WLDMT- CASTER FORK

$79.99

$

Usually ships in 4-12 days

0

2

Ariens 00278500

SPACER, ROLLED WHEEL

$14.99

$

In Stock, Qty 20+

0

3

Ariens 05500934

BSHG-FLG 1.00X1.25X1.50X1.50

$6.99

$

In Stock, Qty 20+

0

4

Ariens 05902203

BLT- HEX .38-16X1.25 G5 ZB500

$2.99

$

In Stock, only 1 left!

0

5

Ariens 06200319

BLT, RHSN .50-13X6.50 G5 ZCC

$11.99

$

In Stock, Qty 19

0

6

Ariens 06300130

WSHR-LK-REG .375X.094 ZB500

$1.49

$

In Stock, only 1 left!

0

7

Ariens 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$2.99

$

In Stock, Qty 20+

0

8

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07101127

ASM, WHL/TIRE 11X4.00-5

$85.99

$

In Stock, Qty 20+

0

9

Ariens 05400726

BRG, .75 ID X 1.375 OD
(Superseded to 07145400)

Note: Component Service Part

$

$

Not available

9

Ariens 07101235

LAWN TIRE FRONT, 11/4-5 TURF TREAD

Note: Component Service Part

$51.99

$

In Stock, Qty 14

0

9

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, only 4 left!

0

9

Ariens 07108600

TIRE TUBE, 11/4.0-5 4 PLY TR87 90 BENT VALVE

Note: Optional Component Service Part

$11.99

$

In Stock, Qty 12

0

10

Ariens 07101129

ASM, WHL/TIRE 18X6.50-8 DHUB

$136.99

$

Usually ships in 4-12 days

0

10

Ariens 07100716

TIRE, 18X6.5-8

Note: Component Service Part

$68.99

$

Usually ships in 4-12 days

0

10

Ariens 07520000

VALVE STEM ASS'Y

Note: Component Service Part

$2.49

$

In Stock, only 4 left!

0

10

Ariens 07108800

TIRE TUBE 18/6.50/8.50/9.50-8, 20/8.00/10.00-8 4 PLY TR13 STRAIGHT VALVE

Note: Optional Component Service Part

$34.99

$

Usually ships in 4-12 days

0

11

Ariens 30146400

SHIELD- AXLE BEARING BLK

$6.99

$

Usually ships in 4-12 days

0
