915336 - Ariens Ikon-XD 42" Zero-Turn Mower, 21.5hp Kawasaki FR (SN: A0379555 & Above) Frame Parts Diagram

Ikon-XD 42" Zero-Turn Mower, 21.5hp Kawasaki FR

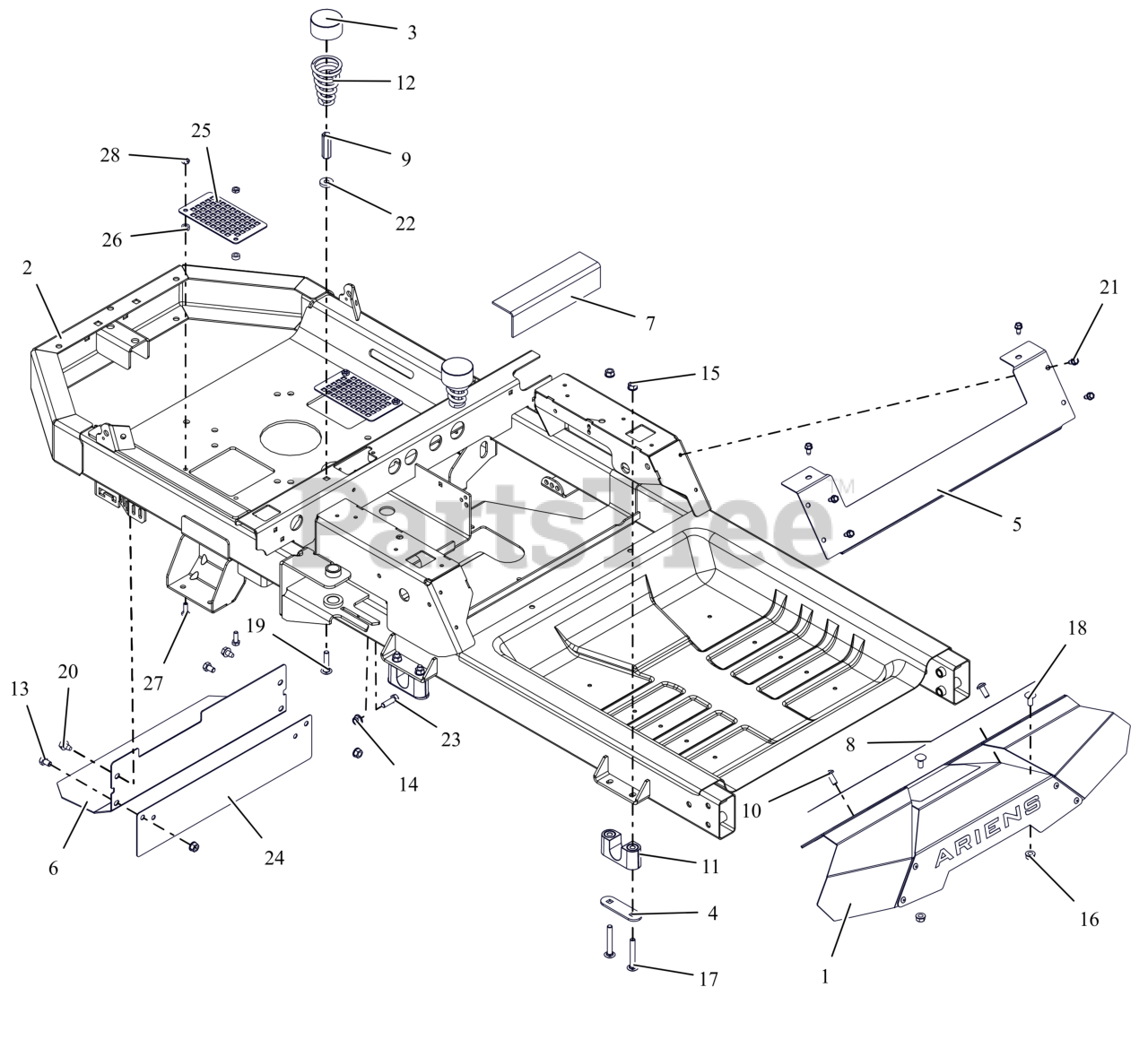

Frame Parts Diagram

  • Title
1

Ariens 51531300

KIT, IKON FOOT REST W/DECAL

$98.99

$

Usually ships in 4-12 days

0

2

Ariens 51535000

WLDMT, FRAME IKON XD/ZTX & XL (ORANGE)

$1128.99

$

Usually ships in 4-12 days

0

3

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

4

Ariens 04766551

PLATE, BEARING SUPPORT

$7.99

$

In Stock, only 1 left!

0

5

Ariens 04772359

PLATE, SEAT KICK

$

$

Not available

6

Ariens 04807951

HEAT, SHIELD

$30.99

$

In Stock, only 1 left!

0

7

Ariens 04864600

PAD, RUBBER-TANK

$

$

Not available

8

Ariens 05112300

GRIP TAPE, FOOT PLATE

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 06500927

NUT, COUPLING .31-18X1.75 ZCC

$3.99

$

In Stock, only 1 left!

0

10

Ariens 07400134

SCR-RDHDSKTAP .31-18X.75 ZCC

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 07500327

BSHG, DECK LIFT PIVOT

$11.99

$

Usually ships in 4-12 days

0

12

Ariens 08300021

SPRING, SEAT

$20.99

$

Usually ships in 4-12 days

0

13

Ariens 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.49

$

In Stock, Qty 13

0

14

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06200311

BLT, RHSSN.31-18X2.25 G5 ZCC

$3.99

$

In Stock, only 2 left!

0

18

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

19

Ariens 06200233

BLT,RHSN .31-18X1.50 G5 ZCC

$1.49

$

In Stock, Qty 19

0

20

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06401103

WSHR, FLT .328X.870X.179 ZCC

$3.49

$

In Stock, only 2 left!

0

23

Ariens 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05091151

GUARD, REAR CLUTCH

$

$

Currently unavailable

25

Ariens 04991100

GUARD, VENT

$

$

Currently unavailable

26

Ariens 05501012

BSHG-SLV .265X.500X.219

$3.99

$

In Stock, Qty 10

0

27

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06500912

NUT-LK-CTR-JAM .250-20 GB ZCC

$2.49

$

Usually ships in 4-12 days

0
