915335 - Ariens Ikon-XD 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0379555 & Above) Deck Lift Parts Diagram

Ikon-XD 52" Zero-Turn Mower, 23hp Kawasaki FR

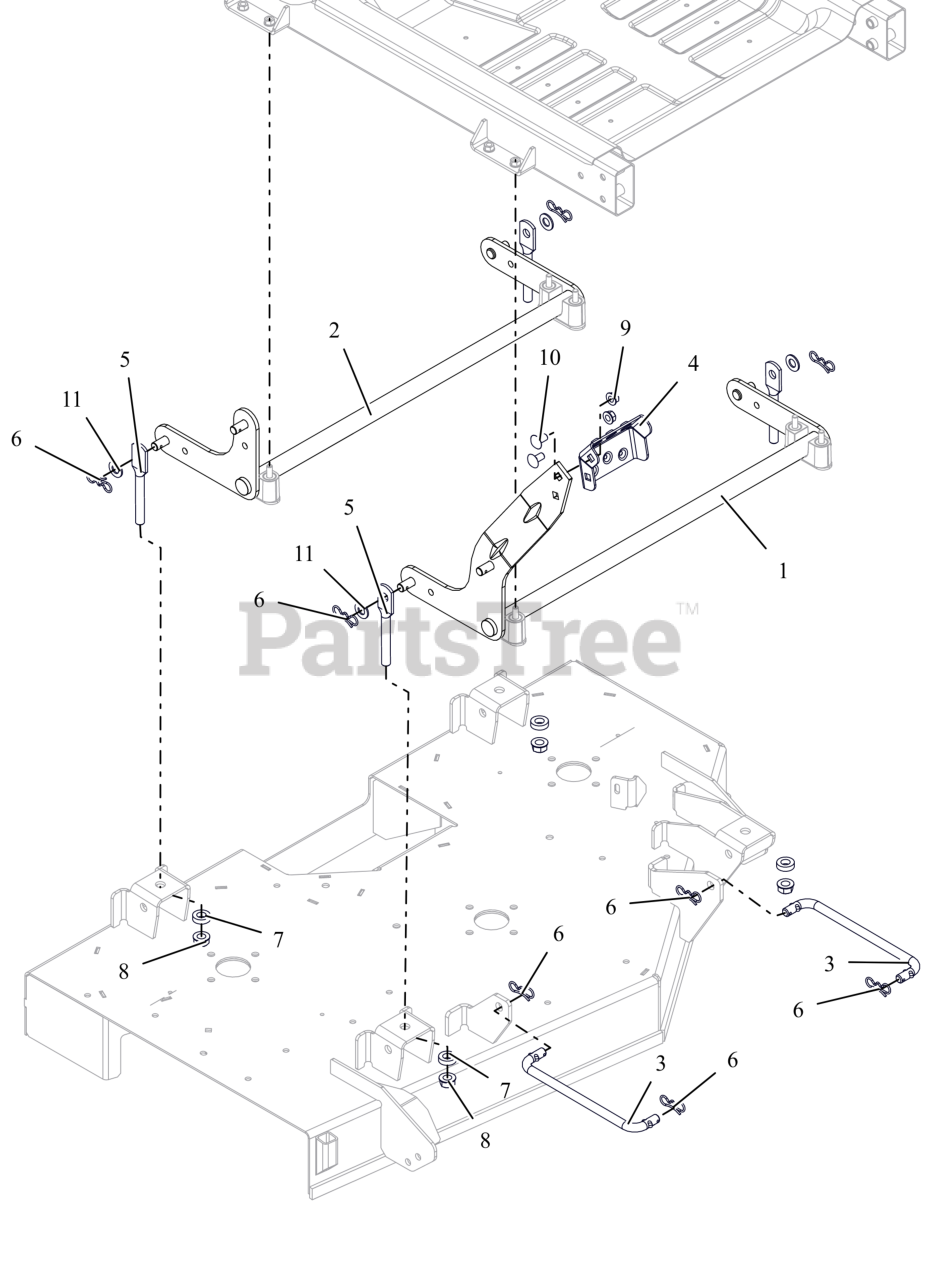

Deck Lift Parts Diagram

  • Title
1

Ariens 05246059

WLDMT, FRONT DECK LIFT PIVOT

$131.99

$

Usually ships in 4-12 days

0

2

Ariens 05246159

WLDMT, REAR DECK PIVOT

$68.99

$

Usually ships in 4-12 days

0

3

Ariens 02004500

LINK, DRAG

$17.99

$

In Stock, only 2 left!

0

4

Ariens 04869259

PEDAL, DECK LIFT (BOLT ON)

$

$

Not available

5

Ariens 05113900

LINK,DECK (HOLE-LONG)

$7.49

$

Usually ships in 4-12 days

0

6

Ariens 06700220

PIN, BOWTIE .091X1.875 ZCC

$1.99

$

In Stock, Qty 20+

0

7

Ariens 07500417

WASHER, RUBBER

$2.49

$

In Stock, Qty 20+

0

8

Ariens 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06200432

BTL,RHSSN .375-16 X 0.75 G5 FPB

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0
