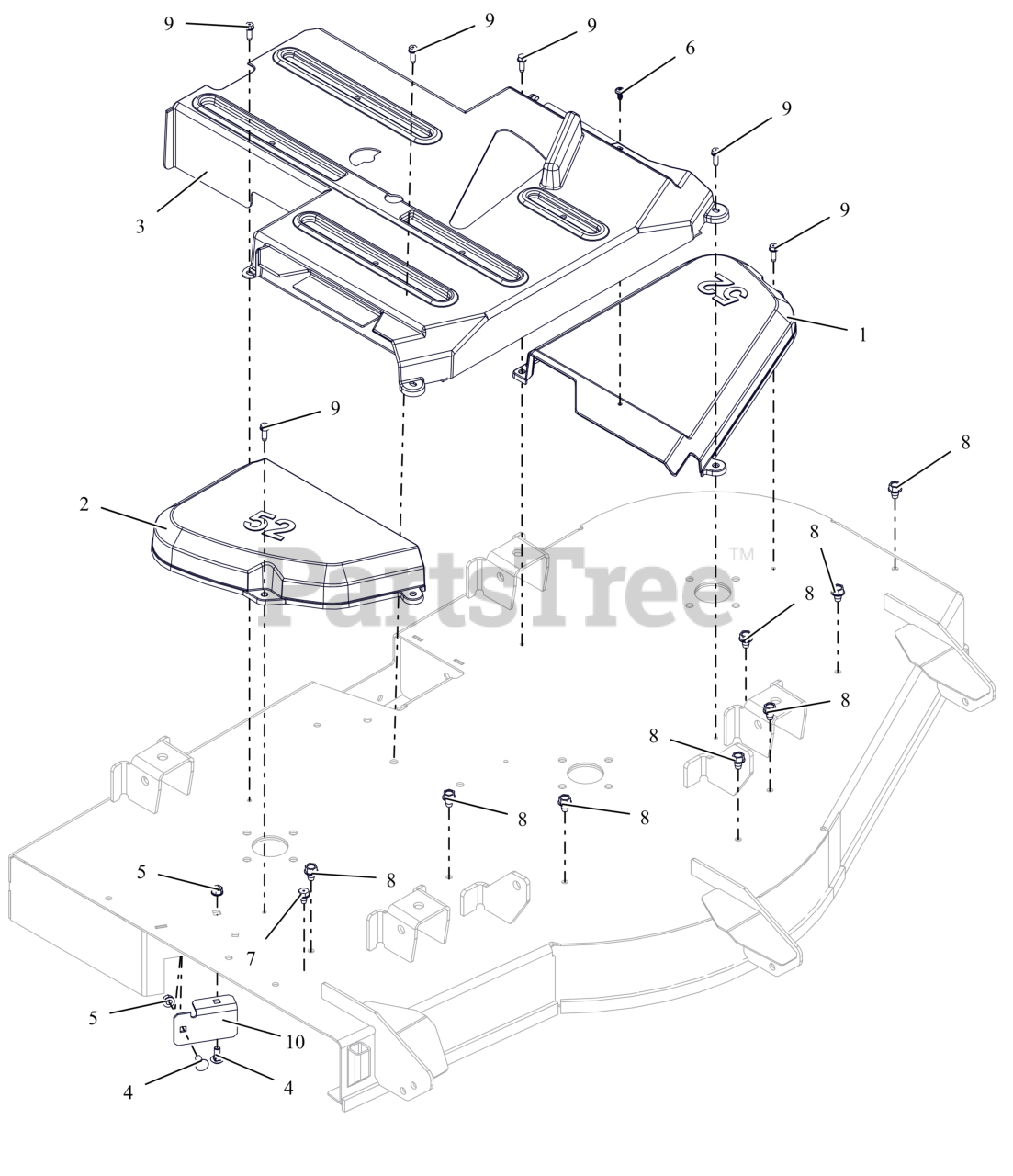

915335 - Ariens Ikon-XD 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: A0379555 & Above) Belt Cover and Deck Guards 52" Parts Diagram

Ikon-XD 52" Zero-Turn Mower, 23hp Kawasaki FR

Belt Cover and Deck Guards 52" Parts Diagram

  • Title
1

Ariens 04792900

COVER, BELT 52" LH

$31.99

$

In Stock, Qty 20+

0

2

Ariens 04793300

COVER, BELT 52" RIGHT

$22.99

$

In Stock, Qty 20+

0

3

Ariens 05157500

GUARD, CENTER, DECK

$

$

Currently unavailable

4

Ariens 06200232

BLT,RHSN .31-18X.75 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

5

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07400123

SCR-PAN .25-15X.50 6L H/LZB500

$2.49

$

In Stock, only 3 left!

0

7

Ariens 07400124

SCR,TAP .312-18X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400126

SCR,TAP .375-16X.50 HWH TR ZCC

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07400131

SCR,TAP .25-20X.75 HWH TR ZCC

$1.49

$

In Stock, Qty 6

0

10

Ariens 547279600

STRIP, DEFLECTOR 52" (ORANGE)

$

$

Currently unavailable
