915332 - Ariens Ikon-X 52" Zero-Turn Mower, Kawasaki FR (SN: 045000 - 074999) Rear Tires and Transaxles Parts Diagram

Ikon-X 52" Zero-Turn Mower, Kawasaki FR

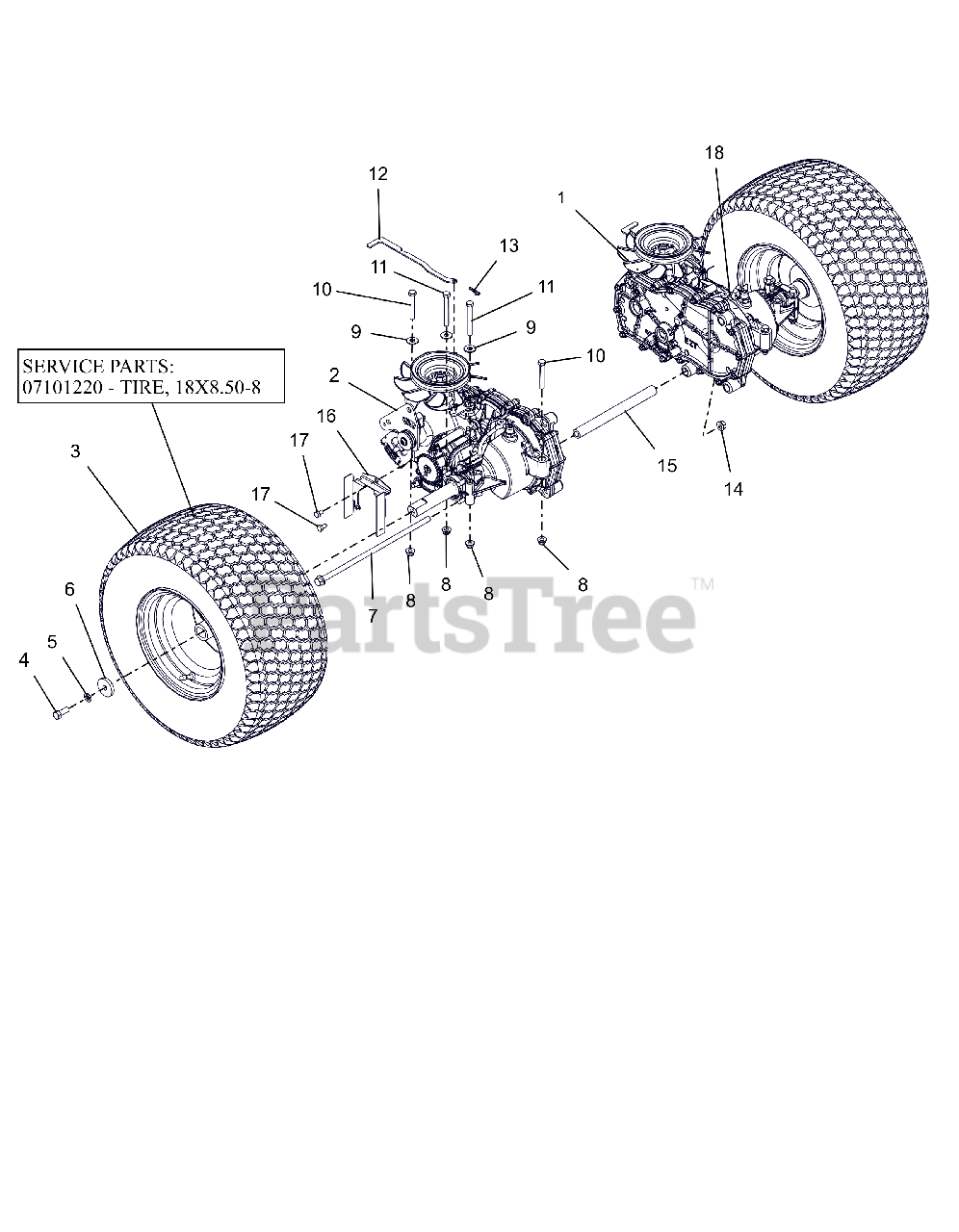

Rear Tires and Transaxles Parts Diagram

  • Title

1

Ariens 05172700

TRANSAXLE EZT D-SHFT SHORT

$1112.99

$

Usually ships in 4-12 days

0

2

Ariens 05172800

TRANSAXLE EZT D-SHFT SHORT

$1112.99

$

Usually ships in 4-12 days

0

3

Ariens 07101130

ASM, WHL/TIRE 18X8.50-8 DHUB

$159.99

$

In Stock, only 1 left!

0

3

Ariens 07101220

TIRE, 18X8.50-8

Note: SERVICE PART

$113.99

$

In Stock, only 1 left!

0

4

Ariens 05901721

BLT, HEX .38-16X1.00 G8ZCCEP30

$1.99

$

In Stock, Qty 20+

0

5

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06401110

WSHR, FLT .406X1.50X.245 ZCC

$3.99

$

In Stock, Qty 20+

0

7

Ariens 05901902

BLT,HEX-FLG .38-16X11.5 G5 ZCC

$11.99

$

In Stock, only 1 left!

0

8

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05901806

BLT, HEX .31-18X2.25 G5 ZCC

$1.49

$

In Stock, Qty 20+

0

11

Ariens 05901807

BLT, HEX .31-18X2.75 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

12

Ariens 04884151

BRKT, DUMP VALVE

$14.99

$

In Stock, only 1 left!

0

13

Ariens 06700222

PIN, HAIR #213 .08X1.19 ZCC

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 20+

0

15

Ariens 05162451

TUBE, TRANSAXLE BRACE 8.18LG

$19.99

$

In Stock, only 1 left!

0

16

Ariens 05091270

GUARD, PARKING ,BREAK RH (GREY PEARL)

$

$

Currently unavailable

17

Ariens 05901705

BLT,HEX .25-20X.50 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05092570

GUARD, PARKING BRAKE LH (GREY PEARL)

$

$

Currently unavailable
