915331 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 075000 - 079999) Engine - Kawasaki FR651 - 42" Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

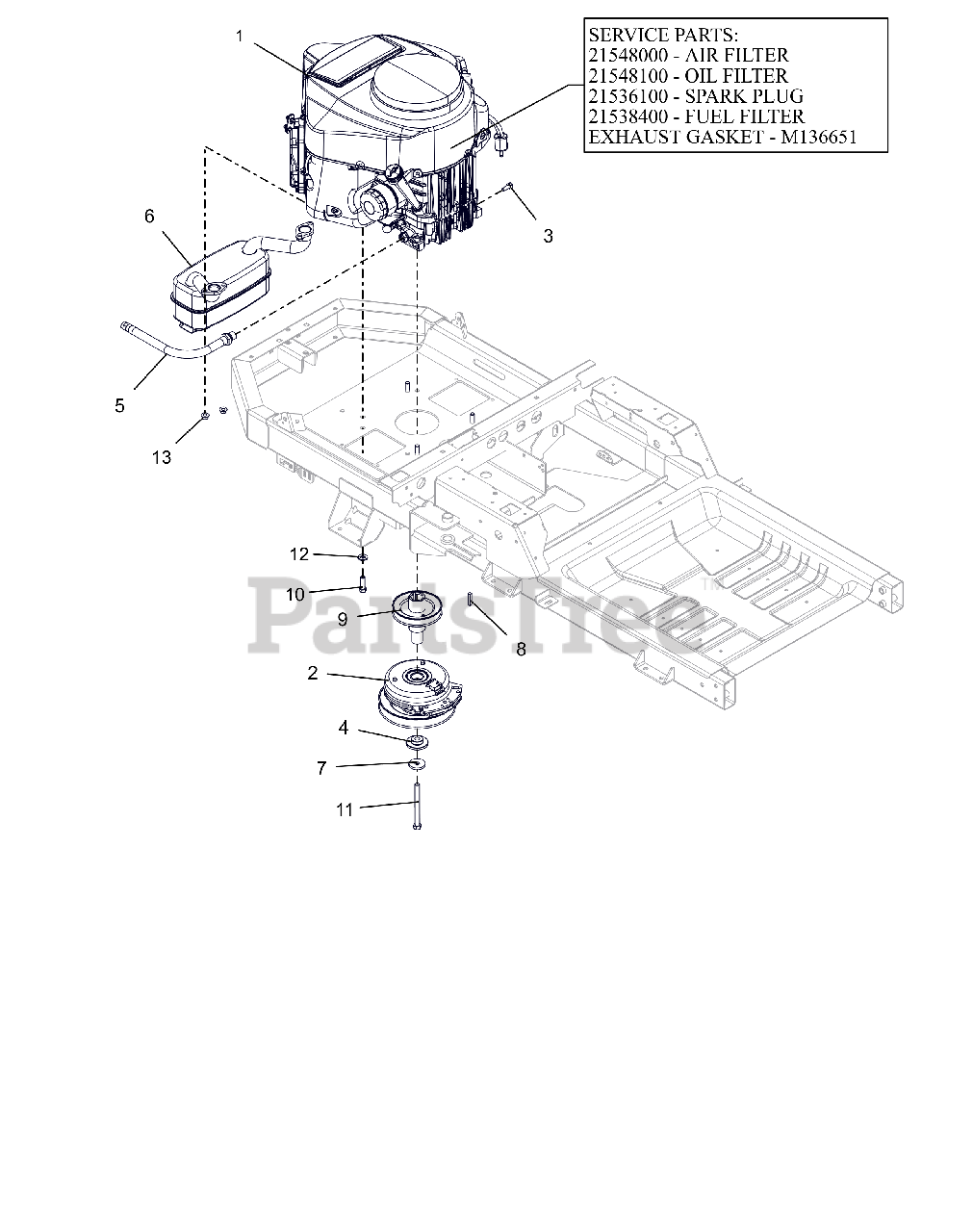

Engine - Kawasaki FR651 - 42" Parts Diagram

  • Title

1

Ariens 08201132

ENGINE, KAWASAKI FR651V 22HP

$

$

Not available

1

Ariens 21548000

AIR FILTER, KAWASAKI FR

Note: SERVICE PART

$17.99

$

In Stock, Qty 20+

0

1

Ariens 21548100

OIL FILTER, KAWASAKI FR
(Superseded to 49065-0721)

Note: SERVICE PART

$18.99

$

In Stock, Qty 20+

0

1

Ariens 21536100

PLUG, SPARK

Note: SERVICE PART

$3.99

$

In Stock, Qty 20+

0

1

Ariens 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: SERVICE PART

$

$

Not available

1

Ariens M136651

GASKET, MUFFLER #
(Superseded to 00191627)

Note: SERVICE PART

$7.99

$

In Stock, only 2 left!

0

2

Ariens 04678300

CLUTCH,105FTLB MONOPOLE 6.83"

$258.99

$

In Stock, only 4 left!

0

3

Ariens 05901628

BLT, HEX M8-1.25X20 G8.8 ZCC

$

$

Not available

4

Ariens 05501206

BSHG-FLG .469X1.06X.574X2.0

$19.99

$

In Stock, only 1 left!

0

5

Ariens 07001730

HOSE, OIL DRAIN

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 05088300

MUFFLER - KAWASAKI

$102.99

$

Usually ships in 4-12 days

0

7

Ariens 06400936

WASHER, 7/16" SPRING DISK

$11.99

$

In Stock, only 1 left!

0

8

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

9

Ariens 07345100

WLDMT, DRIVE SHEAVE-X

$

$

Not available

10

Ariens 05901808

BLT, HEX .38-16X1.25 G5 ZCC NT

$1.99

$

In Stock, Qty 11

0

11

Ariens 05901820

BLT, HEX .44-20X4.50 G8 ZCC NT

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 06400927

WASHER, 3/8" SPRING DISC

$3.49

$

In Stock, only 2 left!

0

13

Ariens 06500919

NUT-LK-TOP-FLG M8 ZCC

$2.49

$

In Stock, Qty 18

0
