915331 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 030000 - 034999) Bumper Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

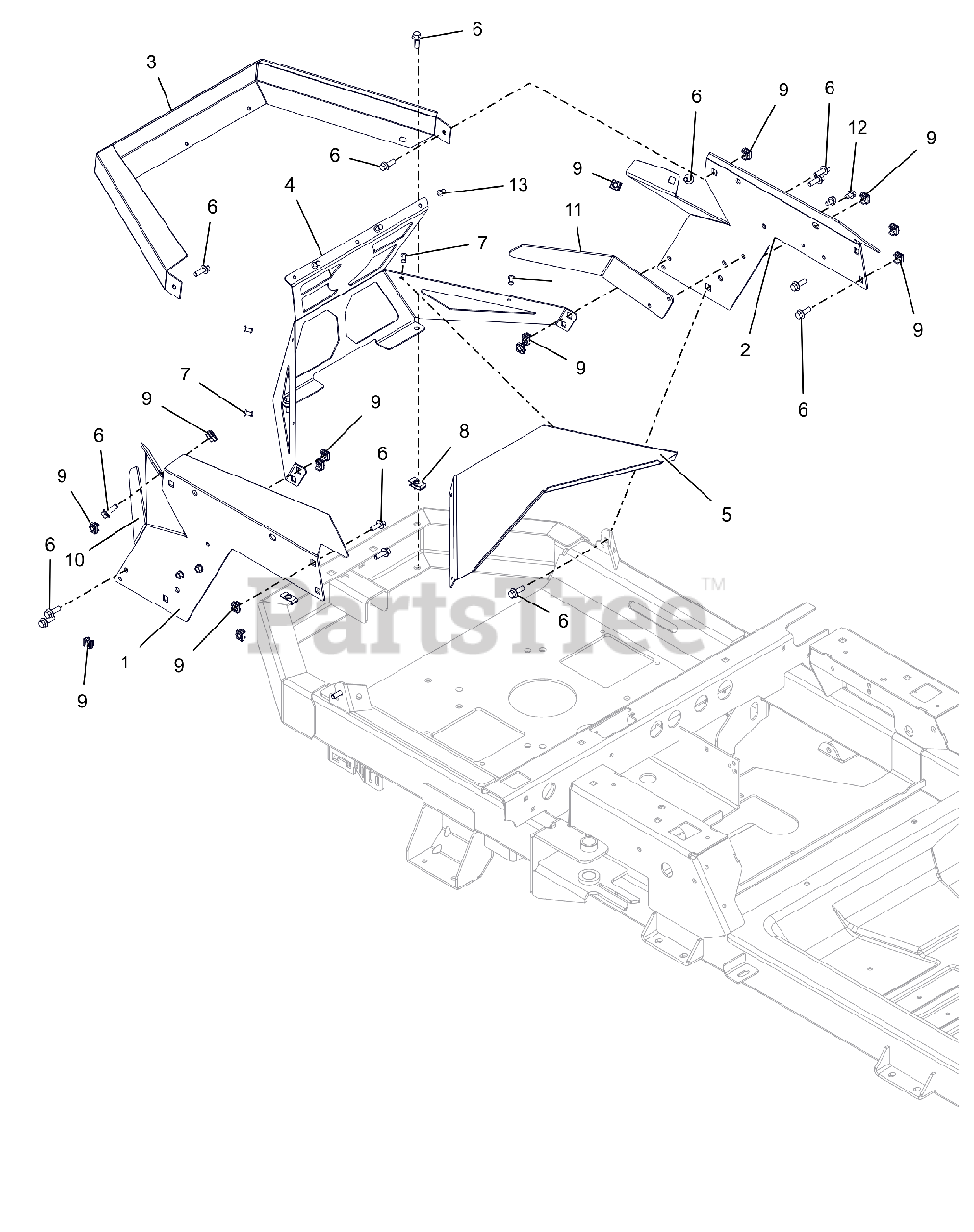

Bumper Parts Diagram

  • Title

1

Ariens 05081059

PANEL, RIGHT REAR FENDER MOUNT

$60.99

$

Usually ships in 4-12 days

0

2

Ariens 05081159

PANEL, LEFT REAR FENDER MOUNT

$66.99

$

Usually ships in 4-12 days

0

3

Ariens 05081259

GUARD, ENGINE WRAP

$85.99

$

Usually ships in 4-12 days

0

4

Ariens 05081351

GUARD, ENGINE

$74.99

$

Usually ships in 4-12 days

0

5

Ariens 05127051

BAFFLE,ENGINE WRAP

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$

$

Not available

7

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

9

Ariens 07009300

NUT RETNR .25-20

$

$

Not available

10

Ariens 05160951

SHIELD, RH, ENGINE GUARD VALVE

$

$

Currently unavailable

11

Ariens 05161051

SHIELD, LH, ENGINE GUARD VALVE

$

$

Not available

12

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06800107

RIVET, #66 STEEL POP PD BLACK

$

$

Not available
