915331 - Ariens Ikon-X 42" Zero-Turn Mower, Kawasaki FR (SN: 000101 - 029999) Rear Tires And Transaxles Parts Diagram

Ikon-X 42" Zero-Turn Mower, Kawasaki FR

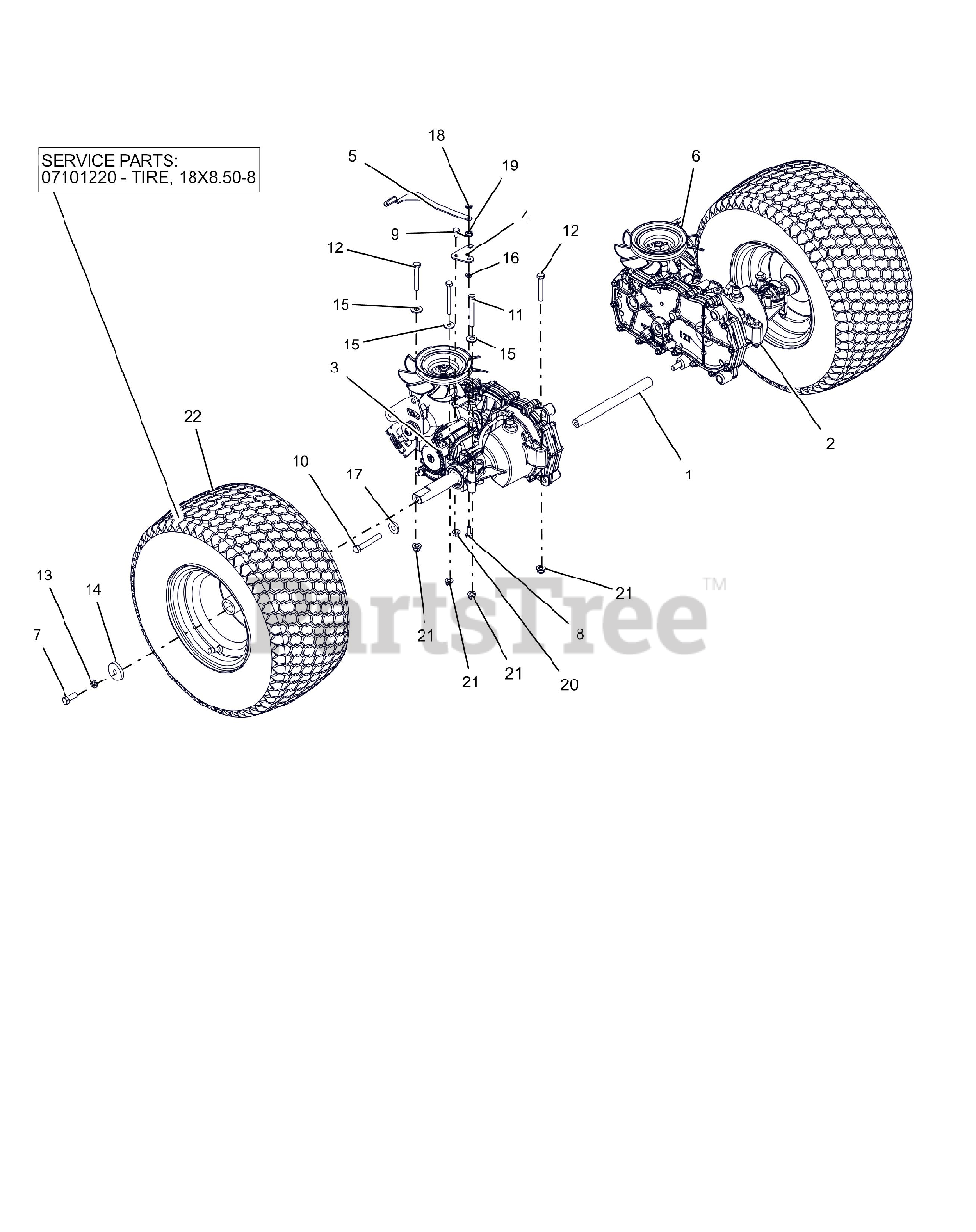

Rear Tires And Transaxles Parts Diagram

  • Title
1

Ariens 04788951

ROD, TRANSAXLE BRACE

$34.99

$

Usually ships in 4-12 days

0

2

Ariens 04794700

TRANSAXLE,LH EZT D-SHFT SHORT
(Superseded to 51532900)

$775.99

$

Usually ships in 4-12 days

0

3

Ariens 04794800

TRANSAXLE,RH EZT D-SHFT SHORT
(Superseded to 51533000)

$775.99

$

Usually ships in 4-12 days

0

4

Ariens 04806851

BRKT, DUMP VALVE EXTENSION

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 04808551

BRKT, DUMP VALVE RH

$27.99

$

In Stock, only 3 left!

0

6

Ariens 04808651

BRKT, DUMP VALVE LH

$27.99

$

Usually ships in 4-12 days

0

7

Ariens 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

8

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06439500

WSHR-FL-STL .265X.50X.087YWZC
(Superseded to 06401120)

$1.49

$

Usually ships in 4-12 days

0

17

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

18

Ariens 06500635

NUT-LK-CTR JAM .25-20 YWZC
(Superseded to 06500912)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07101130

ASM, WHL/TIRE 18X8.50-8 DHUB

$159.99

$

In Stock, only 1 left!

0

22

Ariens 07101220

LAWN TIRE REAR, 4 PLY K500 18/8.50-8

$113.99

$

In Stock, only 1 left!

0
