915330 - Ariens Ikon-X 52" Zero-Turn Mower, 23hp Kawasaki (SN: 016000 & Above) Deck Lift Parts Diagram

Ikon-X 52" Zero-Turn Mower, 23hp Kawasaki

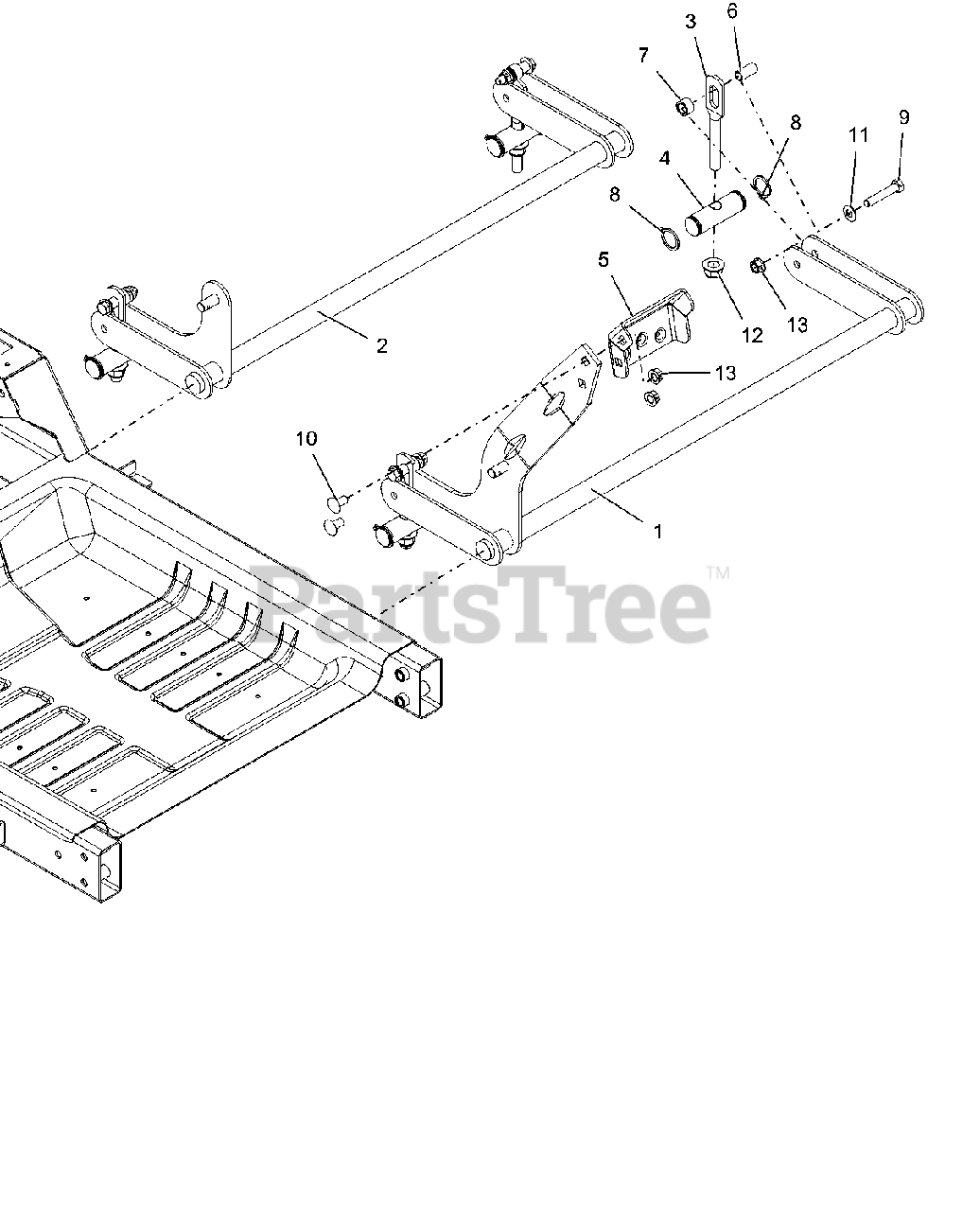

Deck Lift Parts Diagram

  • Title

1

Ariens 04778251

WLDMT, FRONT DECK PIVOT
(Superseded to 05246051)

$131.99

$

Usually ships in 4-12 days

0

2

Ariens 04778351

WLDMT, REAR DECK PIVOT

$123.99

$

Usually ships in 4-12 days

0

3

Ariens 04778400

LINK, DECK

$

$

Not available

4

Ariens 04812800

SHAFT, DECK LINK PIVOT

$33.99

$

Usually ships in 4-12 days

0

5

Ariens 04869251

PEDAL, DECK LIFT (BOLT ON)

$18.99

$

Usually ships in 4-12 days

0

6

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

7

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05707300

RG-RTNG-EXT 1.00X.078

$2.99

$

In Stock, Qty 9

0

9

Ariens 05963100

BLT-HEX .38-16X2.00 GR8 YWZC
(Superseded to 05901810)

$2.99

$

In Stock, only 1 left!

0

10

Ariens 06200225

BLT,RHSN .38-16X.75 G5 BFP
(Superseded to 06200432)

$3.99

$

In Stock, only 1 left!

0

11

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0
