915329 - Ariens Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki (SN: 016000 & Above) Parking Brake Parts Diagram

Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki

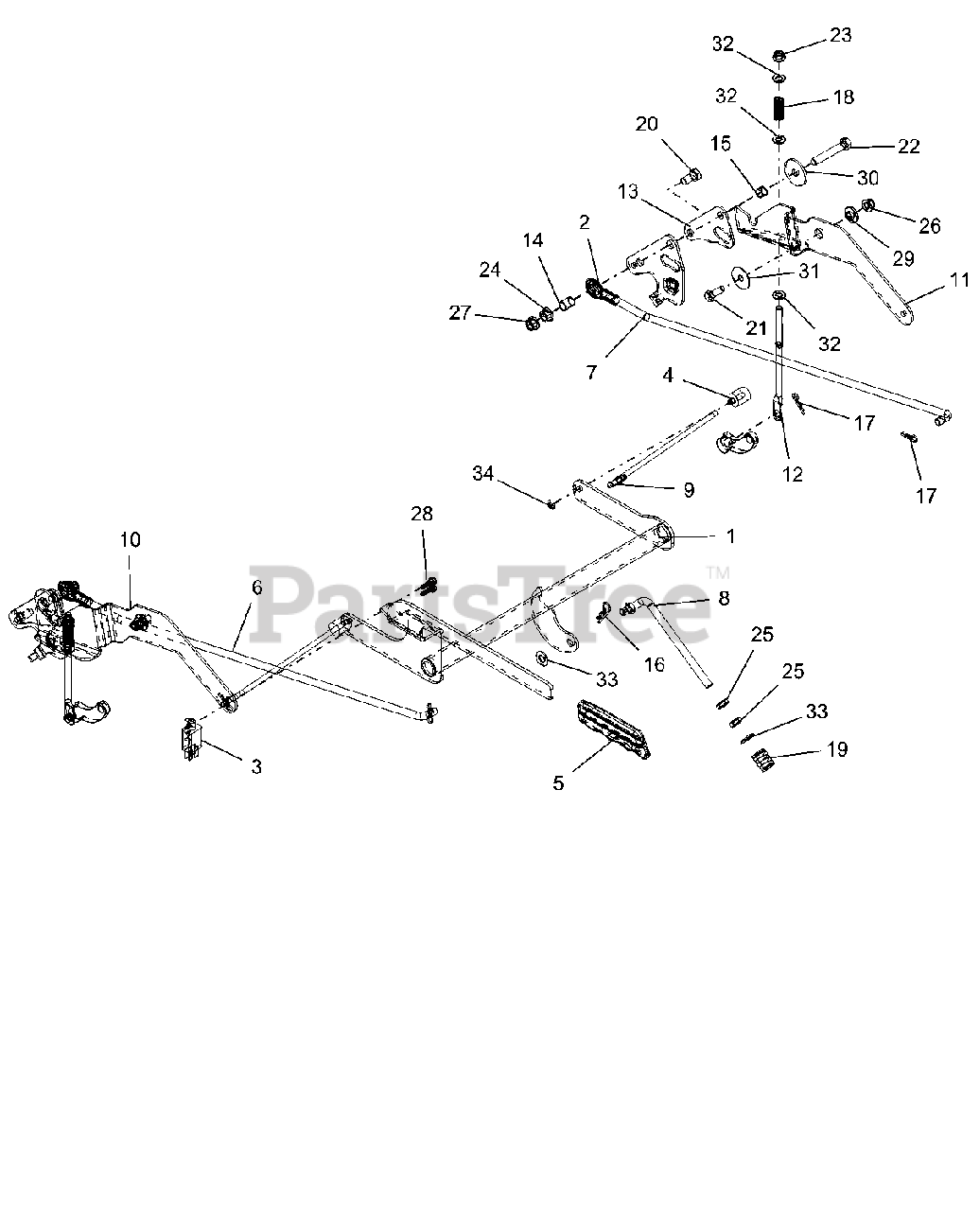

Parking Brake Parts Diagram

  • Title

1

Ariens 04787851

WLDMT, BRAKE LEVER

$46.99

$

Usually ships in 4-12 days

0

2

Ariens 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

3

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

Usually ships in 4-12 days

0

4

Ariens 03764800

TRUNION, 1/4-20

$13.99

$

In Stock, Qty 20+

0

5

Ariens 03826900

GRIP, PARKING BRAKE (YELLOW)

$3.99

$

In Stock, only 1 left!

0

6

Ariens 04778700

STEERING, LINKAGE RH

$28.99

$

Usually ships in 4-12 days

0

7

Ariens 04778800

STEERING, LINKAGE LH

$

$

Not available

8

Ariens 04787900

LINK, OVER CENTER, PARKING BRK

$20.99

$

Usually ships in 4-12 days

0

9

Ariens 04788000

LINK, BRAKE ARM

$

$

Not available

10

Ariens 04788151

INTERLOCK, RH BRAKE LINK
(Superseded to 04788100)

$23.99

$

Usually ships in 4-12 days

0

11

Ariens 04790451

INTERLOCK, LH BRAKE LINK
(Superseded to 04790400)

$22.99

$

Usually ships in 4-12 days

0

12

Ariens 04790600

LINK, BRAKE COG

$12.99

$

In Stock, Qty 20+

0

13

Ariens 04799351

PLATE, TRANSAXLE ADAPTOR

$6.99

$

Usually ships in 4-12 days

0

14

Ariens 05501226

SPCR, SLV .385X.500X.652

$3.49

$

In Stock, only 2 left!

0

15

Ariens 05501235

SPCR, SLV .385X.500X.350

$1.49

$

In Stock, Qty 11

0

16

Ariens 06700002

PIN-HAIR CTR .09 X 1.50 YWZC
(Superseded to 06700219)

$2.99

$

In Stock, Qty 9

0

17

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 08300028

SPRING, COMPRESSION

$4.99

$

In Stock, Qty 7

0

19

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 20+

0

20

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05947800

BOLT-HEX.31-18X.875 YWZC GR5
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

22

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

23

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06100216

SCR-TAP #12X.75 BOSS INDHXHD
(Superseded to 06100232)

$

$

Not available

29

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

30

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 10

0

31

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

32

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 05700125

RG-RTNG-EXT .250X.025

$0.99

$

In Stock, Qty 20+

0
