915329 - Ariens Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki (SN: 016000 & Above) Idlers And Sheaves - 42" Parts Diagram

Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki

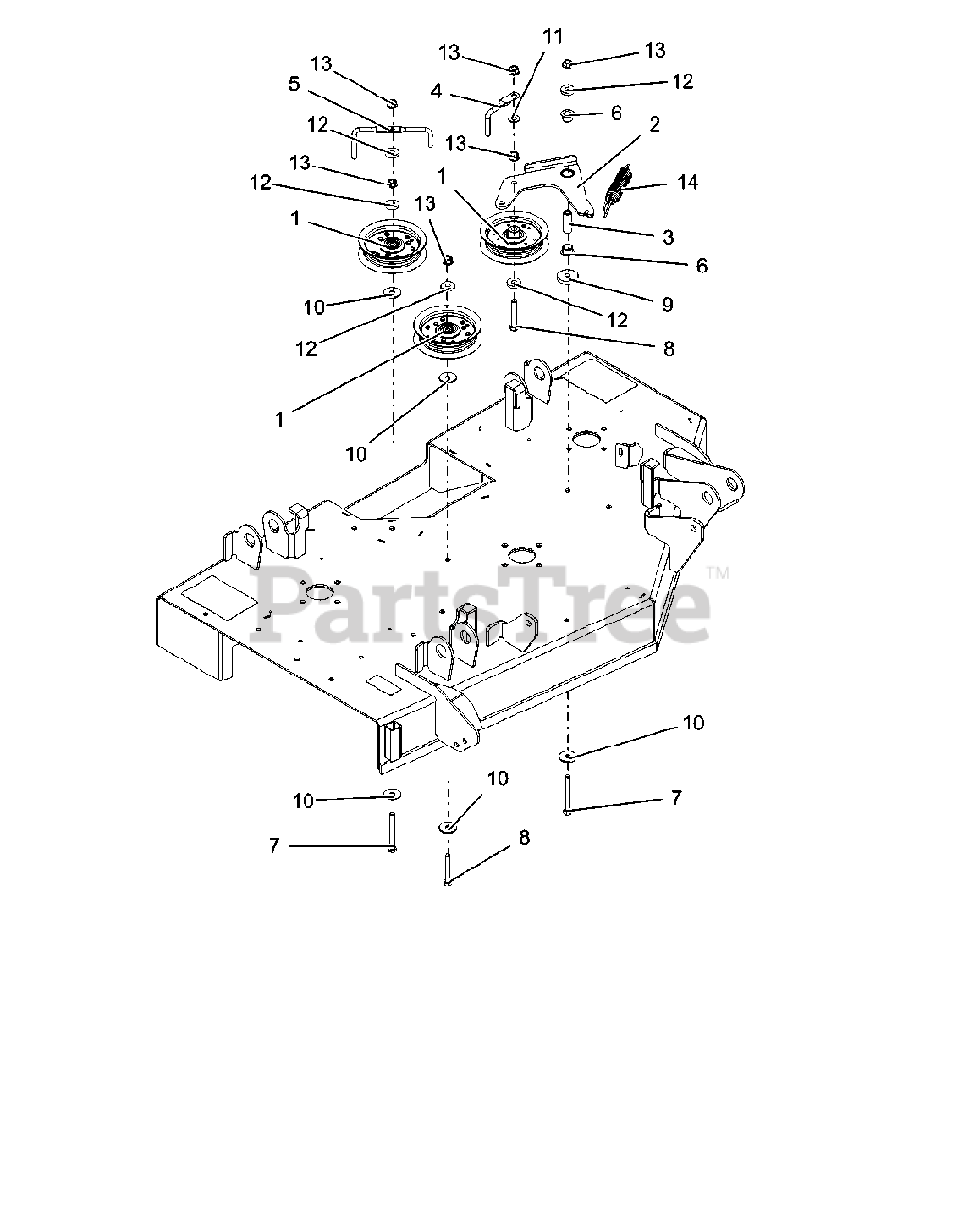

Idlers And Sheaves - 42" Parts Diagram

  • Title

1

Ariens 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

2

Ariens 04773359

WLDMT, IDLER ARM-42"

$37.99

$

Usually ships in 4-12 days

0

3

Ariens 03763400

SPACER, .375IDX.625ODX1.66 PM

$3.99

$

In Stock, Qty 20+

0

4

Ariens 03828859

WIREFORM, BELT FINGER
(Superseded to 03828800)

$9.49

$

In Stock, only 1 left!

0

5

Ariens 03974159

WIREFORM, BELT FINGER
(Superseded to 03974100)

$

$

Not available

6

Ariens 05500907

BSHG-FLG, .625X.750X.500X1.00

$5.99

$

In Stock, Qty 20+

0

7

Ariens 05958300

BLT-HEX .38-16X3.00 GR5 FTH YZ
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

8

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

10

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 08320300

SG-TENS .135X.98X6.0 WLD 62

$17.99

$

In Stock, Qty 20+

0
