915329 - Ariens Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki (SN: 016000 & Above) Fuel System Parts Diagram

Ikon-X 42" Zero-Turn Mower, 21.5hp Kawasaki

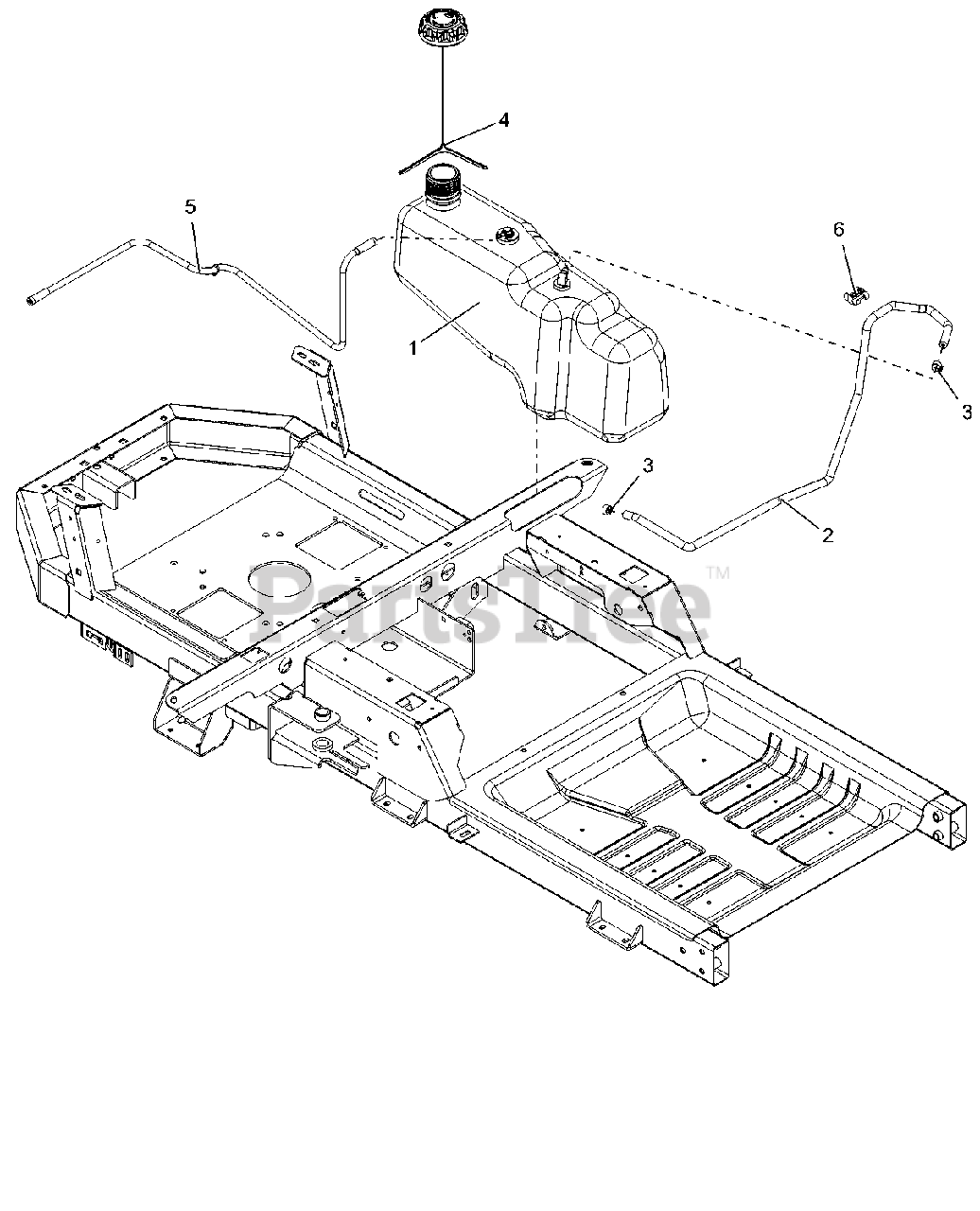

Fuel System Parts Diagram

  • Title
1

Ariens 04751200

ASM,TANK NON-PERM FUEL
(Superseded to 05244600)

$176.99

$

In Stock, only 1 left!

0

2

Ariens 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

4

Ariens 04589200

CAP, FUEL VENT-IN 2.25" RATCH.
(Superseded to 09190200)

$18.99

$

In Stock, Qty 20+

0

5

Ariens 04972100

LINE, FUEL VENT KAWI

$

$

Not available

6

Ariens 07001712

CLIP, T, .38-.50

$

$

Not available
